The insulation parts are made of engineering plastic which has excellent insulation and mechanical strength. They can bear high temperature up to 120ºC
It has good conductive performance. Its voltage drops can′t exceed 3.2mV when contacting. When it is disconnected, it can keep and limit space. It is visible, safe and reliable.
It can be fastened on a mouning plate(such as iron plates)with a thickness≥1mm. It can be used to switch on and off the circuit (50 or 60Hz,600VAC or 440V, 24ADC)in relay protection panels or control cabinet etc.
Product Categories
Key advantages of the Panel Connection Piece include:
- Robust Durability: Constructed with high-strength materials to withstand vibrations, thermal stress, and long-term use in panel environments.
- Streamlined Installation: Enables quick, tool‑free or simplified assembly, reducing wiring time and labor in control panels.
- Secure Connection: Ensures stable, low‑resistance contact, preventing loosening under vibration and maintaining circuit reliability.
- Space‑Saving Design: Compact form factor allows efficient use of panel space, supporting clean and organized cabinet layouts.
- Enhanced Safety: Often features insulated housings and touch‑safe designs to protect against accidental contact and short circuits.
- Versatile Compatibility: Designed to work with common panel wiring standards, cables, and adjacent components for easy integration.
- Maintenance‑Friendly: Allows for easy inspection, testing, and replacement without major panel disassembly.
New products

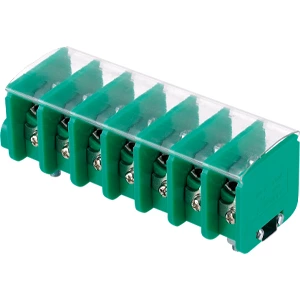

MJ5 Terminal Block
Main features
- Thickness/Height/Width mm : According to customer reauirements/45/49.5,
Your Advantages
- Feather-light plugging and superior handling comfort with a factory-pretensioned contact spring
- Wiring of all conductor types, whether rigid or flexible, even without ferrules
- Clear identification of the conductor connection (visual and acoustic)
- Easy release of the conductors and pretensioning of the contact spring using the orange actuating push button
- Optimized for manual and automated wiring

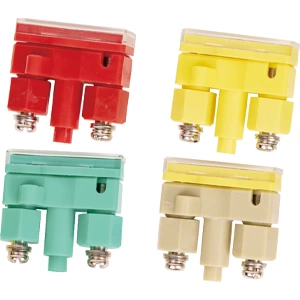

JL2-2
Main features
- Number of packages : 20,
- Thickness/Width/Height/Height after installation: mm : 23/36.5/37/17.5,
- Rated voltage/Rated current/Rated cross-section : 660 V/15 A/2.5 mm²,
- Hole spacing size/opening size : 25/2-Ф10,
- Screw : M4,
- Tightening torque(Nm) : 1.2,
Your Advantages
- Feather-light plugging and superior handling comfort with a factory-pretensioned contact spring
- Wiring of all conductor types, whether rigid or flexible, even without ferrules
- Clear identification of the conductor connection (visual and acoustic)
- Easy release of the conductors and pretensioning of the contact spring using the orange actuating push button
- Optimized for manual and automated wiring
JL1-2.5/3A
Main features
- Number of packages : 20,
- Thickness/Width/Height/Height after installation: mm : 43/48/62/35,
- Rated voltage/Rated current/Rated cross-section : 660V/24A/2.5 mm²,
- Hole spacing size/opening size : 35x35x35(Equilateral △)/3-Ф10,
- Screw : M4,
- Tightening torque(Nm) : 1.2,
- Material : PC,
- Flame retardant rating UL-94 : V2,
Your Advantages
- Feather-light plugging and superior handling comfort with a factory-pretensioned contact spring
- Wiring of all conductor types, whether rigid or flexible, even without ferrules
- Clear identification of the conductor connection (visual and acoustic)
- Easy release of the conductors and pretensioning of the contact spring using the orange actuating push button
- Optimized for manual and automated wiring
