Premoulded Cable Accessories MV
Separable Cable Accessories – Reliable, Safe and Flexible Solutions for Modern Power Networks
Separable Cable Accessories are essential connection components designed to provide safe, reliable, and fully insulated interfaces for medium-voltage (MV) and high-voltage (HV) power systems. Engineered for switchgear, transformers, RMUs, and distribution networks, these accessories ensure stable electrical performance even under harsh operational conditions.
Our separable connectors are manufactured using high-quality EPDM or silicone rubber, offering excellent electrical insulation, hydrophobicity, and long-term resistance to moisture, UV exposure, and environmental stress. Each product is designed to deliver consistent dielectric strength, superior mechanical durability, and simplified installation with standard cold-shrink or plug-in technology.
Product Categories
We provide a range of solutions, including:
- Separable Connectors for Interface Type C Bushings (EN50180 / EN50181)
- Screened PT Connection Kit
- Extension Busbar Connectors
- Insulation Cap and Stress Control Accessories
- Screened Surge Arresters
Built to meet global standards such as IEC 60840 and IEC 60502-4 requirements, our separable cable accessories ensure safe energization, reduced maintenance, and long service life. They are widely used in utility grids, renewable energy projects, industrial facilities, underground distribution systems, and compact substations.
With excellent connectivity stability, strong sealing performance, and optimized stress control designs, these accessories help minimize partial discharge, prevent insulation failure, and improve the overall reliability of your power distribution network.
New products

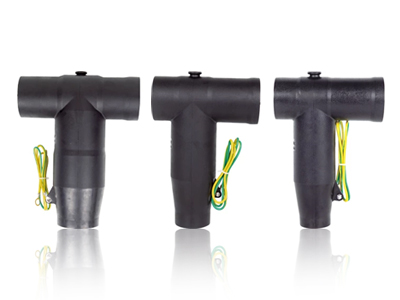

26/35 kV,630 A Front Plug-in Cable Connector
Main features
- Rated voltage : 35 kV,
- Rated current : 630 A,
- AC Withstand Voltage for 5min : 117 kV,
- Partial Discharge : 45 kV,≤10 pC,
- Impulse Withstand Voltage(10 times foreach polarity) : 200 kV,
- Screen Resistance : ≤5000 Ω,
- Reference standards : GB/T 12706.4、IEC 60502-4,
Your Advantages
- Feather-light plugging and superior handling comfort with a factory-pretensioned contact spring
- Wiring of all conductor types, whether rigid or flexible, even without ferrules
- Clear identification of the conductor connection (visual and acoustic)
- Easy release of the conductors and pretensioning of the contact spring using the orange actuating push button
- Optimized for manual and automated wiring
18/20 kV,630 A Front Plug-in Cable Connector
Main features
- Rated voltage : 18/20 kV,
- Rated current : 630 A,
- AC Withstand Voltage for 5min : 81 kV,
- Partial Discharge : 30 kV,Q≤10 pC,
- Impulse Withstand Voltage(10 times foreach polarity) : 170 kV,
- Screen Resistance : ≤5000 Ω,
- Reference standards : GB/T 12706.4、IEC 60502-4,
Your Advantages
- Feather-light plugging and superior handling comfort with a factory-pretensioned contact spring
- Wiring of all conductor types, whether rigid or flexible, even without ferrules
- Clear identification of the conductor connection (visual and acoustic)
- Easy release of the conductors and pretensioning of the contact spring using the orange actuating push button
- Optimized for manual and automated wiring
8.7/15 kv,630 A Front Plug-in Cable Connector
Main features
- Rated voltage : 15 kV,
- Rated current : 630 A,
- AC Withstand Voltage for 5min : 39 kV,
- Partial Discharge : 15 kV,Q≤10 pC,
- Impulse Withstand Voltage(10 times foreach polarity) : 95 kV,
- Screen Resistance : ≤5000 Ω,
- Reference standards : GB/T 12706.4、IEC 60502-4,
Your Advantages
- Feather-light plugging and superior handling comfort with a factory-pretensioned contact spring
- Wiring of all conductor types, whether rigid or flexible, even without ferrules
- Clear identification of the conductor connection (visual and acoustic)
- Easy release of the conductors and pretensioning of the contact spring using the orange actuating push button
- Optimized for manual and automated wiring
