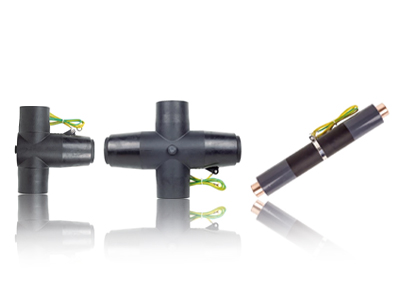

Busbar Connector

Separable Cable Accessories are essential connection components designed to provide safe, reliable, and fully insulated interfaces for medium-voltage (MV) and high-voltage (HV) power systems. Engineered for switchgear, transformers, RMUs, and distribution networks, these accessories ensure stable electrical performance even under harsh operational conditions.

Our separable connectors are manufactured using high-quality EPDM or silicone rubber, offering excellent electrical insulation, hydrophobicity, and long-term resistance to moisture, UV exposure, and environmental stress. Each product is designed to deliver consistent dielectric strength, superior mechanical durability, and simplified installation with standard cold-shrink or plug-in technology.

Busbar Connector

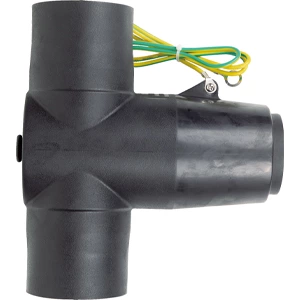

26/35 kV Clamp-Type Top-Expansion Busbar Connector

Rated voltage : 35 kV , Rated current : 630/1250 A , AC Withstand Voltage for 5min : 117 kV , Partial Discharge : 45 kV,Q≤10 pC , Impulse Withstand Voltage(10 times foreach polarity) : 200 kV , Screen Resistance : ≤5000 Ω , Reference standards : GB/T 12706.4、IEC 60502-4 ,

‌8.7/15 kV, 12/20 kV Clamp-Type Top-Expansion Busbar Connector‌ ‌product Applications

Rated voltage : 15 kV,20 kV , Rated current : 630/1250 A , AC Withstand Voltage for 5min : 42 kV,65 kV , Partial Discharge : 15 kV,Q≤10 pC 20 kV,Q≤10 pC , Impulse Withstand Voltage(10 times foreach polarity) : 95 kV,125 kV , Screen Resistance : ≤5000 Ω , Reference standards : IEE-386、GB/T 12706.4、IEC 60502-4 ,

‌Side-Expansion Busbar Connector

Rated voltage : 15 kV,24 kV , Rated current : 630 A , AC Withstand Voltage for 5min : 45 kV,65 kV , Partial Discharge : 15 kV,Q≤10 pC 24 kV,Q≤10 pC , Impulse Withstand Voltage(10 times foreach polarity) : 95 kV,125 kV , Screen Resistance : ≤5000 Ω , Reference standards : GB/T8349,GB/T11022 , Temperature rise : ≤65 K ,
