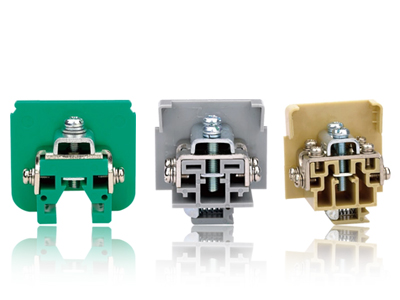

MJ Small-scale Busbar
The insulation parts are made of engineering plastic which has excellent insulation and mechanical strength. They can bear high temperature up to 120ºC
It has good conductive performance. Its voltage drops can′t exceed 3.2mV when contacting. When it is disconnected, it can keep and limit space. It is visible, safe and reliable.
It can be fastened on a mouning plate(such as iron plates)with a thickness≥1mm. It can be used to switch on and off the circuit (50 or 60Hz,600VAC or 440V, 24ADC)in relay protection panels or control cabinet etc.

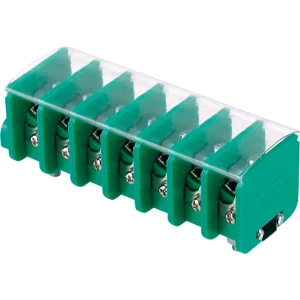

MJ5 Terminal Block
Thickness/Height/Width mm : According to customer reauirements/45/49.5 ,

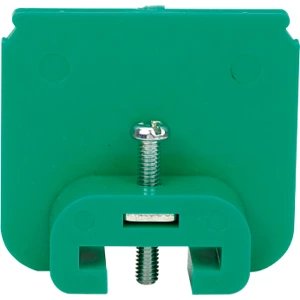

MJ5-2.5G
Number of packages : 60 ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,
Thickness/Height/Width mm : 14.8/45/49.5 ,
MJ series small-scale busbar suitable for installation rails : MJ1 installation rail ,
Screw/Tightening torque(Nm) : M4/1.2 ,

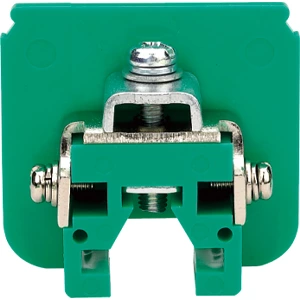

MJ5-2.5
Number of packages : 24 ,
Rated voltage/Rated current/Rated cross-section : 660 V/120 A/2.5 mm² ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,
Thickness/Height/Width mm : 19.5/45/49.5 ,
MJ series small-scale busbar suitable for installation rails : MJ1 installation rail ,
Screw/Tightening torque(Nm) : M4/1.2 ,

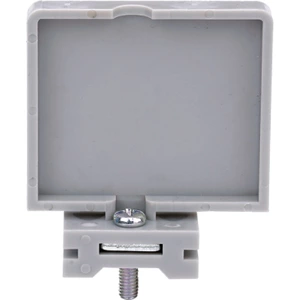

MJ3-2.5G
Number of packages : 60 ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,
Thickness/Height/Width mm : 12/60/48 ,
MJ series small-scale busbar suitable for installation rails : G32-18(15) ,
Screw/Tightening torque(Nm) : M4/1.2 ,

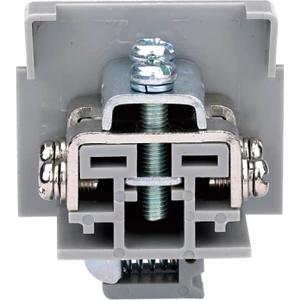

MJ3-2.5
Number of packages : 20 ,
Rated voltage/Rated current/Rated cross-section : 660 V/120 A/2.5 mm² ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,
Thickness/Height/Width mm : 25/60/48 ,
MJ series small-scale busbar suitable for installation rails : G32-18(15) ,
Screw/Tightening torque(Nm) : M4/1.2 ,

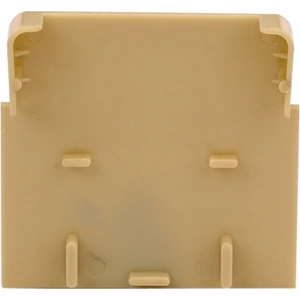

MJ2-2.5G
Material : PC ,
Flame retardant rating UL-94 : V2 ,

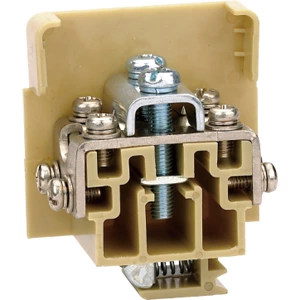

MJ2-2.5
Number of packages : 20 ,
Rated voltage/Rated current/Rated cross-section : 660 V/120 A/2.5 mm² ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,
Thickness/Height/Width mm : 27.5/68/50 ,
MJ series small-scale busbar suitable for installation rails : G32-18(15) ,
Screw/Tightening torque(Nm) : M4/1.2 ,

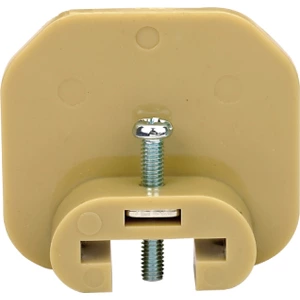

MJ1-2.5G
Number of packages : 60 ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,
Thickness/Height/Width mm : 15/45/50 ,
MJ series small-scale busbar suitable for installation rails : Mj1 installation rail ,
Screw/Tightening torque(Nm) : M4/1.2 ,

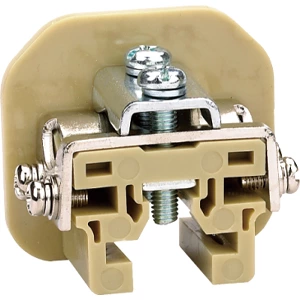

MJ1-2.5
Number of packages : 20 ,
Rated voltage/Rated current/Rated cross-section : 660 V/120 A/2.5 mm² ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,
Thickness/Height/Width mm : 27/45/50 ,
MJ series small-scale busbar suitable for installation rails : Mj1 installation rail ,
Screw/Tightening torque(Nm) : M4/1.2 ,
