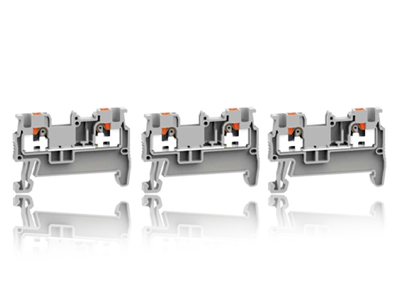

Push-In Type Terminal Blocks
Compared with traditional screw terminal blocks, push-in technology significantly reduces wiring time and ensures consistent connection quality.The spring clamp structure maintains stable contact pressure, making it ideal for environments with vibration and temperature changes.
Push-in terminal blocks provide a fast, reliable, and tool-free wiring solution for modern electrical installations.Designed for standard 35mm DIN rails (EN 60715), our push-in terminals are compatible with NS 35/7.5 and NS 35/15 rail profiles.They are widely used in control panels, automation systems, and industrial equipment where efficiency and safety are critical.
Product Categories
New products
JHD1-1.5C - Double-level terminal block
Main features
- Type : Double-level terminal block,
- Nominal Voltage : 500 V,
- Nominal Current : 16 A,
- Connection Method : Push-in connection, 1st and 2nd level,
- Rated Cross Section : 1.5 mm²,
- Mounting type : DIN Rail (EN 60715),
- Compatible Rail : NS 35/7,5, NS 35/15,
- Cross Section : 0.14 mm² - 1.5 mm²,
- Color : gray,
Your Advantages
- Tool-free wiring – direct push-in connection
- Saves up to 50% installation time
- Strong spring clamping technology
- Vibration-resistant connection
- Suitable for solid and ferruled wires
- Compatible with 35mm DIN rail (NS35)
- Compact design for high-density wiring
JHD1-2.5C - Double-level terminal block
Main features
- Type : Double-level terminal block,
- Nominal Voltage : 800 V,
- Nominal Current : 24 A,
- Connection Method : Push-in connection, 1st and 2nd level,
- Rated Cross Section : 2.5 mm²,
- Mounting type : DIN Rail (EN 60715),
- Compatible Rail : NS 35/7,5, NS 35/15,
- Cross Section : 0.14 mm² - 4 mm²,
- Color : gray,
Your Advantages
- Tool-free wiring – direct push-in connection
- Saves up to 50% installation time
- Strong spring clamping technology
- Vibration-resistant connection
- Suitable for solid and ferruled wires
- Compatible with 35mm DIN rail (NS35)
- Compact design for high-density wiring

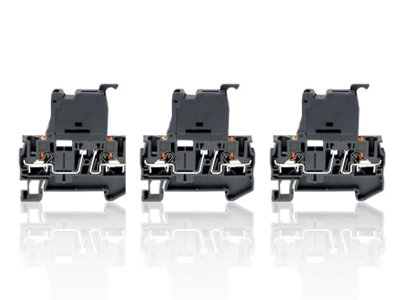

JHD1-4RD - Fuse modular terminal block
Main features
- Type : Fuse modular terminal block,
- Fuse Type : Glass / ceramics / ...G / 5 x 20,
- Nominal Voltage : 500 V,
- Nominal Current : 6.3 A,
- Number Of Connections : 1,
- Connection Method : Push-in connection,
- Rated Cross Section : 4 mm²,
- Mounting type : DIN Rail (EN 60715),
- Compatible Rail : NS 35/7,5, NS 35/15,
- Cross Section : 0.2 mm²- 6 mm²,
- Color : black,
Your Advantages
- Tool-free wiring – direct push-in connection
- Saves up to 50% installation time
- Strong spring clamping technology
- Vibration-resistant connection
- Suitable for solid and ferruled wires
- Compatible with 35mm DIN rail (NS35)
- Compact design for high-density wiring
JHD1-4C - Double-level terminal block
Main features
- Type : Double-level terminal block,
- Nominal Voltage : 800 V,
- Nominal Current : 32 A,
- Connection Method : Push-in connection, 1st and 2nd level,
- Rated Cross Section : 4 mm²,
- Mounting type : DIN Rail (EN 60715),
- Compatible Rail : NS 35/7,5, NS 35/15,
- Cross Section : 0.2 mm² - 6 mm²,
- Color : gray,
Your Advantages
- Tool-free wiring – direct push-in connection
- Saves up to 50% installation time
- Strong spring clamping technology
- Vibration-resistant connection
- Suitable for solid and ferruled wires
- Compatible with 35mm DIN rail (NS35)
- Compact design for high-density wiring

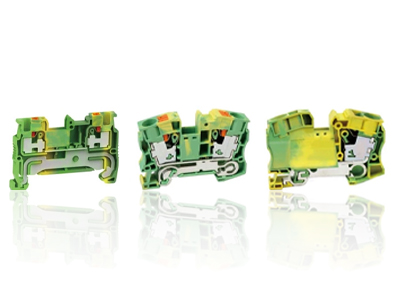

JHD1-35JD - Protective conductor terminal
Main features
- Type : Protective conductor terminal block,
- Number Of Connections : 2,
- Connection Method : PowerTurn connection,
- Rated Cross Section : 35 mm²,
- Mounting type : DIN Rail (EN 60715),
- Compatible Rail : NS 35/7,5, NS 35/15,
- Cross Section : 2.5 mm² - 35 mm²,
- Color : green-yellow,
Your Advantages
- Tool-free wiring – direct push-in connection
- Saves up to 50% installation time
- Strong spring clamping technology
- Vibration-resistant connection
- Suitable for solid and ferruled wires
- Compatible with 35mm DIN rail (NS35)
- Compact design for high-density wiring
