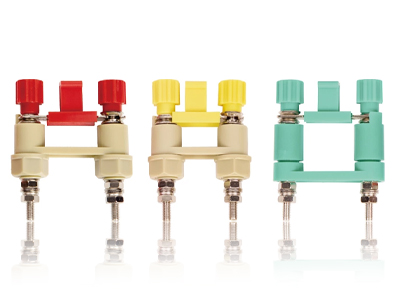

JL1 Panel Connection Piece
The insulation parts are made of engineering plastic which has excellent insulation and mechanical strength. They can bear high temperature up to 120ºC
It has good conductive performance. Its voltage drops can′t exceed 3.2mV when contacting. When it is disconnected, it can keep and limit space. It is visible, safe and reliable.
It can be fastened on a mouning plate(such as iron plates)with a thickness≥1mm. It can be used to switch on and off the circuit (50 or 60Hz,600VAC or 440V, 24ADC)in relay protection panels or control cabinet etc.

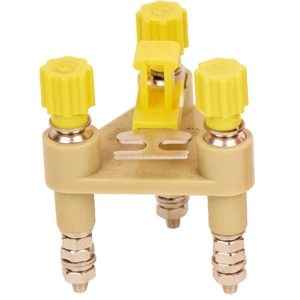

JL1-2.5/3A
Number of packages : 20 ,
Thickness/Width/Height/Height after installation: mm : 43/48/62/35 ,
Rated voltage/Rated current/Rated cross-section : 660V/24A/2.5 mm² ,
Hole spacing size/opening size : 35x35x35(Equilateral △)/3-Ф10 ,
Screw : M4 ,
Tightening torque(Nm) : 1.2 ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,

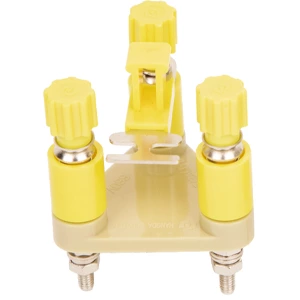

JL1-2.5/3
Number of packages : 20 ,
Thickness/Width/Height/Height after installation: mm : 42/48/62/30 ,
Rated voltage/Rated current/Rated cross-section : 660V/24A/2.5 mm² ,
Hole spacing size/opening size : 35x35x35(Equilateral △)/3-Ф10 Middle opening Ф5 or M4 ,
Screw : M4 ,
Tightening torque(Nm) : 1.2 ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,

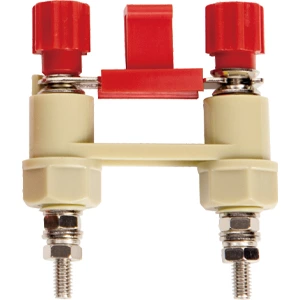

JL1-2.5/2C
Number of packages : 20 ,
Thickness/Width/Height/Height after installation: mm : 13/41/59.5/33 ,
Rated voltage/Rated current/Rated cross-section : 660 V/24 A/2.5 mm² ,
Hole spacing size/opening size : 35/2-Ф10 ,
Screw : M4 ,
Tightening torque(Nm) : 1.2 ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,

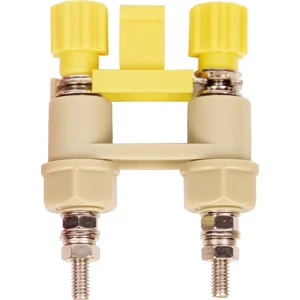

JL1-2.5/2B(E-28)
Number of packages : 20 ,
Thickness/Width/Height/Height after installation: mm : 13/41/59.5/33 ,
Rated voltage/Rated current/Rated cross-section : 660 V/24 A/2.5 mm² ,
Hole spacing size/opening size : 28/2-Ф10 ,
Screw : M4 ,
Tightening torque(Nm) : 1.2 ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,

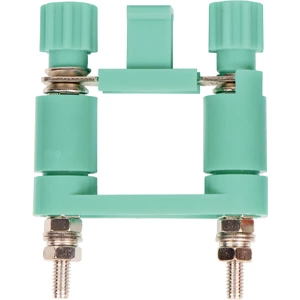

JL1-2.5/2A
Number of packages : 20 ,
Thickness/Width/Height/Height after installation: mm : 13/48/62/35 ,
Rated voltage/Rated current/Rated cross-section : 660 V/24 A/2.5 mm² ,
Hole spacing size/opening size : 35/2-Ф10 ,
Screw : M4 ,
Tightening torque(Nm) : 1.2 ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,

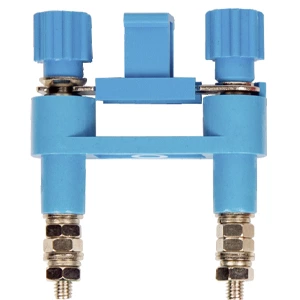

JL1-2.5/2
Number of packages : 20 ,
Thickness/Width/Height/Height after installation: mm : 13/48/62/30 ,
Rated voltage/Rated current/Rated cross-section : 660 V/24 A/2.5 mm² ,
Hole spacing size/opening size : 35/2-Ф10 Middle opening Ф5 or M4 ,
Screw : M4 ,
Tightening torque(Nm) : 1.2 ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,

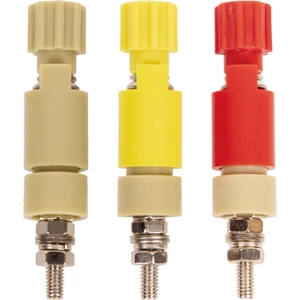

JL1-2.5D
Number of packages : 40 ,
Thickness/Width/Height/Height after installation: mm : 13/13/60/30 ,
Rated voltage/Rated current/Rated cross-section : 660 V/24 A/2.5 mm² ,
Hole spacing size/opening size : Ф10 ,
Screw : M4 ,
Tightening torque(Nm) : 1.2 ,
Material : PC ,
Flame retardant rating UL-94 : V2 ,
