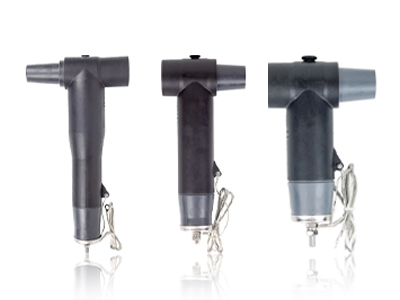

Rear Screened Surge Arrester

Separable Cable Accessories are essential connection components designed to provide safe, reliable, and fully insulated interfaces for medium-voltage (MV) and high-voltage (HV) power systems. Engineered for switchgear, transformers, RMUs, and distribution networks, these accessories ensure stable electrical performance even under harsh operational conditions.

Our separable connectors are manufactured using high-quality EPDM or silicone rubber, offering excellent electrical insulation, hydrophobicity, and long-term resistance to moisture, UV exposure, and environmental stress. Each product is designed to deliver consistent dielectric strength, superior mechanical durability, and simplified installation with standard cold-shrink or plug-in technology.

Rear Screened Surge Arrester
35 kV Shielded Rear Plug-in Arrester

35 kV Shielded Rear Plug-in Arrester

Rated voltage : 51 , Nominal discharge current : 5 , System Voltage : 35 , Continuous operating voltage : 40.8 , DC reference voltage 1mA : 73 , Steep current : 154 , Lightning impulse : 134 , Switching impulse : 114 , Long duration currentt impulse withstand : 400 , High current impulse withstand : 100 ,
24 kV Shielded Rear Plug-in Surge Arrester

24 kV Shielded Rear Plug-in Surge Arrester

Rated voltage : 26,32,34 , Nominal discharge current : 5 , System Voltage : 20 , Continuous operating voltage : 20.8,25.6,27.2 , DC reference voltage 1mA : 37,47,48 , Steep current : 76,95 , Lightning impulse : 66,85 , Switching impulse : 56,75 , Long duration currentt impulse withstand : 150,200 , High current impulse withstand : 65 ,
15 kV Screened Rear Plug-in Arrester

15 kV Screened Rear Plug-in Arrester

Rated voltage : 10,13,17 , Nominal discharge current : 5 , System Voltage : 6,10,15 , Continuous operating voltage : 8,10.4,13.6 , DC reference voltage 1mA : 14.4,15,19.3,24,25 , High current impulse withstand : 65 , Residual voltage at steep current impulse : 31,34.5,41.3,51.8,57.5 , Residual voltage at lightning impulse : 27,30,36,45,50 , Residual voltage at switching impulse : 23,25.6,30.7,35,42.5 , Long-duration current impulse withstand : 75,100,150 ,
