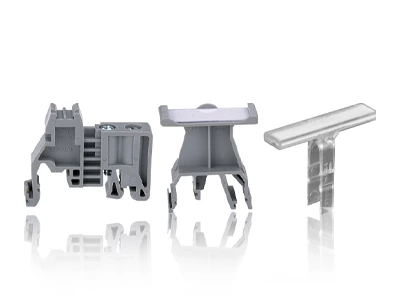

How Elastic Deformation Improves The Reliability Of Push-in Terminal Block Technology
The shift toward efficient control cabinet assembly has made the push in type terminal block a standard in modern electrical engineering. At the heart of this innovation lies the principle of elastic deformation, a mechanical property that ensures secure connections without the need for manual tightening.
Mechanics of Elastic Deformation
Elastic deformation refers to the ability of a high-quality stainless steel spring to flex when a conductor is inserted and maintain a constant contact force. Unlike screw-type alternatives, a push fit terminal block utilizes this stored energy to compensate for external factors such as temperature fluctuations or settling of the wire strands.
Why Elasticity Matters for Long-term Stability
When a solid wire or ferruled conductor is pressed into a push fit din rail terminals system, the internal spring steel deforms within its elastic limit. This creates a gas-tight connection that prevents oxidation and maintains low contact resistance. Because the metal "remembers" its original shape, it applies continuous pressure, making it virtually maintenance-free over the lifecycle of the installation.
Technical Advantages of Push-In Systems
The adoption of this technology is driven by several performance factors that benefit both technicians and system integrators:
-
Vibration Resistance: The constant spring force ensures the connection remains intact even in high-vibration environments like railway or heavy machinery applications.
-
Reduced Installation Time: Wiring can be completed up to 50% faster compared to traditional screw terminals.
-
Tool-Free Operation: Direct insertion simplifies the process, reducing physical strain on the installer.
| Feature Category | Technical Specification | Typical Benefit |
| Pull-out Force | Exceeds IEC 60947-7-1 | Prevents accidental disconnection |
| Temperature Range | -40 to +105 | Suitable for harsh climates |
| Material Grade | Polyamide 6.6 / V0 | Enhanced fire safety and insulation |
Optimization for Modern Control Cabinets
Integrating these components into a rail assembly improves the overall density of the panel. By leveraging the compact nature of the spring mechanism, engineers can fit more connection points into a smaller footprint without sacrificing electrical integrity or safety.
