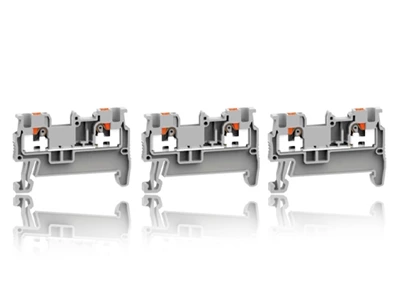

How Push Fit Din Rail Terminals Enable True Plug-and-play Connections
Push fit DIN rail terminals are transforming industrial wiring by simplifying installation and improving reliability. Known for their user-friendly design, these terminals allow technicians to connect wires quickly without traditional screws or tools. This guide explores how push fit terminal block technology works and why it’s ideal for both technical professionals and everyday users.
Push Fit Terminal Block Mechanisms
A push in type terminal block relies on a spring-loaded mechanism that securely grips the conductor. When a wire is inserted, the internal spring clamps it tightly, ensuring electrical continuity without the need for additional fasteners. This reduces installation time by up to 40% compared with conventional screw-type terminals.
| Feature | Traditional Terminal | Push Fit Terminal |
|---|---|---|
| Installation Time | Moderate | Fast |
| Tool Requirement | Screwdriver | None |
| Vibration Resistance | Moderate | High |
| Maintenance | Periodic Tightening | Minimal |
This plug-and-play feature makes push fit DIN rail terminals especially suitable for control panels, switchgear, and other applications where wiring density is high.
Key for Technical
Push fit terminal blocks are designed with both reliability and convenience in mind. Technicians benefit from:
-
Reduced wiring errors – Clear insertion points prevent loose connections.
-
Time efficiency – Quick insertion saves hours on large-scale installations.
-
Long-term stability – The spring mechanism maintains contact force even under vibration or thermal cycling.
Additionally, these terminals often comply with international safety standards, making them a preferred choice in industrial and commercial projects.
Practical Tips for Everyday Users
Even non-expert users can take advantage of push in type terminal blocks. When inserting wires, it’s important to strip the insulation correctly and ensure the wire is fully seated. For maintenance, simply remove the wire using a standard release tool—no specialized knowledge is needed.
Push fit DIN rail terminals combine speed, safety, and reliability. Whether for complex industrial setups or simpler DIY electrical projects, they offer a plug-and-play solution that reduces installation errors and maximizes efficiency.
