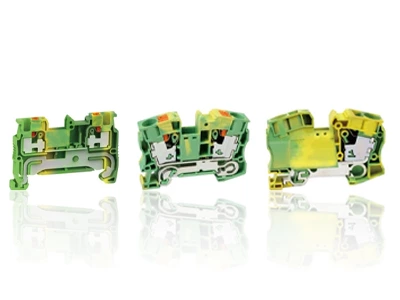

Why Must The Insulating Housing Of Push-in Terminals Meet The Ul94 V-0 Flame Retardant Rating?
Push fit din rail terminals must utilize UL94 V-0 rated insulating housings to prevent catastrophic electrical fires. Industrial control cabinets operate under high-current loads, where loose connections or overloads generate extreme heat. Standard plastics ignite easily, whereas a V-0 rating ensures that plastic components self-extinguish within ten seconds, eliminating secondary ignition sources.
Defining Fire Retardant Standards In Electrical Components
The UL94 standard measures how plastic materials respond to open flames. Among the various classifications, V-0 represents the highest tier of vertical burn protection for standard terminal blocks.
Key Differences Between Rating Levels
-
UL94 V-0: Burning stops within 10 seconds on a vertical specimen; drips of particles are allowed as long as they are not inflamed.
-
UL94 V-1: Burning stops within 30 seconds on a vertical specimen; particles can drip but must not be inflamed.
-
UL94 V-2: Burning stops within 30 seconds, but flaming particles are allowed to drip and ignite the cotton indicator below.
The reason why push-in terminal blocks require a V-0 housing
High-density wiring environments present continuous thermal risks. Selecting a push fit terminal block with a V-0 certified housing ensures maximum operational safety under demanding conditions.
1. Rapid Self-Extinguishing Capability
Electrical arcs can reach temperatures exceeding 1000°C instantly. A push in type terminal block made from V-0 material stops burning almost immediately after the flame source is removed, restricting localized damage.
2. Prevention of Internal Enclosure Melt-Downs
In enclosed control panels, a minor fire can quickly compromise adjacent wiring. Materials rated below V-0 risk dripping molten, burning plastic, which rapidly spreads fire to neighboring rail systems.
3. Compliance With Global Engineering Codes
International industrial standards require stringent fire protection protocols for public infrastructure and automation systems.
| Application Environment | Minimum Required Fire Rating | Typical Temperature Range |
|---|---|---|
| Public Rail Transportation | UL94 V-0 | -40°C to 125°C |
| Industrial Automation Panels | UL94 V-0 | -20°C to 105°C |
| Standard Commercial Lighting | UL94 V-2 | -10°C to 85°C |
Ensuring Long Term System Reliability
Specifying push fit din rail terminals with V-0 housing guarantees reliable performance during unexpected electrical faults. This material detail protects expensive automation machinery, minimizes unscheduled facility downtime, and secures a safe working environment for technical personnel.
