8.7/15 kV, 12/20 kV Clamp-Type Top-Expansion Busbar Connector product Applications
- Rated voltage:
- 15 kV,20 kV
- Rated current:
- 630/1250 A
- AC Withstand Voltage for 5min:
- 42 kV,65 kV
- Partial Discharge:
- 15 kV,Q≤10 pC 20 kV,Q≤10 pC
- Impulse Withstand Voltage(10 times foreach polarity):
- 95 kV,125 kV
- Screen Resistance:
- ≤5000 Ω
- Reference standards:
- IEE-386、GB/T 12706.4、IEC 60502-4
 |
 |
 |

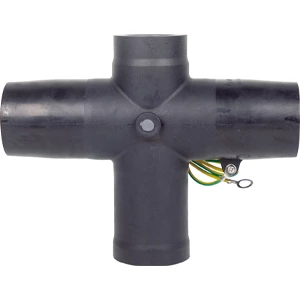

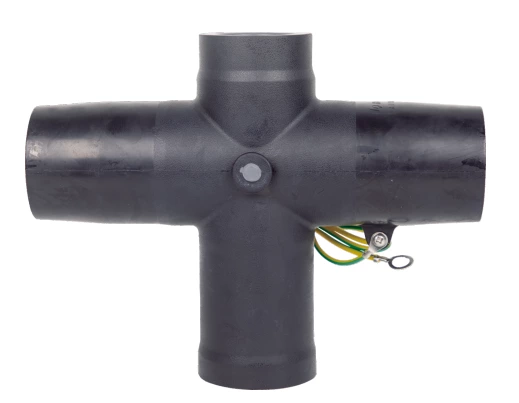

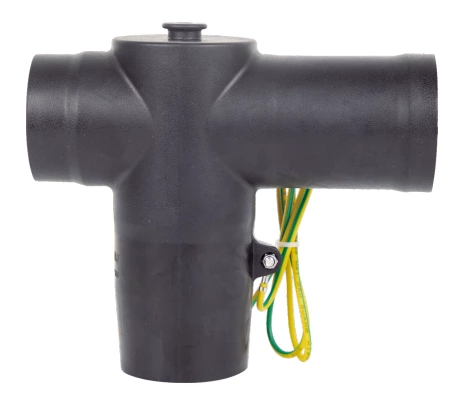

| GHD-15/630A-DJT T-connector | GHD-15/630A-SJT Cross connector | GHD-15MX-630 Bus |
Product features
●Enables connections between multiple switchgear
cabinets by connecting to switchgear bushings.
●System voltage: 8.7/15 kV, 12/20 kV
●Continuous rated current: 630 A/1250 A.
Characteristics
● Provides fully insulated and fully sealed separable connections when used with Type C bushings. Single-pole, plug-in design.

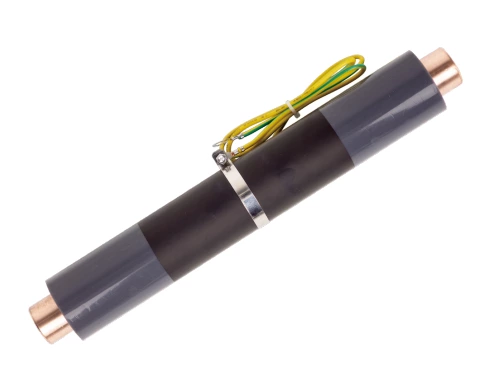

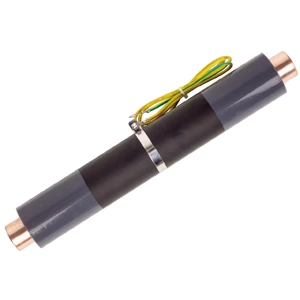

● Busbars consist of round copper rods (tubes) coated with composite silicone rubber insulation.
●Shielded busbars have no minimum phase-to-phase distance requirements and are unaffected by pollution or condensation.
Technical Data
| Rated voltage | 15 kV | 20 kV |
| Rated current | 630/1250 A | 630/1250 A |
| AC withstand voltage (5 min) | 42 kV | 65 kV |
| Partial Discharge | 15 kV,Q≤10 pC | 20 kV,Q≤10 pC |
| Impulse withstand voltage (± polarity, 10 impulses each)) | 95 kV | 125 kV |
| Screen Resistance | ≤5000 Ω | ≤5000 Ω |
| Reference standards:IEE-386、GB/T 12706.4、IEC 60502-4 | ||
Ordering Information

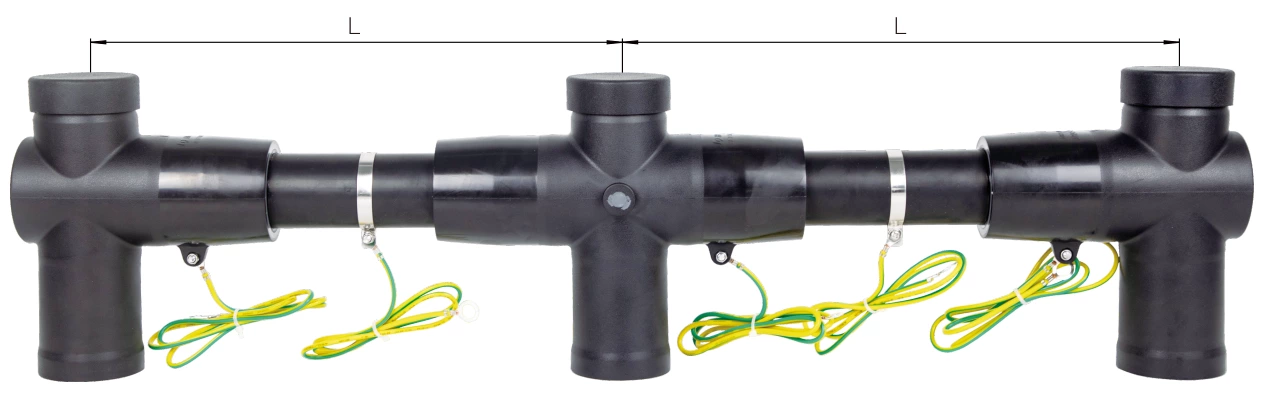

● Busbar processing length L is based on the center distance between switchgear equipment bushings. This parameter must be provided when ordering. If based on busbar length, please specify clearly.

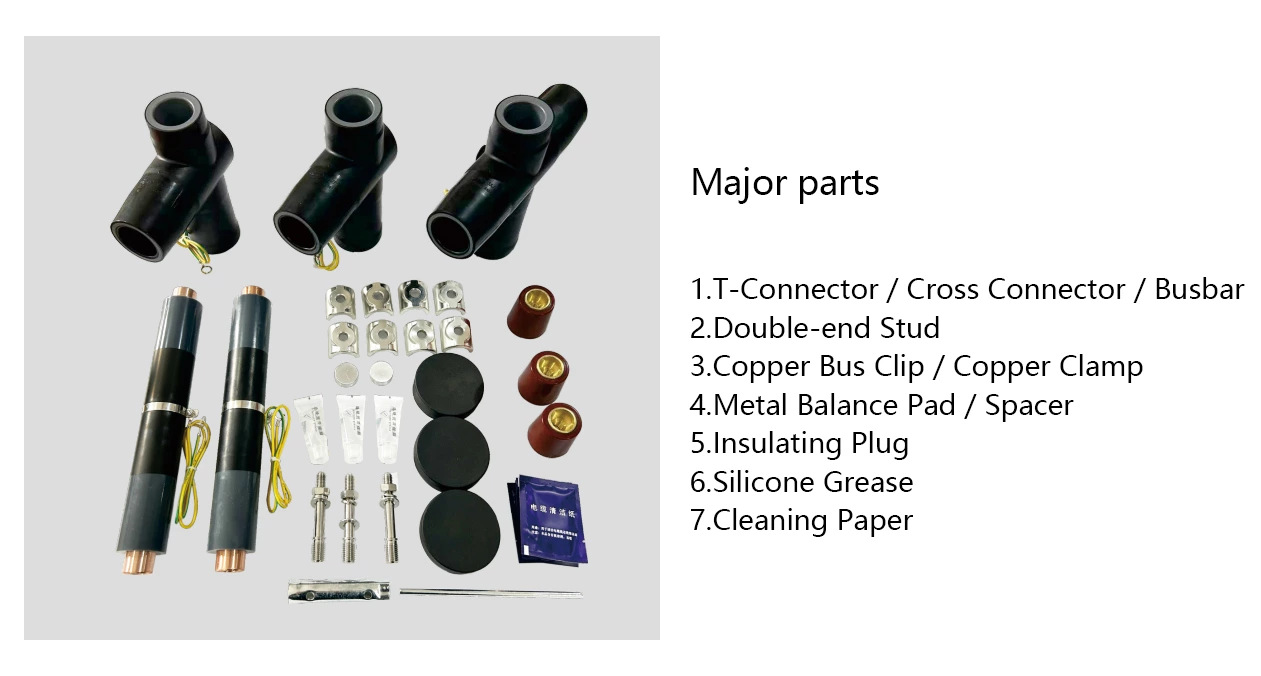

Product accessory Illustration
Ordering information
| Switch cabinet connection | T-connector | Cross connector | Bus(Length based on center to center distance) |
| Two connected cabinets | 2 Set | -- | 1 Set |
| Three connected cabinets | 2 Set | 1 Set | 2 Set |
| Four connected cabinets | 2 Set | 2 Set | 3 Set |
| Five connected cabinets | 2 Set | 3 Set | 4 Set |
| N connected cabinets | 2 Set | N-2 Set | N-1 Set |
