Grounding & Protective Conductor Terminal Blocks (PE)
Grounding and protective conductor terminal blocks are designed to ensure safe and reliable earthing connections in electrical installations.
These PE terminal blocks provide low-resistance connections to DIN rails, enabling multiple protective conductors to be securely connected to a common grounding point.
They are widely used in control panels, switchgear, machinery, and industrial power systems to enhance electrical safety and EMC protection.
JHD5-6JD - Protective conductor terminal block
Type : Protective conductor terminal block ,
Number Of Connections : 2 ,
Number Of Positions : 1 ,
Connection Method : Screw connection ,
Cross Section : 0.2 mm² - 10 mm² ,
Mounting Method : PE foot with mounting screw, M4 ,
Color : green-yellow ,

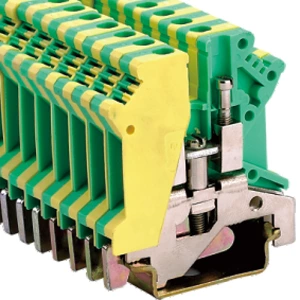

JHD5-4JD - Protective conductor terminal block
Type : Protective conductor terminal block, When aligning with a feed-through terminal block with the same shape, an end cover must be interposed with insulation voltages of > 690 V ,
Number Of Connections : 2 ,
Connection Method : Screw connection ,
Rated Cross Section : 4 mm² ,
Cross Section : 0.2 mm² - 6 mm² ,
Mounting Method : PE foot with mounting screw, M2 ,
Color : green-yellow ,

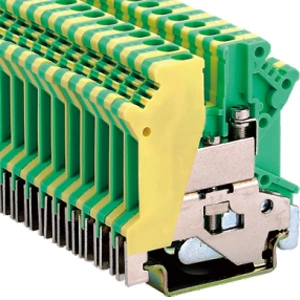

JHD5-2.5JD - Protective conductor terminal block
Type : Protective conductor terminal block, When aligning with a feed-through terminal block with the same shape, an end cover must be interposed with insulation voltages of > 690 V ,
Number Of Connections : 2 ,
Number Of Positions : 1 ,
Connection Method : Screw connection ,
Cross Section : 0.2 mm² - 4 mm² ,
Mounting Method : PE foot with mounting screw, M2.5 ,
Color : green-yellow ,
