JL1-2.5/2B(E-28)
- Number of packages:
- 20
- Thickness/Width/Height/Height after installation: mm:
- 13/41/59.5/33
- Rated voltage/Rated current/Rated cross-section:
- 660 V/24 A/2.5 mm²
- Hole spacing size/opening size:
- 28/2-Ф10
- Screw:
- M4
- Tightening torque(Nm):
- 1.2
- Material:
- PC
- Flame retardant rating UL-94:
- V2
| Model | JL1-2.5/2B(E-28) |
| Number of packages | 20 |
| Thickness/Width/Height/Height after installation: mm | 13/41/59.5/33 |
| Rated voltage/Rated current/Rated cross-section | 660 V/24 A/2.5 mm² |

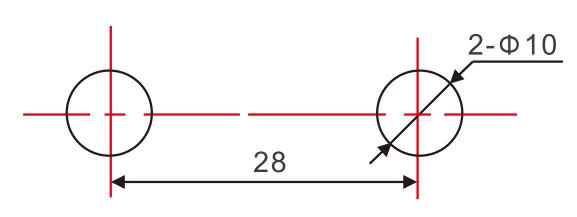

| Hole spacing size/opening size | 28/2-Ф10 |
| Screw | M4 |
| Tightening torque(Nm) | 1.2 |
| Material | PC |
| Flame retardant rating UL-94 | V2 |
| Dimensions |  |
Note: The color of the plastic parts for JL screen connectors can be freely matched according to customer reauirements
