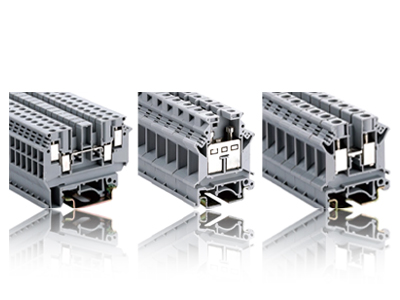

Feed-through Terminal Blocks
Feed-through and multi-level terminal blocks are the most widely used solutions for control cabinets and electrical panels.
Our JHD5 series feed-through terminal blocks provide reliable wire-to-wire connections with compact DIN rail mounting, while multi-level terminal blocks allow multiple circuits to be integrated into a single terminal, significantly saving installation space.
They are ideal for industrial automation, power distribution, control systems, and OEM equipment.

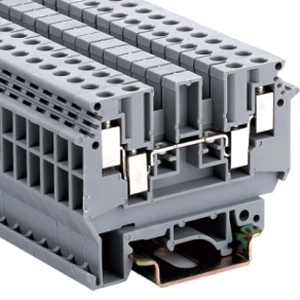

JHD5-4/2-2 - Feed-through terminal block
Type : Feed-through terminal block ,
Voltage : 690 V ,
Nominal Current : 32 A ,
Number Of Connections : 4 ,
Number Of Positions : 1 ,
Connection Method : Screw connection ,
Rated Cross Section : 4 mm² ,
Cross Section : 0.2 mm² - 6 mm² ,
Color : gray ,

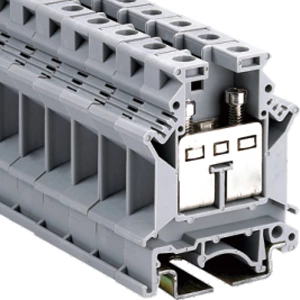

JHD5-16 - Feed-through terminal block
Type : Feed-through terminal block ,
Voltage : 800 V ,
Nominal Current : 76 A ,
Number Of Connections : 2 ,
Number Of Positions : 1 ,
Connection Method : Screw connection ,
Rated Cross Section : 16 mm² ,
Cross Section : 2.5 mm² - 25 mm² ,
Color : gray ,

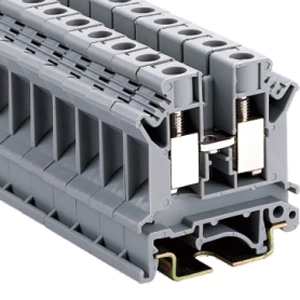

JHD5-10 - Feed-through terminal block
Type : Feed-through terminal block ,
Voltage : 800 V ,
Nominal Current : 57 A ,
Number Of Connections : 2 ,
Connection Method : Screw connection ,
Rated Cross Section : 10 mm² ,
Cross Section : 0.5 mm² - 16 mm² ,
Color : gray ,

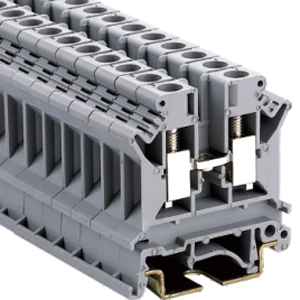

JHD5-6 - Feed-through terminal block
Type : Feed-through terminal block ,
Voltage : 800 V ,
Nominal Current : 41 A ,
Number Of Connections : 2 ,
Connection Method : Screw connection ,
Rated Cross Section : 6 mm² ,
Cross Section : 0.2 mm² - 10 mm² ,
Color : gray ,

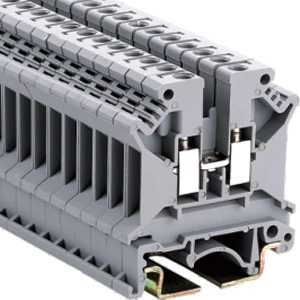

JHD5-4 - Feed-through terminal block
Type : Feed-through terminal block ,
Voltage : 800 V ,
Nominal Current : 32 A ,
Number Of Connections : 2 ,
Connection Method : Screw connection ,
Rated Cross Section : 4 mm² ,
Cross Section : 0.2 mm² - 6 mm² ,
Color : gray ,

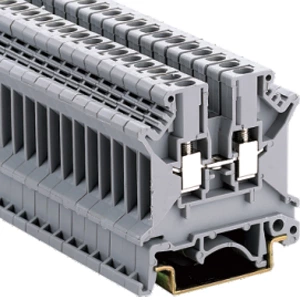

JHD5-2.5 - Feed-through terminal block
Type : Feed-through terminal block ,
Voltage : 800 V ,
Nominal Current : 24 A ,
Number Of Connections : 2 ,
Connection Method : Screw connection ,
Rated Cross Section : 2.5 mm² ,
Cross Section : 0.2 mm² - 4 mm² ,
Color : gray ,

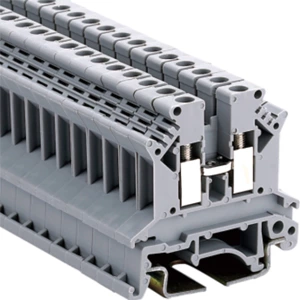

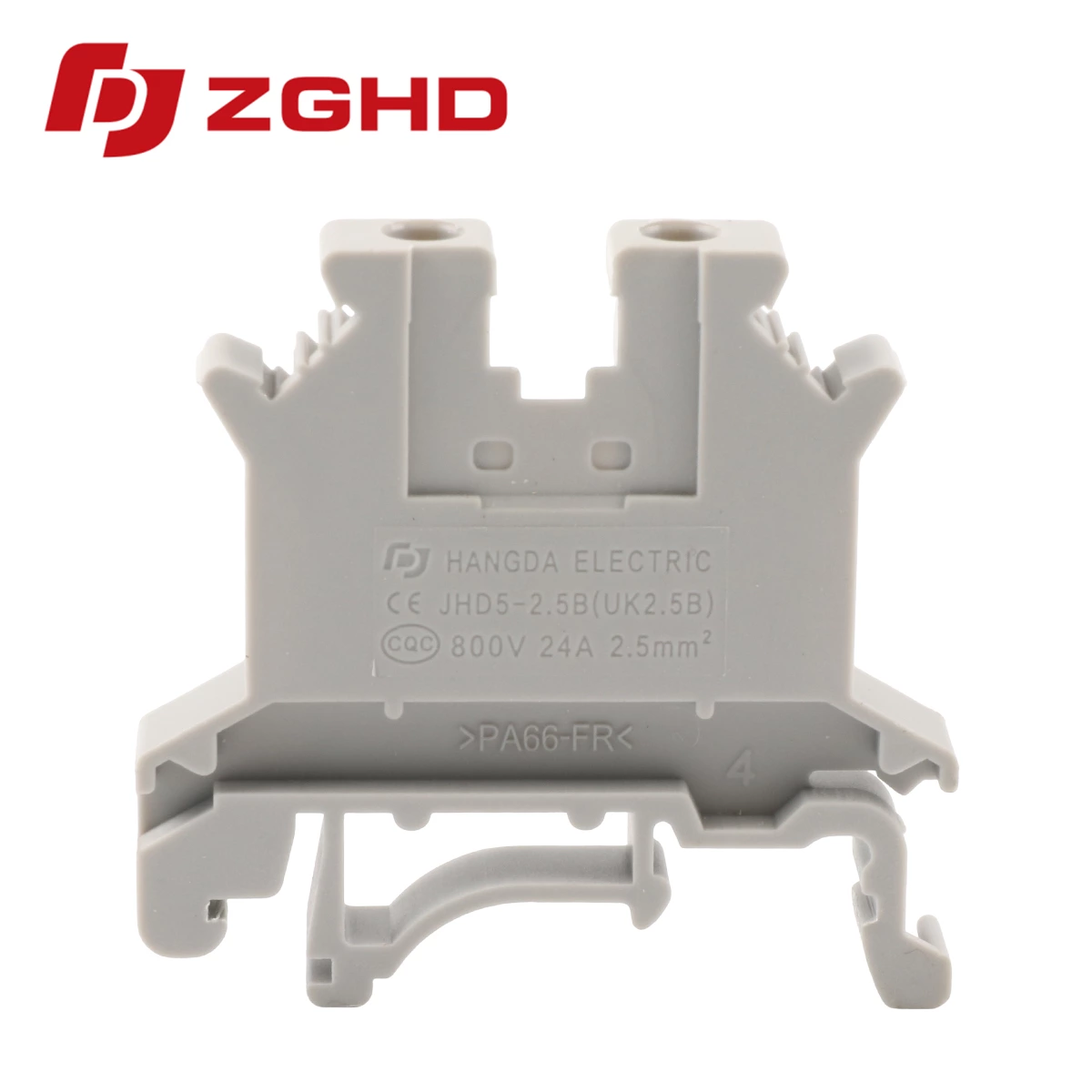

JHD5-2.5B - Feed-through terminal block
Type : Feed-through terminal block ,
Voltage : 800 V ,
Nominal Current : 24 A ,
Number Of Connections : 2 ,
Connection Method : Screw connection ,
Cross Section : 0.2 mm² - 4 mm² ,
Color : gray ,

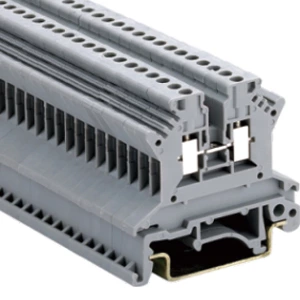

JHD5-1.5 - Feed-through terminal block
Type : Feed-through terminal block ,
Voltage : 500 V ,
Nominal Current : 24 A ,
Number Of Connections : 2 ,
Connection Method : Screw connection ,
Cross Section : 0.2 mm² - 4 mm² ,
Color : gray ,
