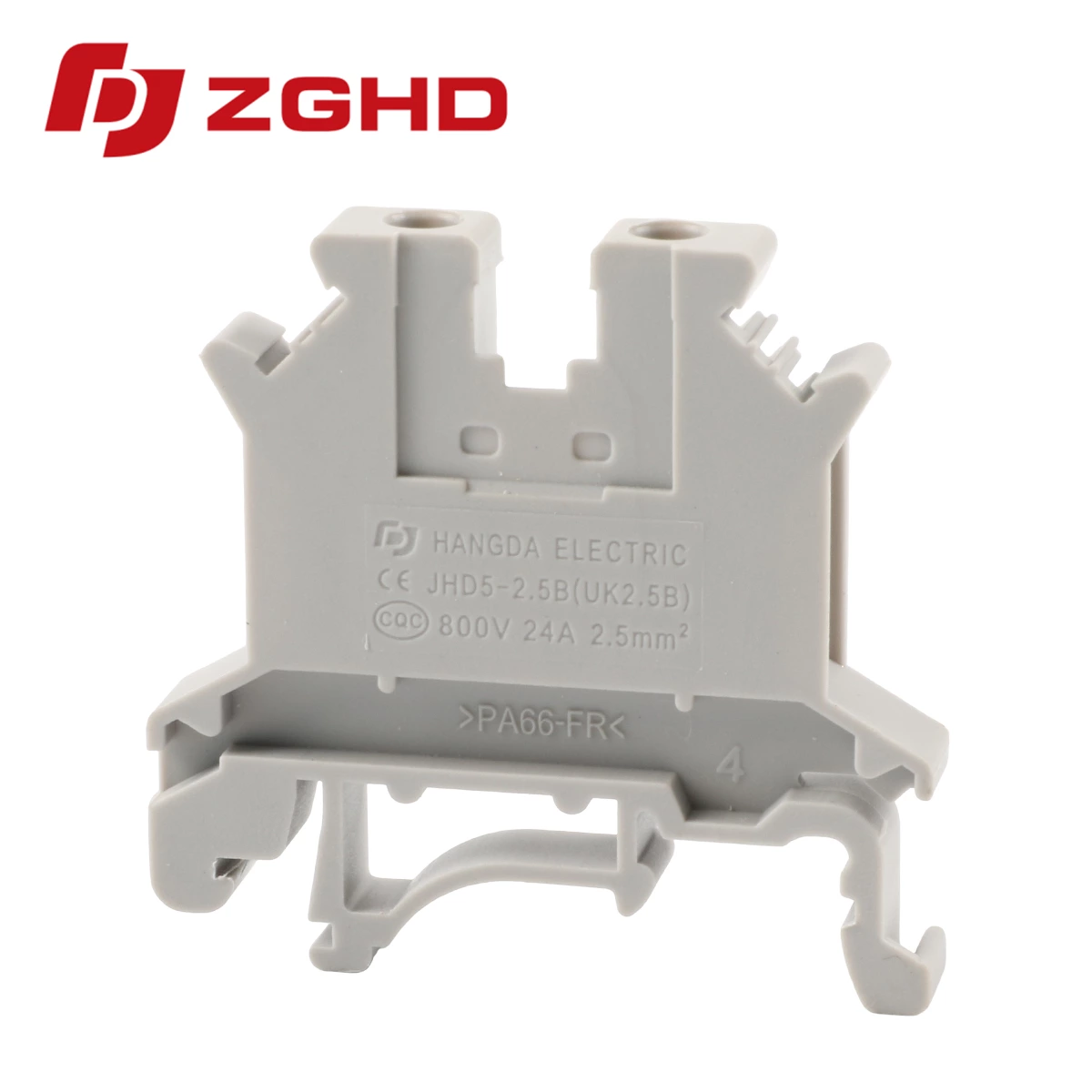

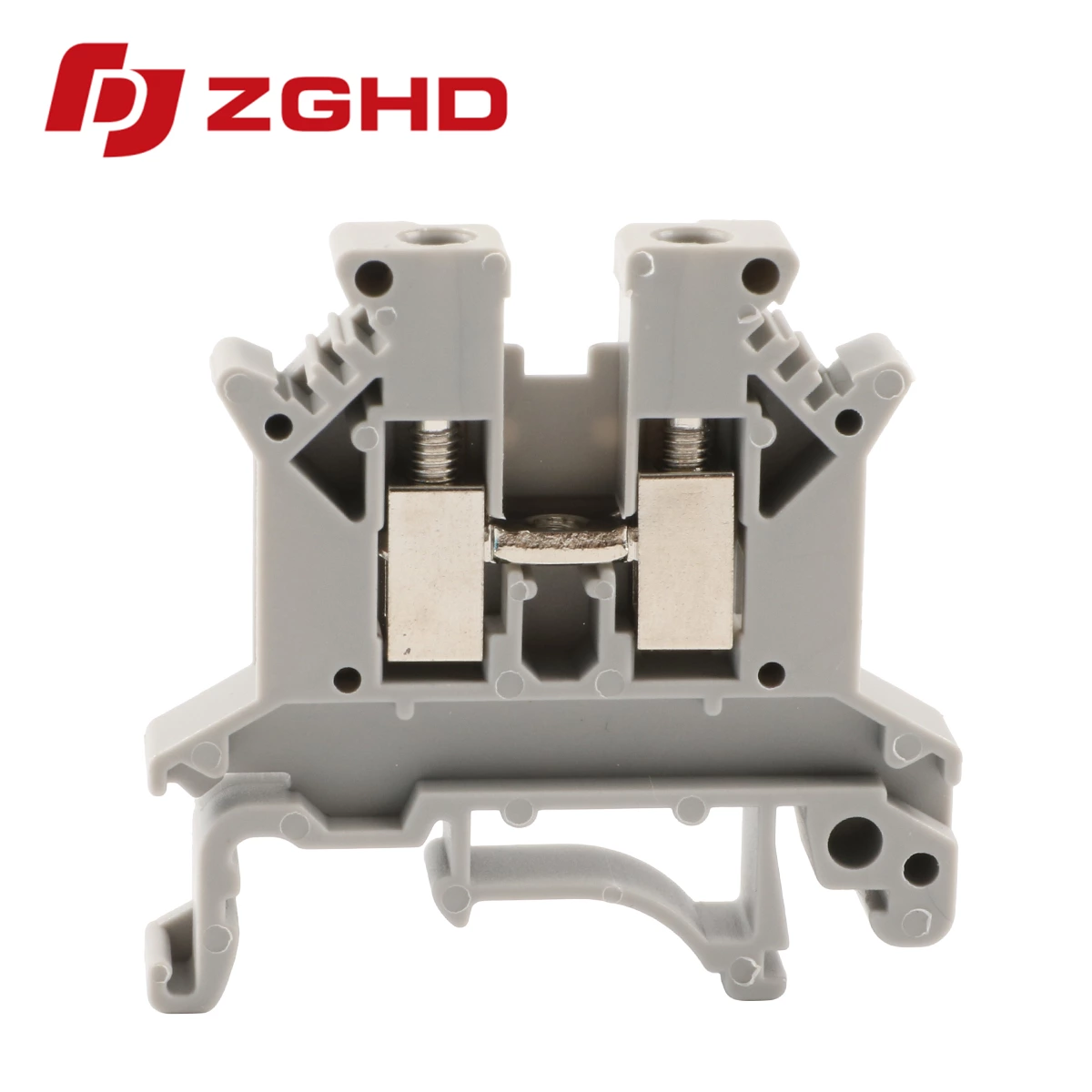

JHD5-2.5B - Feed-through terminal block
- Type:
- Feed-through terminal block
- Voltage:
- 800 V
- Nominal Current:
- 24 A
- Number Of Connections:
- 2
- Connection Method:
- Screw connection
- Cross Section:
- 0.2 mm² - 4 mm²
- Color:
- gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness |
| JHD5-2.5B |  |
2.5 mm² 1.5 mm² 2.5 mm² |
14 AWG 16 AWG 17 AWG |
6.2 mm |
| Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| 24 A | 100 | 6.2/42/42.5 | 800 V/24 A/2.5 mm² |
Specfication:
| End cover | D2.5B |
| Cross-connection 10-Polo,Separable | ZL2-4 ZL3-4 ZL10-4 |
| Insertion bridge 10-Polo,Separable | BLS2-2.5B BLS3-2.5B BLS10-2.5B |
| Partition plate | FP |
| Small Partition | CPK3 |
| Marking tags | ZB6 |
| Screw/Tightening torque(Nm) | M3/0.6 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

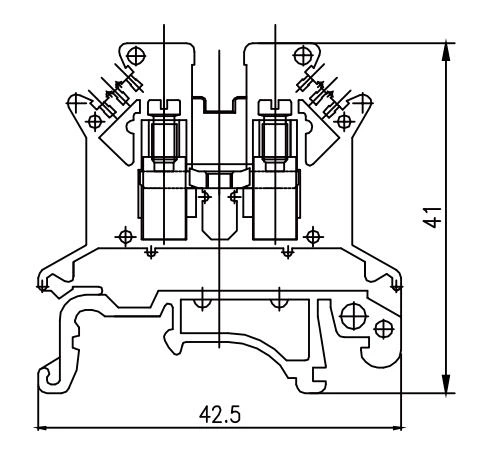

| Dimensions |  |

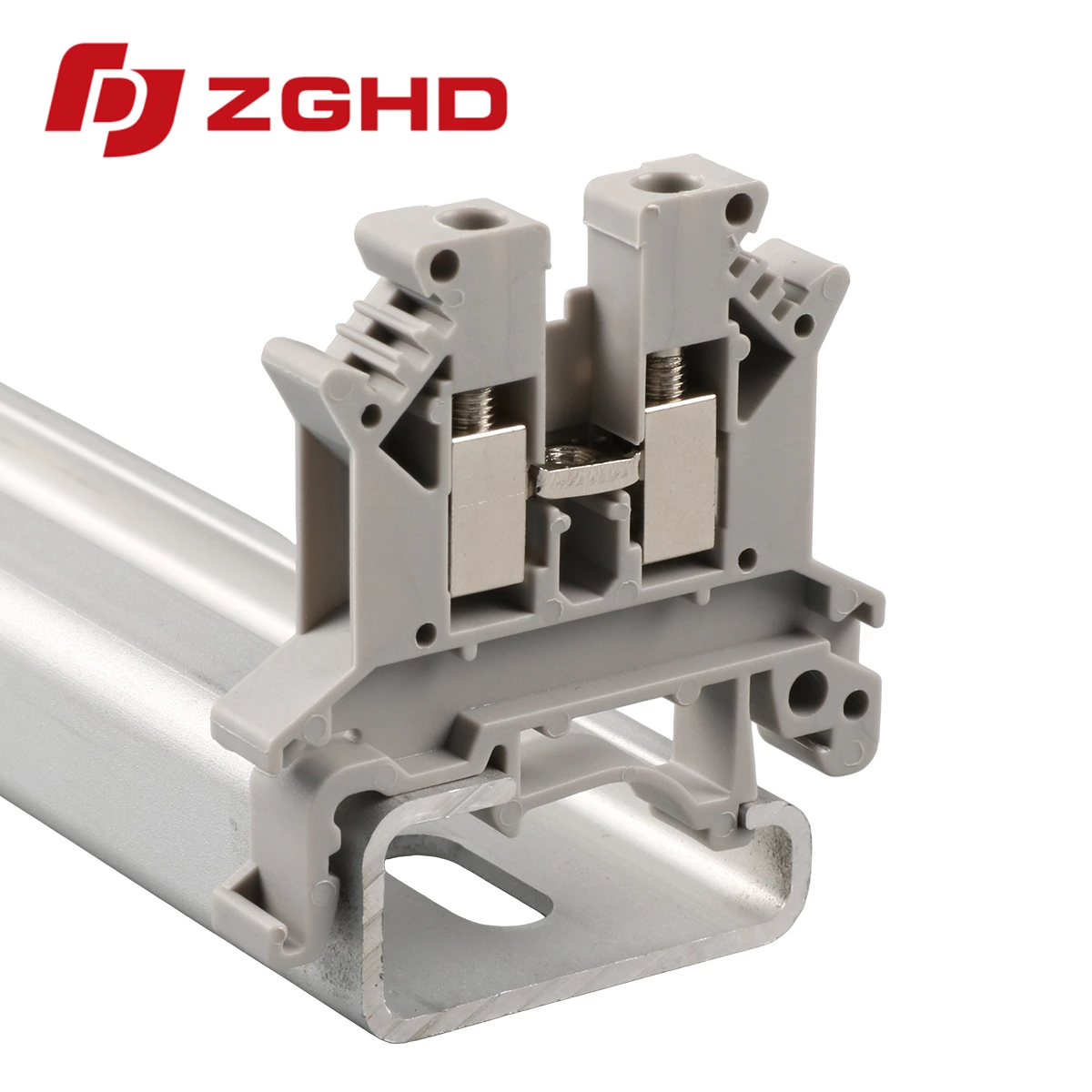

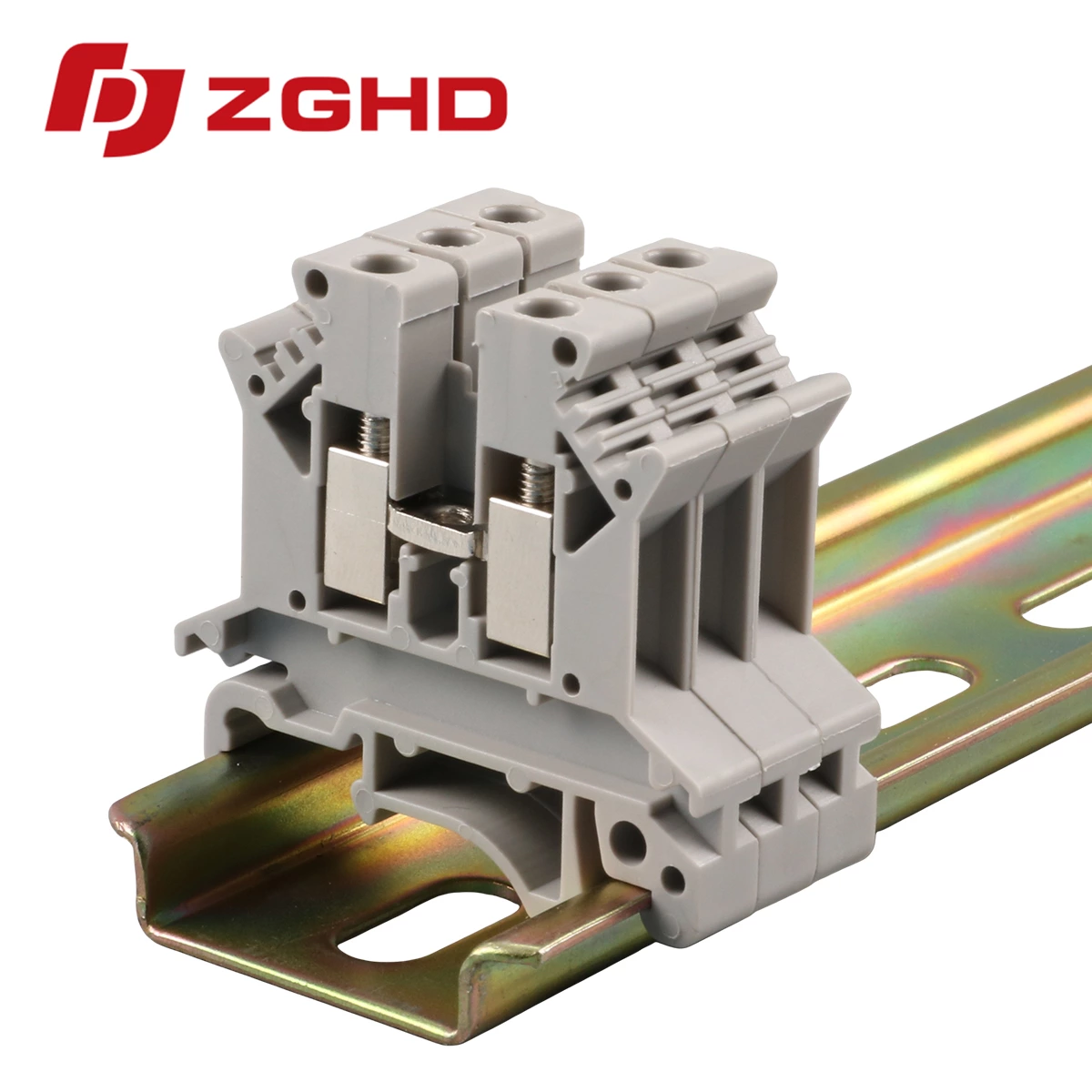

With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
