MJ3-2.5
- Number of packages:
- 20
- Rated voltage/Rated current/Rated cross-section:
- 660 V/120 A/2.5 mm²
- Material:
- PC
- Flame retardant rating UL-94:
- V2
- Thickness/Height/Width mm:
- 25/60/48
- MJ series small-scale busbar suitable for installation rails:
- G32-18(15)
- Screw/Tightening torque(Nm):
- M4/1.2
| Model | MJ3-2.5 |
| Number of packages | 20 |
Thickness/Height( )/Width mm |
25/60/48 |
| Rated voltage/Rated current/Rated cross-section | 660 V/120 A/2.5 mm² |
| Attachments | |
| MJ series small-scale busbar suitable for installation rails | G32-18(15) |
| Screw/Tightening torque(Nm) | M4/1.2 |
| Material | PC |
| Flame retardant rating UL-94 | V2 |

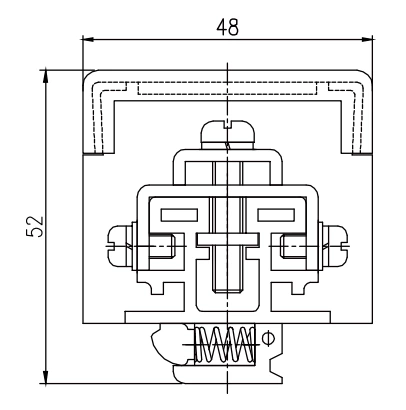

| Dimensions |  |
MJ Series Busbar Support / Barrier Terminal Strip – Up to 120A, AC 660V / DC 440V
The MJ series is designed for relay protection and DC control panels, rated up to AC 660V (50/60Hz) and DC 440V, supporting busbars up to 120A.
Four M4 screws on the top of the conductive part allow connection of up to four branch circuit wires (2.5 mm²), making multi-branch wiring simple and reliable.
Compatible with barrier terminal strip style installations, ensuring safe and efficient low-voltage distribution.
