MJ2-2.5G
- Material:
- PC
- Flame retardant rating UL-94:
- V2
| Model | MJ2-2.5G |
| Attachments | |
| Material | PC |
| Flame retardant rating UL-94 | V2 |

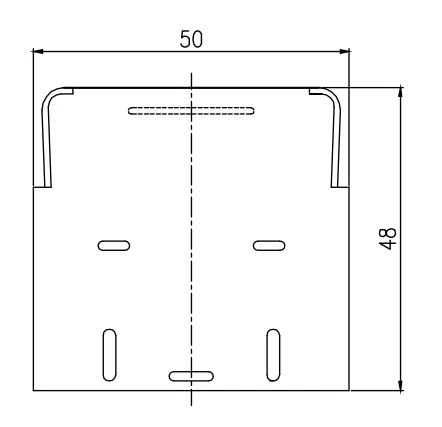

| Dimensions |  |
MJ Series Busbar Support / Barrier Terminal Strip – Up to 120A, AC 660V / DC 440V
The MJ series is designed for relay protection and DC control panels, rated up to AC 660V (50/60Hz) and DC 440V, supporting busbars up to 120A.
Four M4 screws on the top of the conductive part allow connection of up to four branch circuit wires (2.5 mm²), making multi-branch wiring simple and reliable.
Compatible with barrier terminal strip style installations, ensuring safe and efficient low-voltage distribution.
