Plug-in Terminal Blocks
The plug-in COMBI terminal blocks are a special form of hybrid terminal blocks. The terminal blocks have a standardized plug-in zone on one side and Push-in, screw, spring-cage or fast-connection technology on the other side. Due to the contact system, they can withstand extreme vibration levels. The plug-in terminal blocks save you a lot of time when carrying out signal and power wiring.

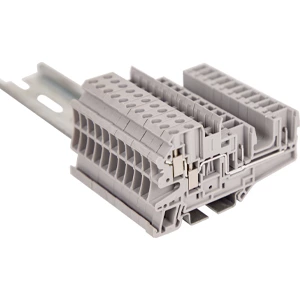

JHD5-4UT - Plug-in Terminal Blocks
Type : Feed-through terminal block ,
Voltage : 500 V ,
Nominal Current : 32 A ,
Number Of Connections : 4 ,
Connection Method : Screw/plug-in connection ,
Rated Cross Section : 4 mm² ,
Cross Section : 0.14 mm² - 6 mm² ,
Color : gray ,

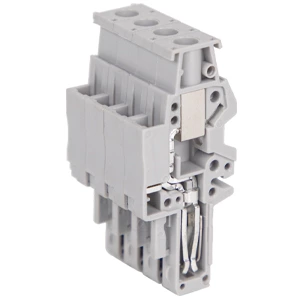

JHD5-4UP - Plug-in Terminal Blocks
Type : Plug ,
Voltage : 800 V ,
Nominal Current : 32 A ,
Number Of Positions : 4 ,
Connection Method : Screw connection ,
Rated Cross Section : 4 mm² ,
Cross Section : 0.14 mm²- 6 mm² ,
Color : gray ,

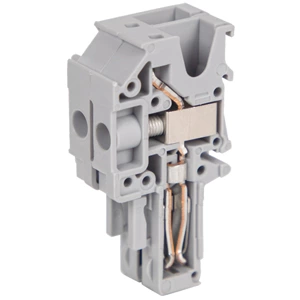

JHD5-4UPH - Plug-in Terminal Blocks
Type : Plug ,
Voltage : 800 V ,
Nominal Current : 32 A ,
Number Of Positions : 2 ,
Connection Method : Screw connection ,
Rated Cross Section : 4 mm² ,
Cross Section : 0.2 mm²- 6 mm² ,
Color : gray ,
