JHD5-4UPH - Plug-in Terminal Blocks
- Type:
- Plug
- Voltage:
- 800 V
- Nominal Current:
- 32 A
- Number Of Positions:
- 2
- Connection Method:
- Screw connection
- Rated Cross Section:
- 4 mm²
- Cross Section:
- 0.2 mm²- 6 mm²
- Color:
- gray
| Number of packages | 50 |
Thickness/Height( )Width mm |
6.2/41.2/21 |
| Rated voltage/rated current/rated cross-section | 500 V/32 A/4 mm² |
| Plug-in bridge connectors | FBS 2-6、FBS 3-6、FBS 4-6、FBS 5-6、FBS 10-6 |
| Stripping length | 9 mm |
| Marking tags | ZB4UP |
| Screw/Tightening torque(Nm) | M3/0.6 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

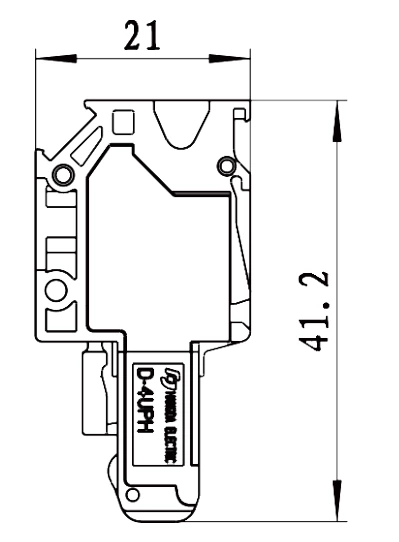

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
