Efficient Installation And Advantages Of Cold Shrink Cable Accessories

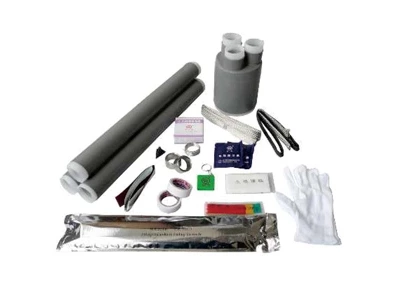

Cold shrink cable accessories provide a streamlined approach to electrical insulation and sealing without requiring specialized heating tools. These pre-stretched components sit on a removable plastic core, allowing for quick deployment in various field conditions. This technology ensures a constant radial pressure that maintains a tight seal throughout the cable's operational life.

Application of cold-shrink cable technology

The primary benefit of electrical cold shrink solutions lies in their mechanical tension. Unlike heat-shrinkable alternatives, these sleeves adapt to the natural expansion and contraction of cables during thermal cycling. This flexibility prevents gaps from forming, which significantly reduces the risk of moisture ingress or electrical tracking in high-voltage environments.

Simplified Deployment Process

The installation of cold shrink cable accessories involves a few straightforward steps that minimize human error:

1. Position the sleeve over the prepared cable joint or termination point.

2. Unwind the internal plastic cord in a counter-clockwise direction.

3. Allow the EPDM cold shrink material to collapse onto the substrate.

4. Verify the placement to ensure a uniform seal across the entire connection.

Durability of EPDM Cold Shrink Materials

Material science plays a critical role in the longevity of these accessories. Most high-quality cool shrink products utilize Ethylene Propylene Diene Monomer (EPDM) rubber. This specific polymer offers exceptional resistance to ultraviolet light, ozone, and harsh chemical exposure, making it ideal for both underground and overhead utility applications.

Technical Performance Metrics

• Dielectric Strength: Typically exceeds 20 kV/mm for reliable insulation.

• Temperature Range: Maintains flexibility from -40°C up to 150°C.

• Water Immersion: Meets ANSI C119.1 standards for waterproof sealing.

• Tensile Strength: High elasticity allows for up to 300% elongation before breaking.

Improving Operational Safety in the Field

Safety is a paramount concern for technicians working in confined spaces or hazardous locations. Since cold shrink cable accessories do not require open flames or heat guns, they eliminate the need for "hot work" permits in many industrial settings. This feature speeds up the project timeline while protecting the physical integrity of the surrounding cable jacket.

Versatile Application Scenarios

Technicians frequently apply these solutions in the following areas:

• Sealing power cables in moisture-prone manholes and trenches.

• Insulating secondary splices for street lighting and traffic signals.

• Protecting digester and wastewater treatment plant electrical connections.

• Repairing damaged outer jackets on industrial portable cords.
