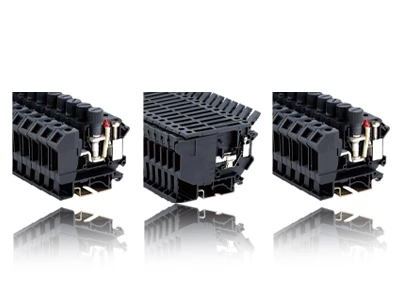

Push-in Terminals Are Based On A Precise "elastic Self-locking" Principle

Push-in terminal blocks leverage a sophisticated internal spring mechanism designed for permanent, vibration-proof connections. Unlike traditional screw-based systems that rely on manual torque, this technology utilizes a high-strength stainless steel spring to apply constant pressure on the conductor. This design ensures that electrical contact remains stable even under extreme thermal cycling or mechanical stress.

Technical Advantages of Elastic Connection Technology

The core functionality of a push fit terminal block centers on the "leg spring" design. When a solid or ferruled wire is inserted, the spring deflects, creating a high contact force against the copper busbar. This automatic locking mechanism eliminates the risk of loose connections, which is a primary cause of electrical fires in industrial control cabinets.

• Tool-free termination: Simply push the wire into the entry port to secure the connection.

• Vibration resistance: The constant spring pressure compensates for wire settling and external shocks.

• Maintenance-free operation: Periodic retightening of screws is no longer necessary.

• Space efficiency: Compact housing designs allow for higher wiring density on standard mounting rails.

Optimizing Wire Management on DIN Rails

Integrating push fit din rail terminals into your control system streamlines the assembly process. The internal geometry of the push in type terminal block is engineered to guide the conductor directly into the clamping zone. For stranded wires, a simple actuation of the colored pusher opens the spring, allowing for easy insertion without damaging delicate copper strands.

Enhancing Reliability in Harsh Environments

1. Corrosion Protection: High-grade electrolytic copper busbars with tin plating prevent oxidation.

2. Thermal Stability: Housing materials rated for -40 to 105 degrees Celsius maintain structural integrity.

3. Color Coding: Intuitive visual indicators prevent wiring errors during high-speed production.

4. Universal Compatibility: Designed to fit seamlessly onto 35mm global standard rail profiles.
