High-current & Power Distribution Terminal Blocks
High-current and power distribution terminal blocks are designed for reliable connection of large cross-section conductors.
With high mechanical strength and excellent current-carrying capacity, these terminal blocks are ideal for power distribution, energy systems, switchgear, and heavy-duty industrial applications.

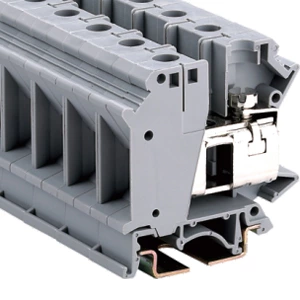

JHD5-35 - Installation terminal block
Type : Installation terminal block ,
Voltage : 800 V ,
Nominal Current : 125 A ,
Connection Method : Screw connection ,
Rated Cross Section : 35 mm² ,
Cross Section : 0.75 mm² - 35 mm² ,
Color : gray ,

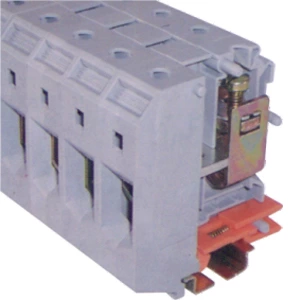

JHD5-150 - High-current terminal block
Type : High-current terminal block ,
Voltage : 1000 V ,
Nominal Current : 309 A ,
Number Of Connections : 2 ,
Connection Method : Screw connection ,
Rated Cross Section : 150 mm² ,
Cross Section : 35 mm² - 150 mm² ,
Color : gray ,

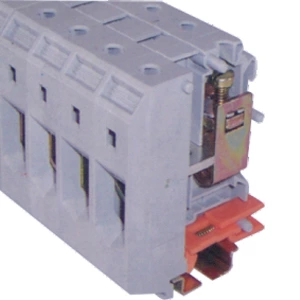

JHD5-95 - High-current terminal block
Type : High-current terminal block ,
Voltage : 1000 V ,
Nominal Current : 232 A ,
Number Of Connections : 2 ,
Connection Method : Screw connection ,
Rated Cross Section : 95 mm² ,
Cross Section : 25 mm² - 95 mm² ,
Color : gray ,

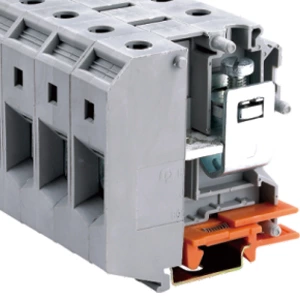

JHD5-50 - High-current terminal block
Type : High-current terminal block ,
Voltage : 1000 V ,
Nominal Current : 150 A ,
Number Of Connections : 2 ,
Number Of Positions : 1 ,
Connection Method : Screw connection ,
Rated Cross Section : 50 mm² ,
Cross Section : 16 mm² - 70 mm² ,
Color : gray ,
