JHD5-95 - High-current terminal block
- Type:
- High-current terminal block
- Voltage:
- 1000 V
- Nominal Current:
- 232 A
- Number Of Connections:
- 2
- Connection Method:
- Screw connection
- Rated Cross Section:
- 95 mm²
- Cross Section:
- 25 mm² - 95 mm²
- Color:
- gray

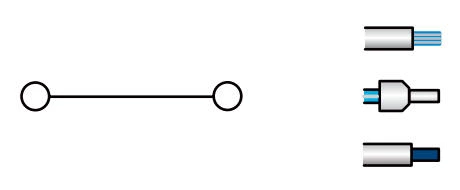

| Model | Function | Wire IEC cross-section | Wire UL | Thickness |
| JHD5-95 |  |
95 mm² 50 mm² 120 mm² |
000 AWG 000 AWG |
25 mm |
| Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| 232 A | 9 | 25/97.5/83 | 1000/232 A/95 mm² |
Specfication:
| Marking tags | ZB10 |
| Screw/Tightening torque(Nm) | M8/3.5 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

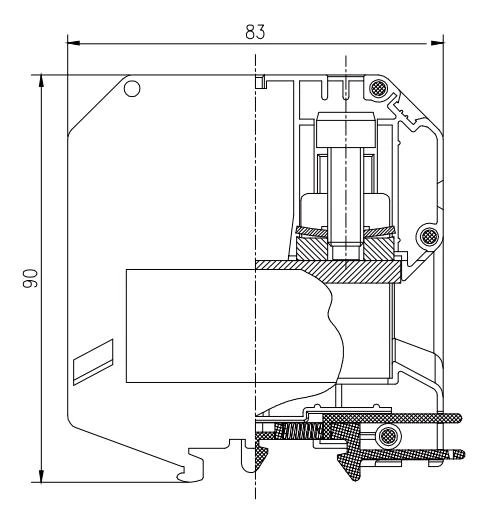

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
