JHD5-35 - Installation terminal block
- Type:
- Installation terminal block
- Voltage:
- 800 V
- Nominal Current:
- 125 A
- Connection Method:
- Screw connection
- Rated Cross Section:
- 35 mm²
- Cross Section:
- 0.75 mm² - 35 mm²
- Color:
- gray

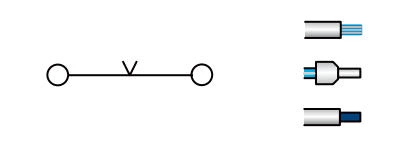

| Model | Function | Wire IEC cross-section | Wire UL | Thickness |
| JHD5-35 |  |
35 mm² 35 mm² 35 mm² |
0 AWG 2 AWG 0 AWG |
15.2 mm |
| Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| 125 A | 32 | 15.2/51/55 | 800/125 A/35 mm² |
Specfication:
| End cover | CP |
| Cross-connection 10-Polo,Separable | ZL2-35 ZL3-35 |
| Marking tags | ZB10 |
| Screw/Tightening torque(Nm) | M6/2.5 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

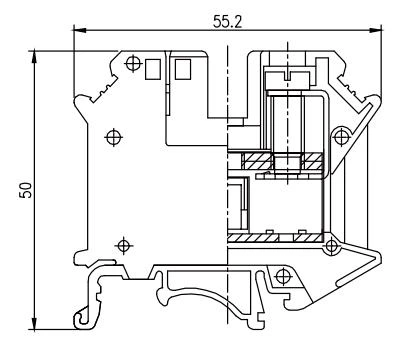

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
