Feed-through terminal blocks, multi-conductor terminal blocks, and multi-level terminal blocks
Feed-through, multi-level, and multi-conductor terminal blocks are designed to provide efficient and space-saving wiring solutions for industrial applications.
These terminal blocks allow the connection of two or more conductors within a single unit, helping to optimize panel space and simplify wiring layout.
With flexible bridging options and clear marking systems, they ensure easy installation, reliable connections, and improved organization in control cabinets and electrical systems.

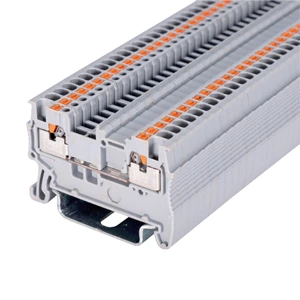

JHD1-1.5 - Feed-through terminal block
Type : Feed-through terminal block ,
Nominal Voltage : 500 V ,
Nominal Current : 17.5 A ,
Number Of Connections : 2 ,
Connection Method : Push-in connection ,
Rated Cross Section : 1.5 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.14 mm² - 1.5 mm² ,
Color : gray ,

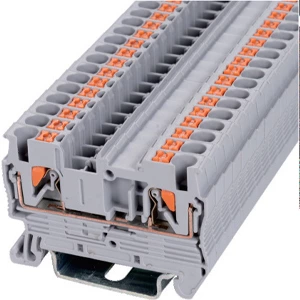

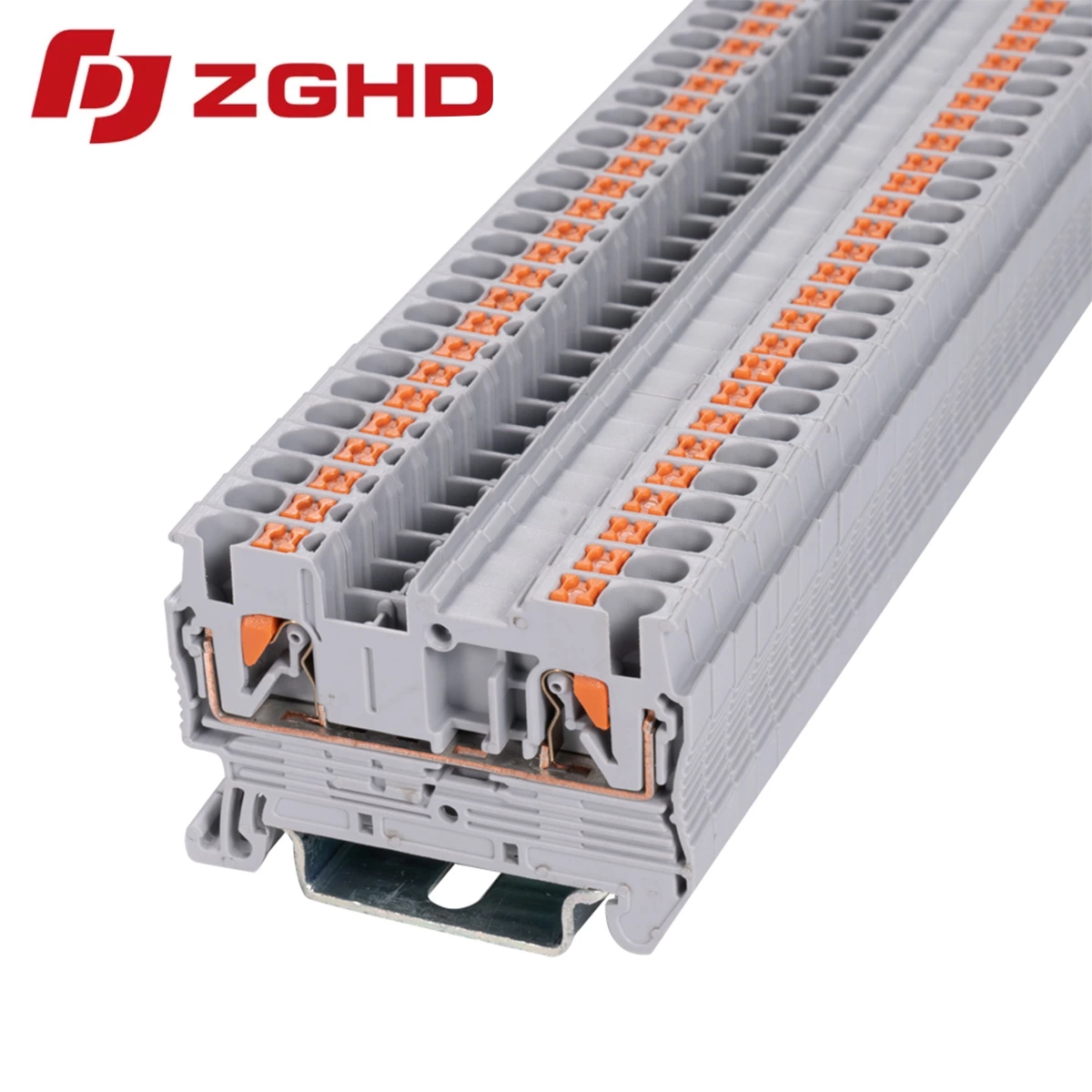

JHD1-2.5 - Feed-through terminal block
Type : Feed-through terminal block ,
Nominal Voltage : 800 V ,
Nominal Current : 24 A ,
Number Of Connections : 2 ,
Number Of Positions : 1 ,
Connection Method : Push-in connection ,
Rated Cross Section : 2.5 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.14 mm² - 4 mm² ,
Color : gray ,

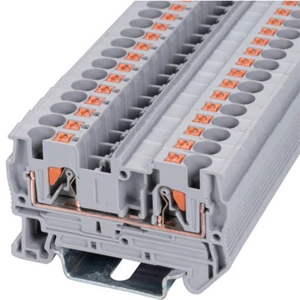

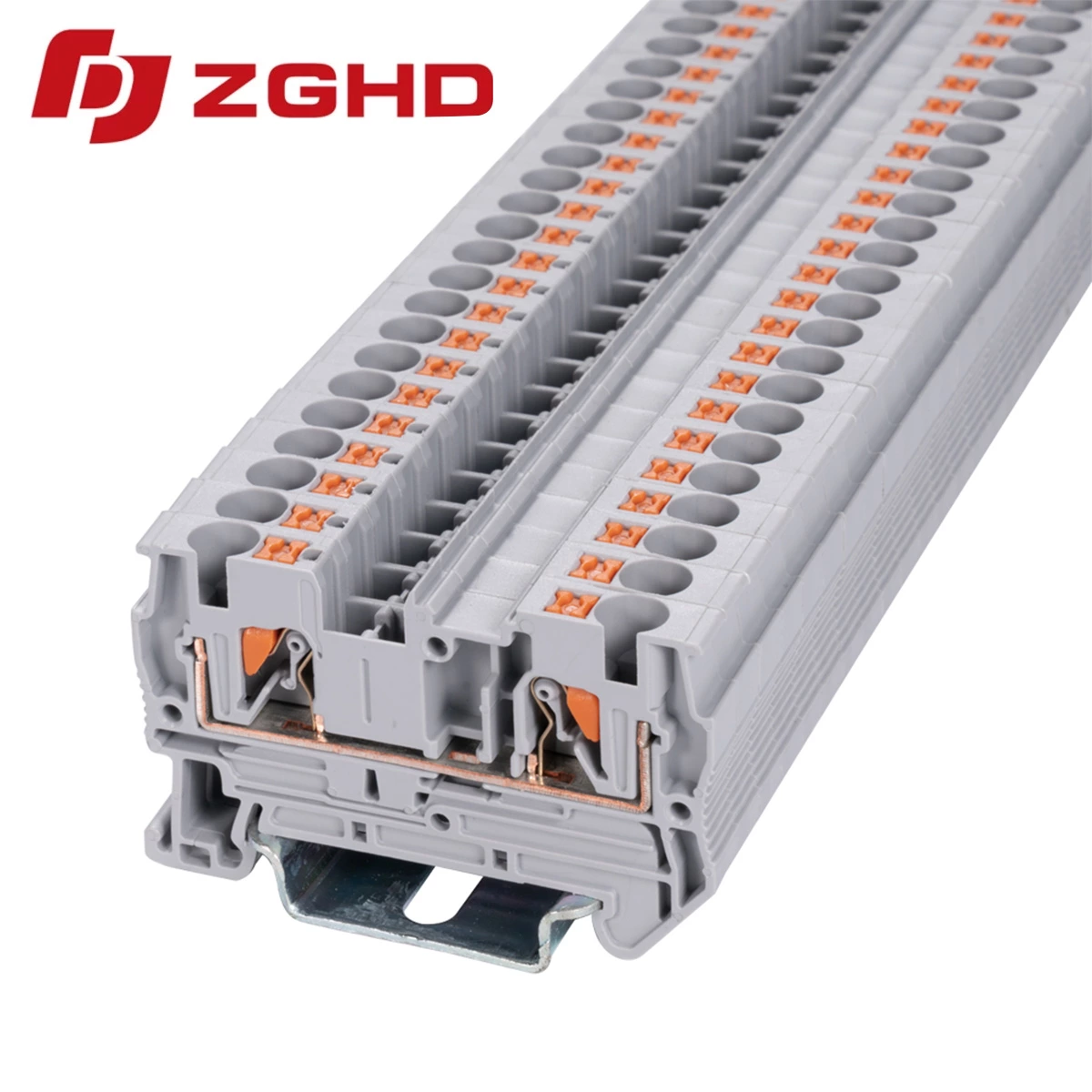

JHD1-4 - Feed-through terminal block
Type : Feed-through terminal block ,
Nominal Voltage : 800 V ,
Nominal Current : 32 A ,
Number Of Connections : 2 ,
Number Of Positions : 1 ,
Connection Method : Push-in connection ,
Rated Cross Section : 4 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.2 mm² - 6 mm² ,
Color : gray ,

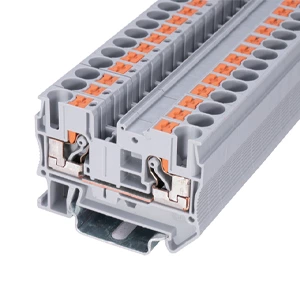

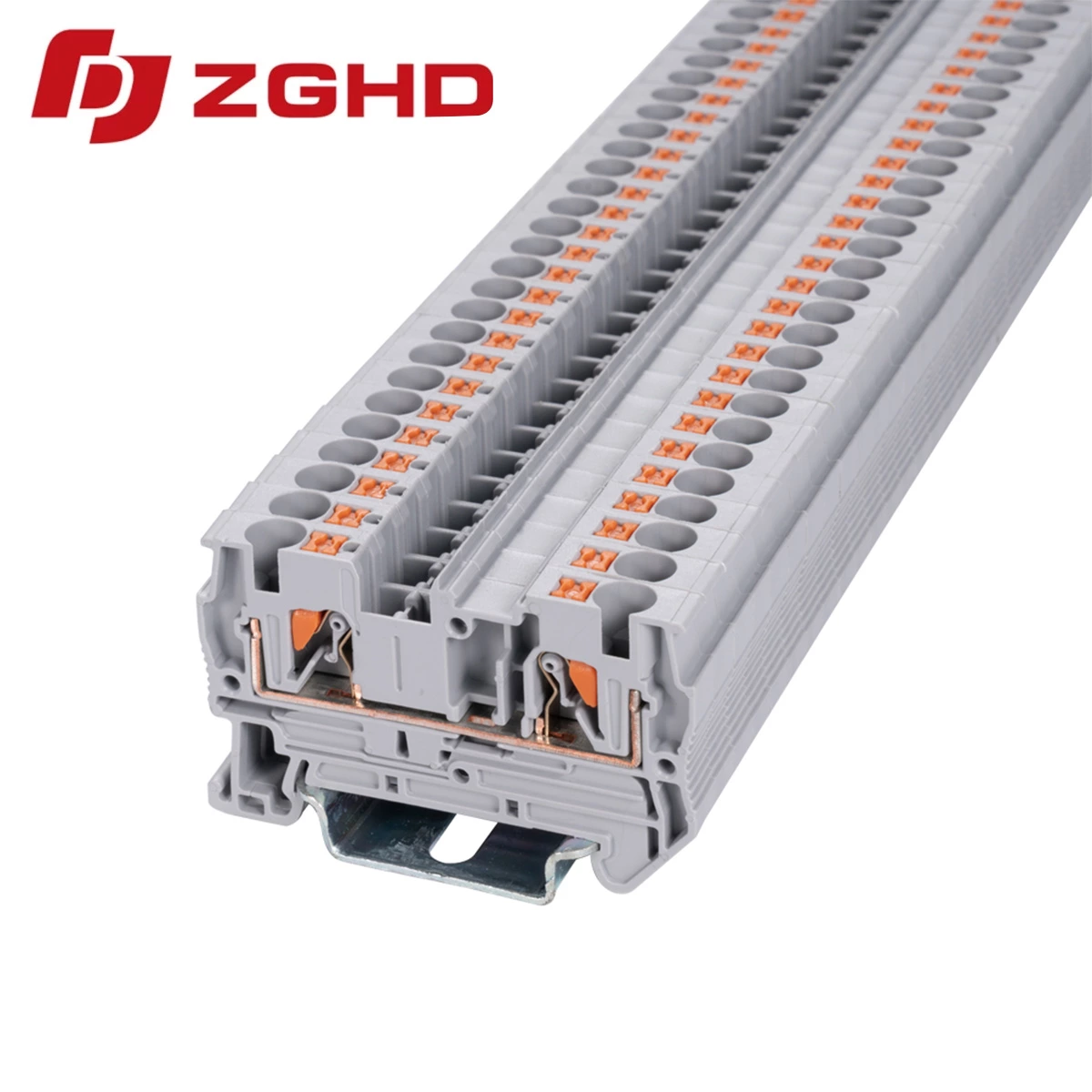

JHD1-6 - Feed-through terminal block
Type : Feed-through terminal block ,
Nominal Voltage : 1000 V ,
Nominal Current : 41 A ,
Number Of Connections : 2 ,
Number Of Positions : 1 ,
Connection Method : Push-in connection ,
Rated Cross Section : 6 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.5 mm² - 10 mm² ,
Color : gray ,

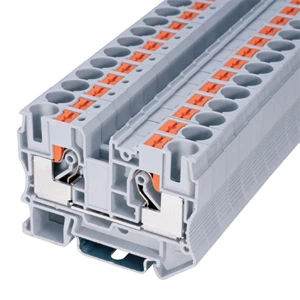

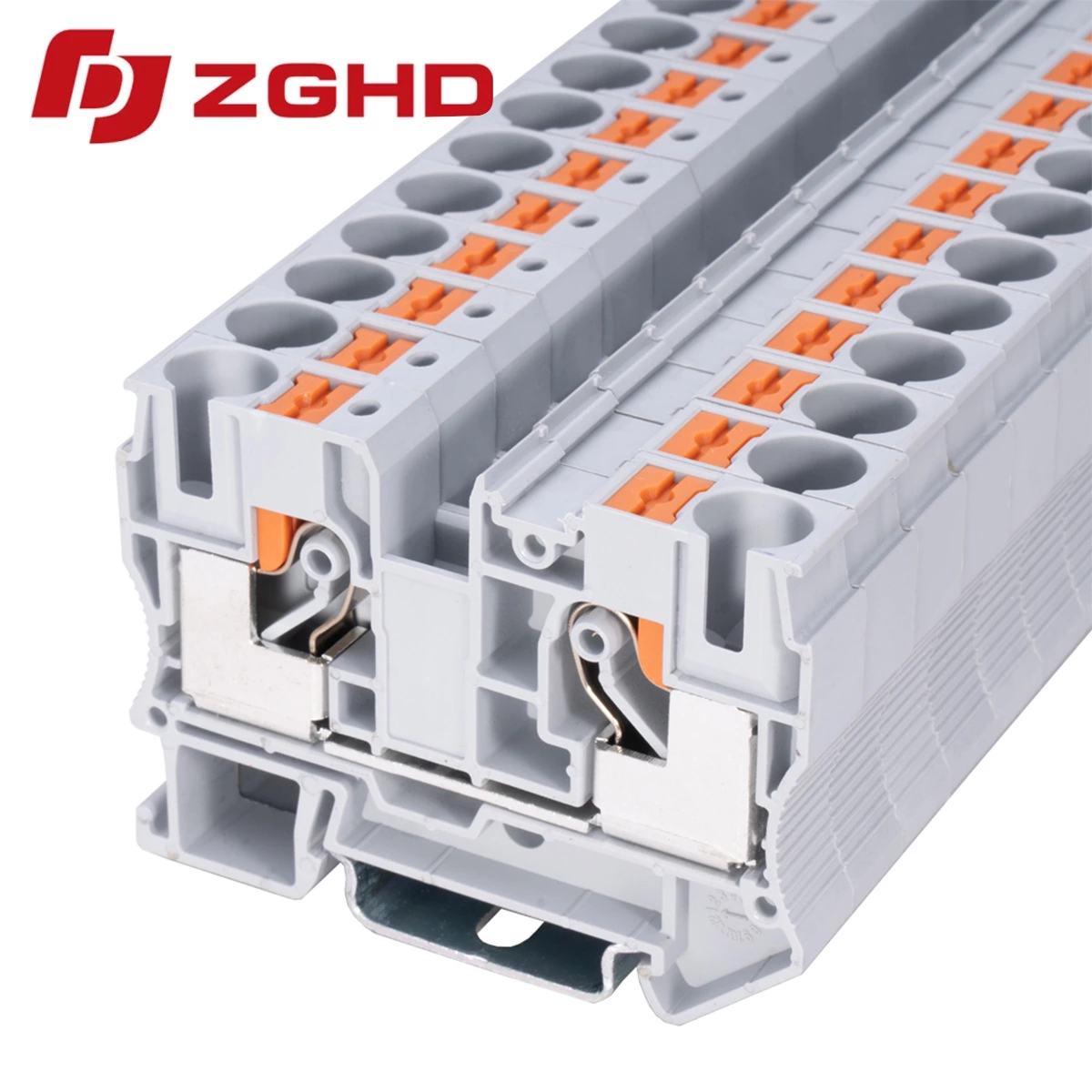

JHD1-10 - Feed-through terminal block
Type : Feed-through terminal block ,
Nominal Voltage : 1000 V ,
Nominal Current : 57 A ,
Number Of Connections : 2 ,
Rated Cross Section : 10 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.5 mm² - 16 mm² ,
Color : gray ,
JHD1-16 - Feed-through terminal block
Type : Feed-through terminal block ,
Nominal Voltage : 1000 V ,
Nominal Current : 76 A ,
Number Of Connections : 2 ,
Connection Method : Push-in connection ,
Rated Cross Section : 16 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.5 mm² - 25 mm² ,
Color : gray ,
JHD1-1.5/1-2 - Feed-through terminal block
Type : Multi-conductor terminal block ,
Nominal Voltage : 500 V ,
Nominal Current : 17.5 A ,
Number Of Connections : 3 ,
Connection Method : Push-in connection ,
Rated Cross Section : 1.5 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.14 mm² - 1.5 mm² ,
Color : gray ,

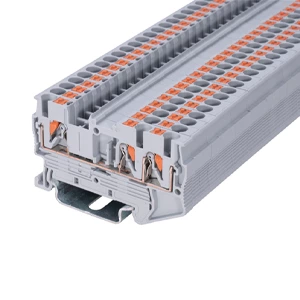

JHD1-2.5/1-2 - Feed-through terminal block
Type : Multi-conductor terminal block ,
Nominal Voltage : 800 V ,
Nominal Current : 24 A ,
Number Of Connections : 3 ,
Connection Method : Push-in connection ,
Rated Cross Section : 2.5 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.14 mm² - 4 mm² ,
Color : gray ,

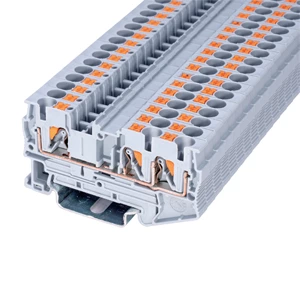

JHD1-4/1-2 - Feed-through terminal block
Type : Multi-conductor terminal block ,
Nominal Voltage : 800 V ,
Nominal Current : 32 A ,
Number Of Connections : 3 ,
Connection Method : Push-in connection ,
Rated Cross Section : 4 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.2 mm² - 6 mm² ,
Color : gray ,
JHD1-1.5/2-2 - Feed-through terminal block
Type : Multi-conductor terminal block ,
Nominal Voltage : 500 V ,
Nominal Current : 17.5 A ,
Number Of Connections : 4 ,
Connection Method : Push-in connection ,
Rated Cross Section : 1.5 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.14 mm² - 1.5 mm² ,
Color : gray ,

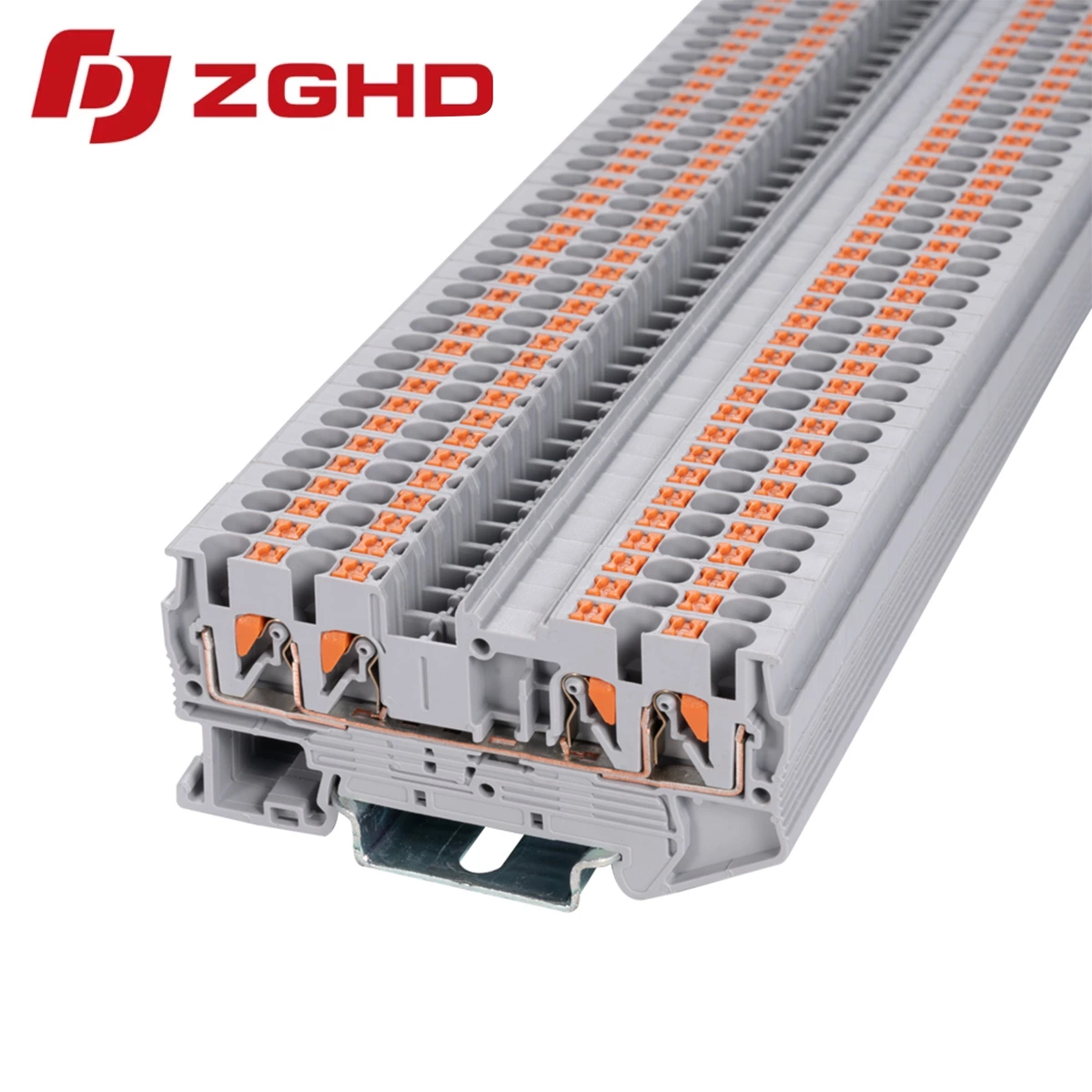

JHD1-2.5/2-2 - Feed-through terminal block
Type : Multi-conductor terminal block ,
Nominal Voltage : 800 V ,
Nominal Current : 24 A ,
Number Of Connections : 4 ,
Connection Method : Push-in connection ,
Rated Cross Section : 2.5 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.14 mm² - 4 mm² ,
Color : gray ,

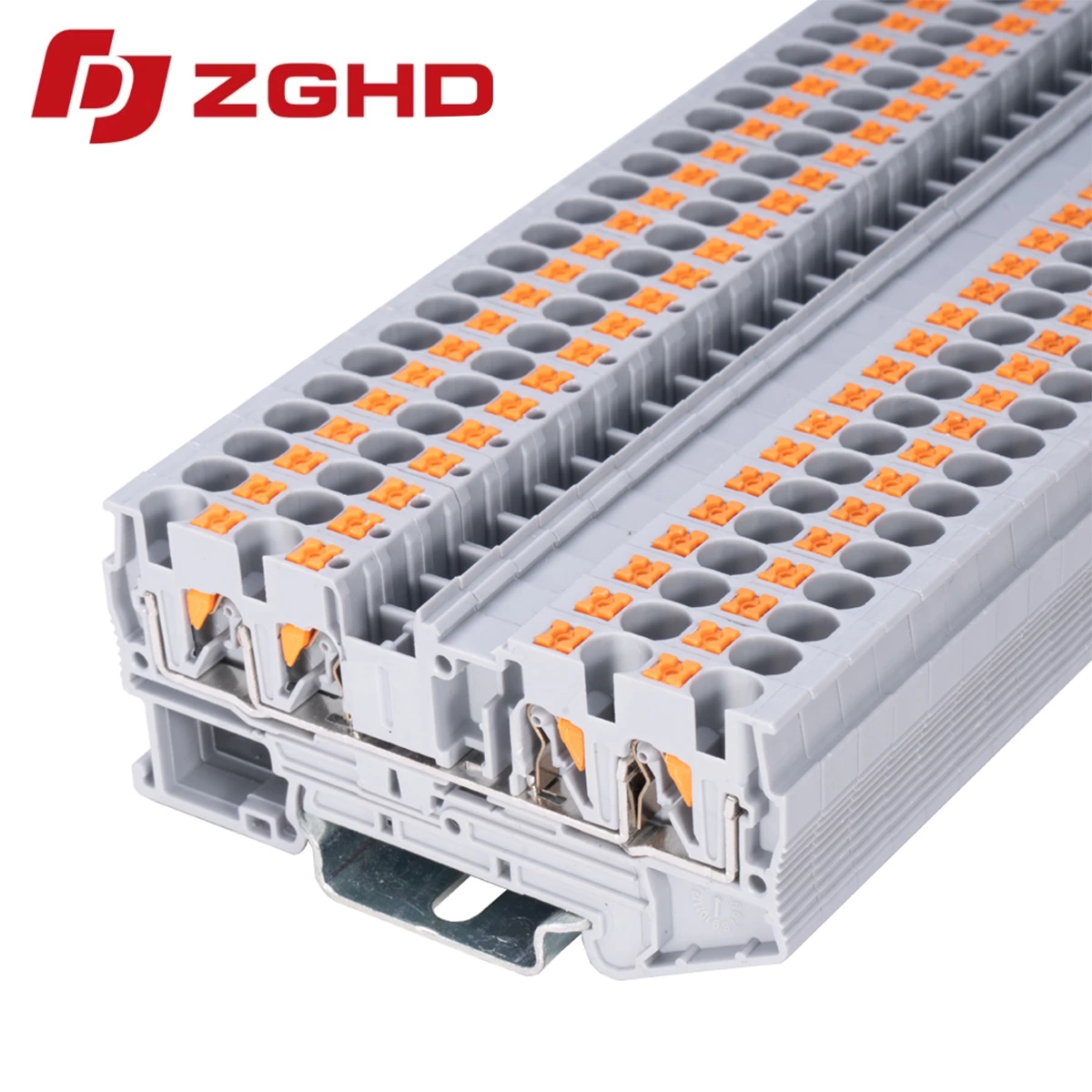

JHD1-4/2-2 - Feed-through terminal block
Type : Multi-conductor terminal block ,
Nominal Voltage : 800 V ,
Nominal Current : 32 A ,
Number Of Connections : 4 ,
Connection Method : Push-in connection ,
Rated Cross Section : 4 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.2 mm² - 6 mm² ,
Color : gray ,
JHD1-6/2-2 - Feed-through terminal block
Type : Multi-conductor terminal block ,
Nominal Voltage : 1000 V ,
Nominal Current : 41 A ,
Number Of Connections : 4 ,
Connection Method : Push-in connection ,
Rated Cross Section : 6 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.5 mm² - 10 mm² ,
Color : gray ,
JHD1-1.5C - Double-level terminal block
Type : Double-level terminal block ,
Nominal Voltage : 500 V ,
Nominal Current : 16 A ,
Connection Method : Push-in connection, 1st and 2nd level ,
Rated Cross Section : 1.5 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.14 mm² - 1.5 mm² ,
Color : gray ,
JHD1-2.5C - Double-level terminal block
Type : Double-level terminal block ,
Nominal Voltage : 800 V ,
Nominal Current : 24 A ,
Connection Method : Push-in connection, 1st and 2nd level ,
Rated Cross Section : 2.5 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.14 mm² - 4 mm² ,
Color : gray ,
JHD1-4C - Double-level terminal block
Type : Double-level terminal block ,
Nominal Voltage : 800 V ,
Nominal Current : 32 A ,
Connection Method : Push-in connection, 1st and 2nd level ,
Rated Cross Section : 4 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.2 mm² - 6 mm² ,
Color : gray ,
