Grounding & Protective Conductor Terminal Blocks
Grounding and protective conductor terminal blocks are designed to ensure safe and reliable earthing in electrical installations.
These terminal blocks provide a secure connection between protective conductors and DIN rails, establishing a consistent grounding path throughout the system.
With low contact resistance and robust clamping design, they ensure effective fault current dissipation and long-term connection stability.
Their standardized design allows quick installation on DIN rails, while clear green-yellow identification supports safe and compliant wiring practices in accordance with international standards.
JHD1-35JD - Protective conductor terminal
Type : Protective conductor terminal block ,
Number Of Connections : 2 ,
Connection Method : PowerTurn connection ,
Rated Cross Section : 35 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 2.5 mm² - 35 mm² ,
Color : green-yellow ,

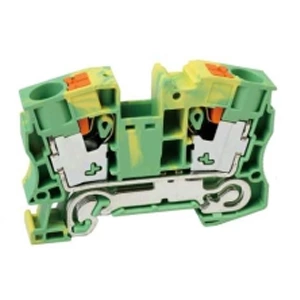

JHD1-16JD - Protective conductor terminal
Type : Protective conductor terminal block ,
Number Of Connections : 2 ,
Connection Method : Push-in connection ,
Rated Cross Section : 16 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.5 mm² - 25 mm² ,
Color : green-yellow ,

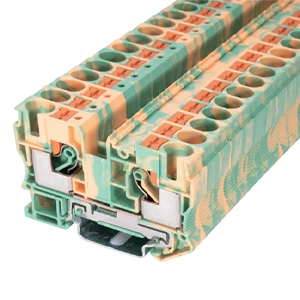

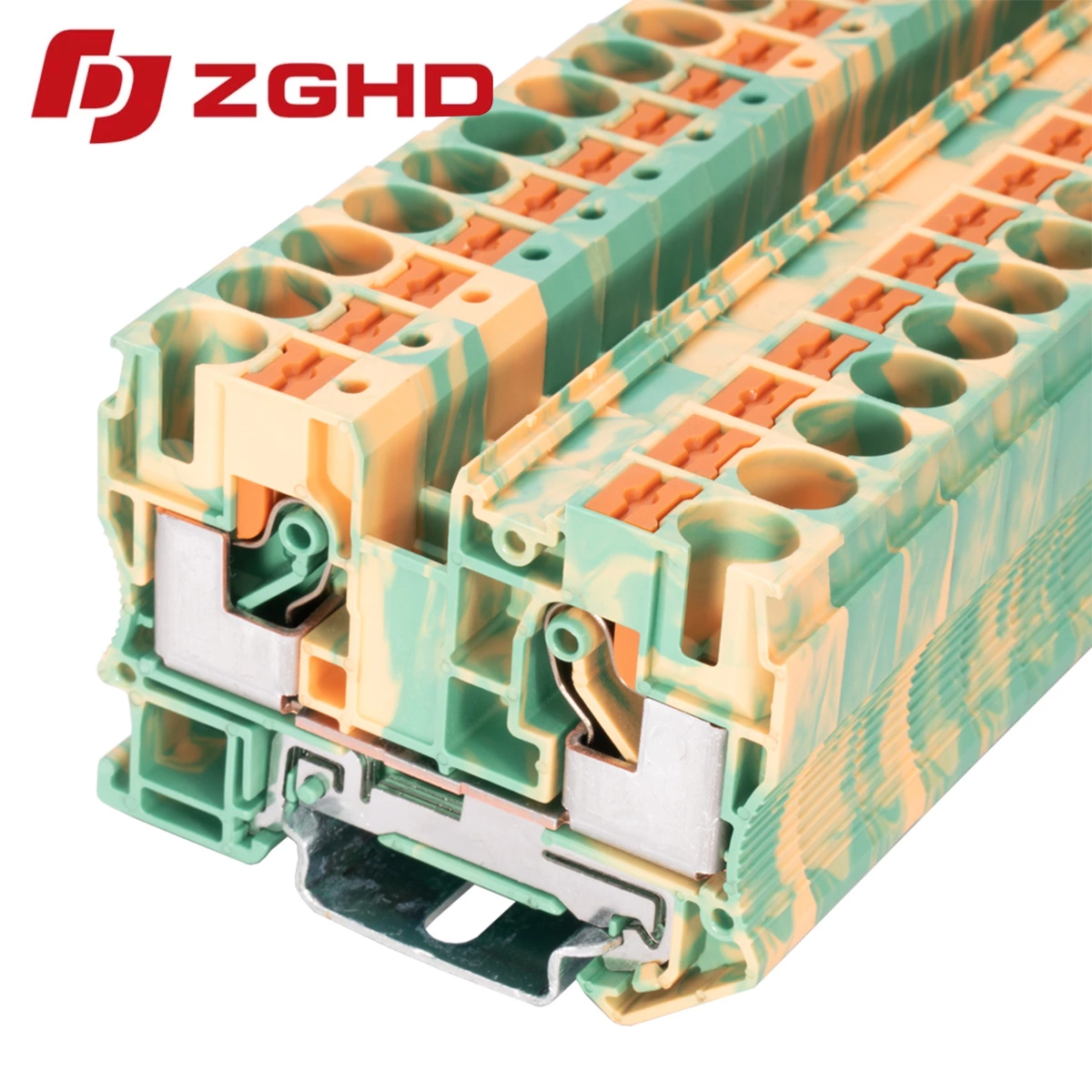

JHD1-10JD - Protective conductor terminal
Type : Protective conductor terminal block ,
Number Of Connections : 2 ,
Connection Method : Push-in connection ,
Rated Cross Section : 10 mm² ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.5 mm² - 16 mm² ,
Color : green-yellow ,

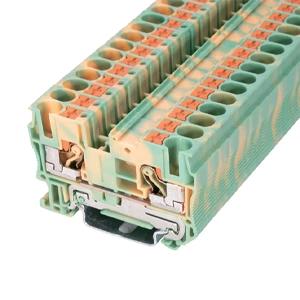

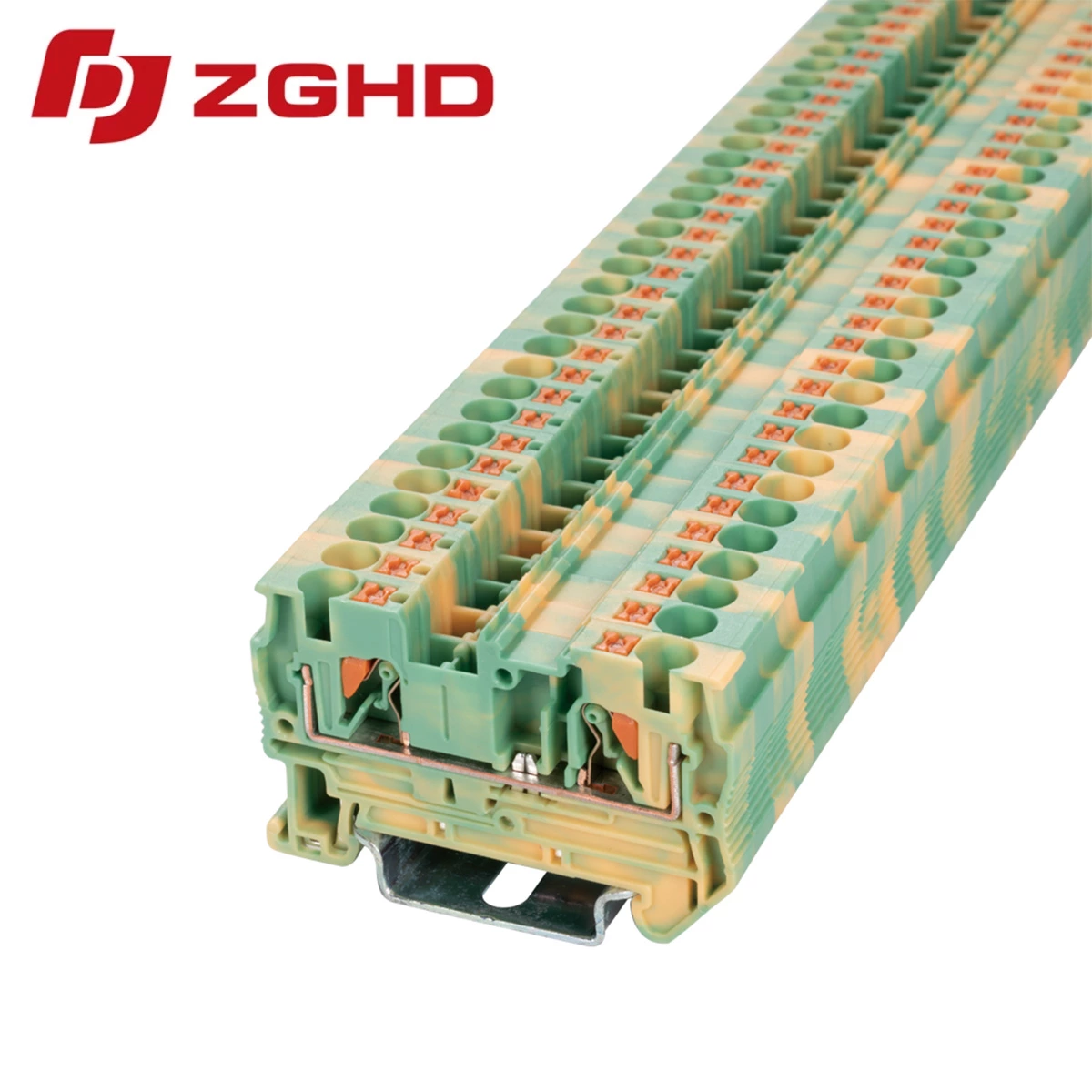

JHD1-6JD - Protective conductor terminal
Type : Protective conductor terminal block ,
Number Of Connections : 2 ,
Number Of Positions : 1 ,
Connection Method : Push-in connection ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.5 mm² - 10 mm² ,
Color : green-yellow ,

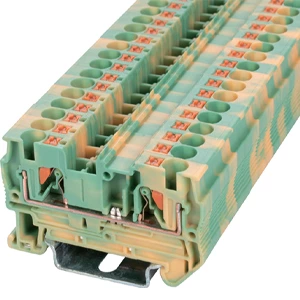

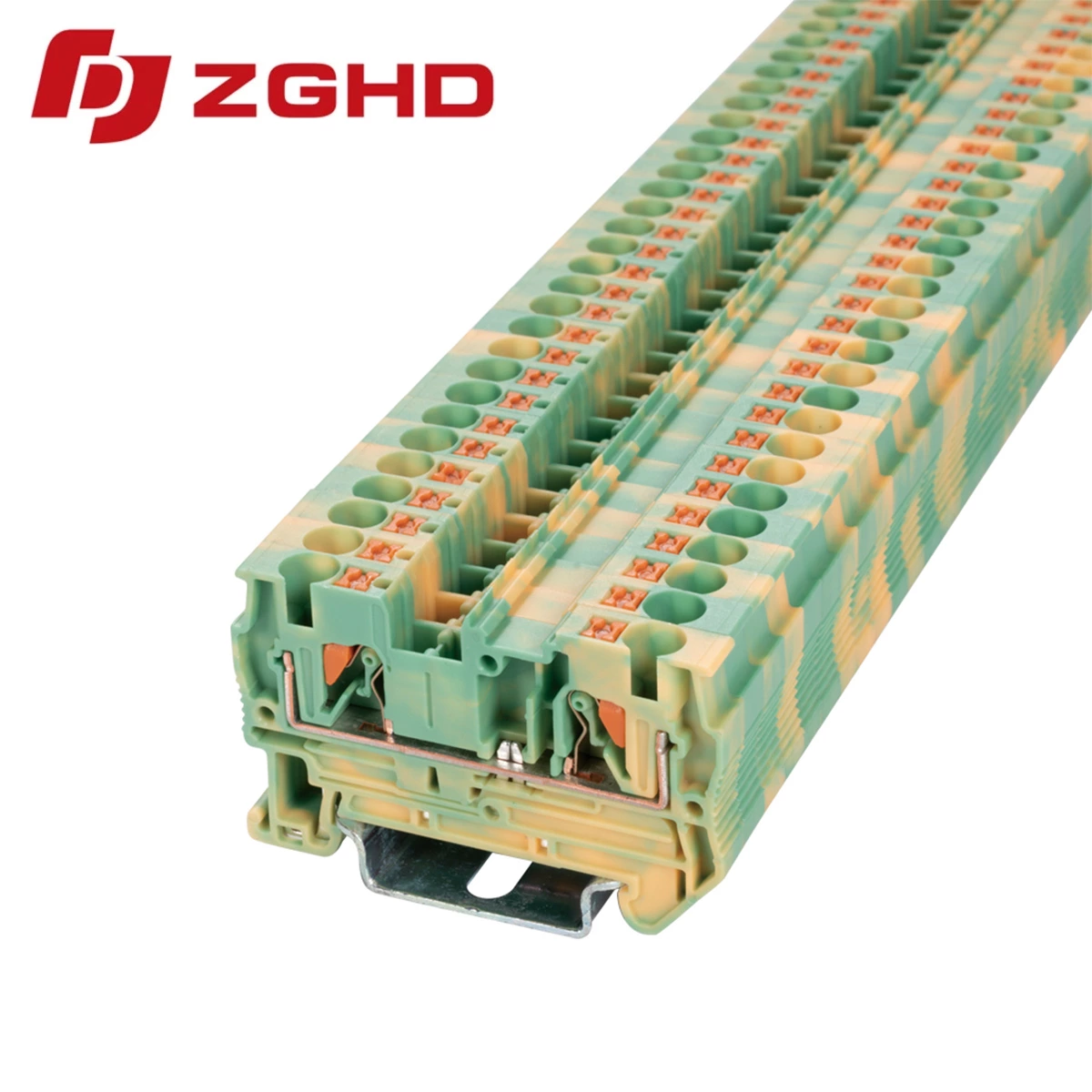

JHD1-4JD - Protective conductor terminal
Type : Protective conductor terminal block ,
Number Of Connections : 2 ,
Connection Method : Push-in connection ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.2 mm² - 6 mm² ,
Color : green-yellow ,

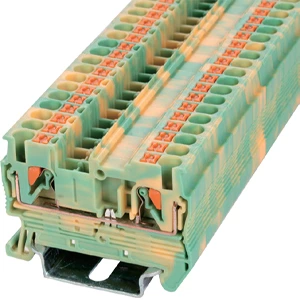

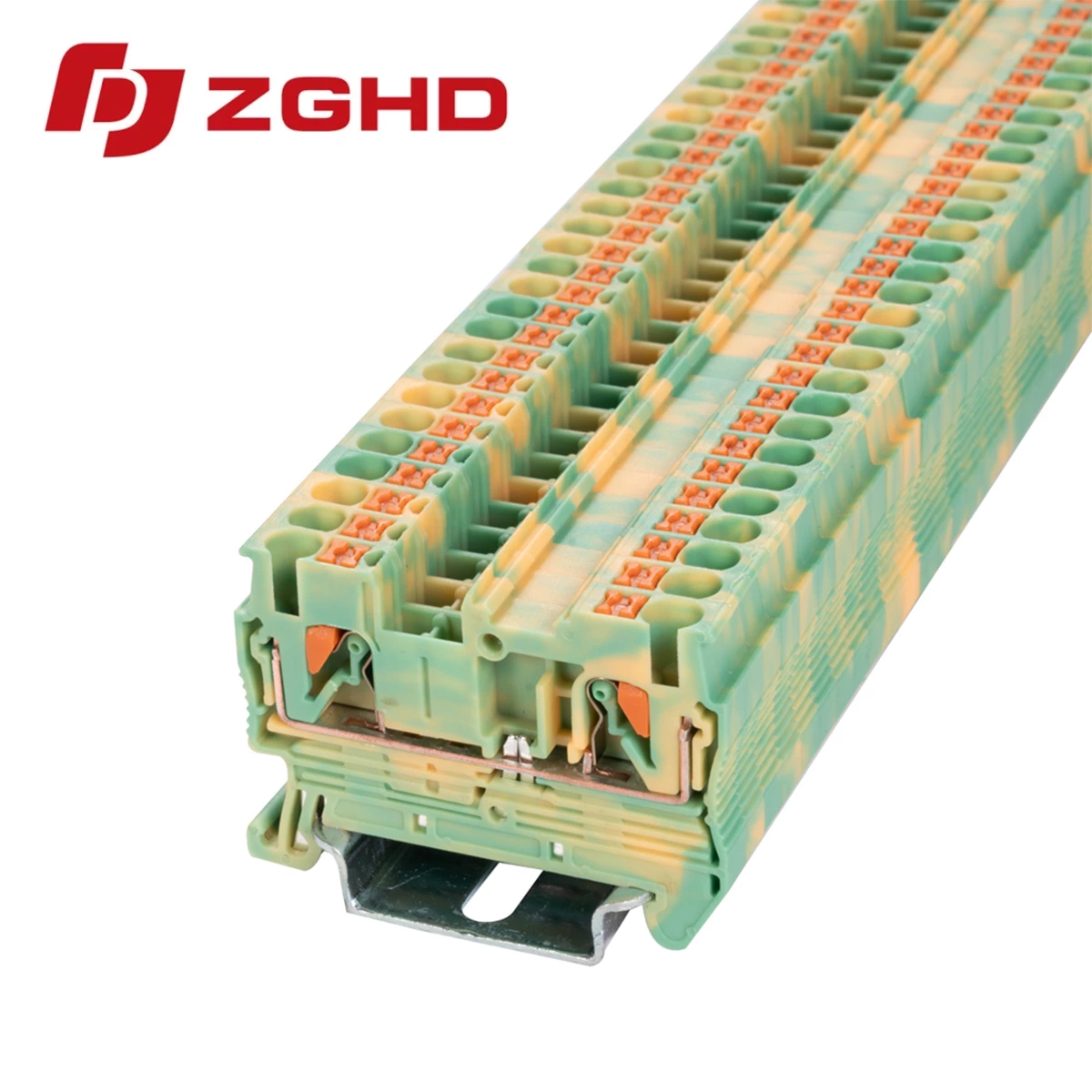

JHD1-2.5JD - Protective conductor terminal
Type : Protective conductor terminal block ,
Number Of Connections : 2 ,
Connection Method : Push-in connection ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.14 mm² - 4 mm² ,
Color : green-yellow ,
JHD1-1.5JD - Protective conductor terminal
Type : Protective conductor terminal block ,
Number Of Connections : 2 ,
Connection Method : Push-in connection, 1 level ,
Mounting type : DIN Rail (EN 60715) ,
Compatible Rail : NS 35/7,5, NS 35/15 ,
Cross Section : 0.14 mm² - 1.5 mm² ,
Color : green-yellow ,
