JHD1-1.5 - Feed-through terminal block
- Type:
- Feed-through terminal block
- Nominal Voltage:
- 500 V
- Nominal Current:
- 17.5 A
- Number Of Connections:
- 2
- Connection Method:
- Push-in connection
- Rated Cross Section:
- 1.5 mm²
- Mounting type:
- DIN Rail (EN 60715)
- Compatible Rail:
- NS 35/7,5, NS 35/15
- Cross Section:
- 0.14 mm² - 1.5 mm²
- Color:
- gray
| Wiring Diagram |  |
||
| Thickness / Width / Height (mm) |
3.5×30.8×45.4
|
||
| Technical Parameters | |||
| Rated Data | Voltage (V) |
500
|
|
| Current (A) | 17.5 | ||
| Cross-section (mm²) | 1.5 | ||
| Crimping Range | Rigid Wire (mm²) |
0.14-1.5
|
|
| Flexible Wire (mm²) |
0.14-1.5
|
||
| Stripping Length (mm) |
10
|
||
| Install the Guide Rails |
TH35-7.5/TH35-15
|
||
| model | |||
| Partition plate |
1.5G
|
 |
|
| Pluggable Connector |
FBS 2-3.5 FBS 3-3.5
FBS 4-3.5 FBS 5-3.5
FBS 10-3.5
|
 |
|
| Marker Strip | blank |
ZB3.5M
|
 |
| Horizontal Printing |
ZB3.5M
|
 |
|
| Vertical Printing |
ZB3.5M
|
 |
|

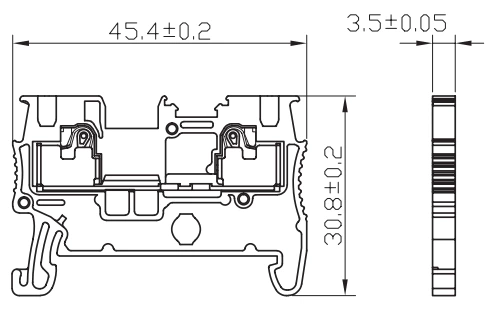

| Dimensions |  |
||
