JHD5-16RD - Fuse modular terminal block
- Type:
- Fuse modular terminal block
- Fuse Type:
- Glass / ceramics / ... G / 5 x 20, 5 x 25
- Voltage:
- 500 V
- Nominal Current:
- 10 A
- Number Of Positions:
- 1
- Connection Method:
- Screw connection
- Rated Cross Section:
- 1.5 mm²
- Cross Section:
- 0.5 mm²- 16 mm²
- Color:
- black
| Model | Function | Wire IEC cross-section | Wire UL | Thickness |
| JHD5-16RD |  |
16 mm² 10 mm² 16 mm² |
4 AWG 8 AWG 4 AWG |
12 mm |
| Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| 6.3A | 42 | 12/59/62 | 800 V/10 A/16 mm² |
Specfication:
| With Light | With Light
|
|||||||||
| The Fuse same as JHD5-4RD(UK5-HESl) | ||||||||||
| Connected assembly | ||||||||||
| Model | ||||||||||
| ZL10-16 | ||||||||||
| With Fuse: The current is determined by the fuse,and the voltage is determined by the light. | ||||||||||
| Marking tags | ZB8 | |||||||||
| Screw/Tightening torque(Nm) | M4/1.2 | |||||||||
| Material | PA | |||||||||
| Flame retardant rating UL-94 | V0 | |||||||||

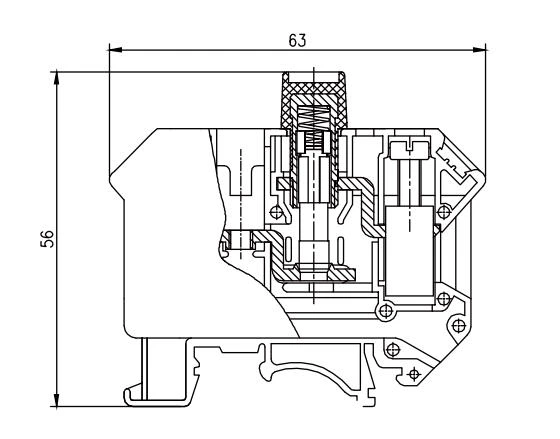

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
