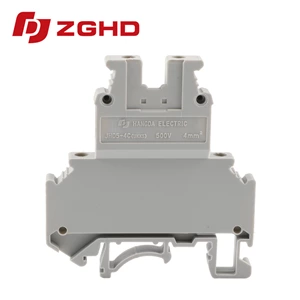

Multi Level Terminal Blocks for Efficient Electrical Wiring
- Type:
- Double-level terminal block
- Nominal Voltage:
- 500 V
- Nominal Current:
- 24 A
- Connection Method:
- Screw connection, 1st and 2nd level
- Rated Cross Section:
- 2.5 mm²
- Cross Section:
- 0.2 mm² - 4 mm²
- Color:
- gray

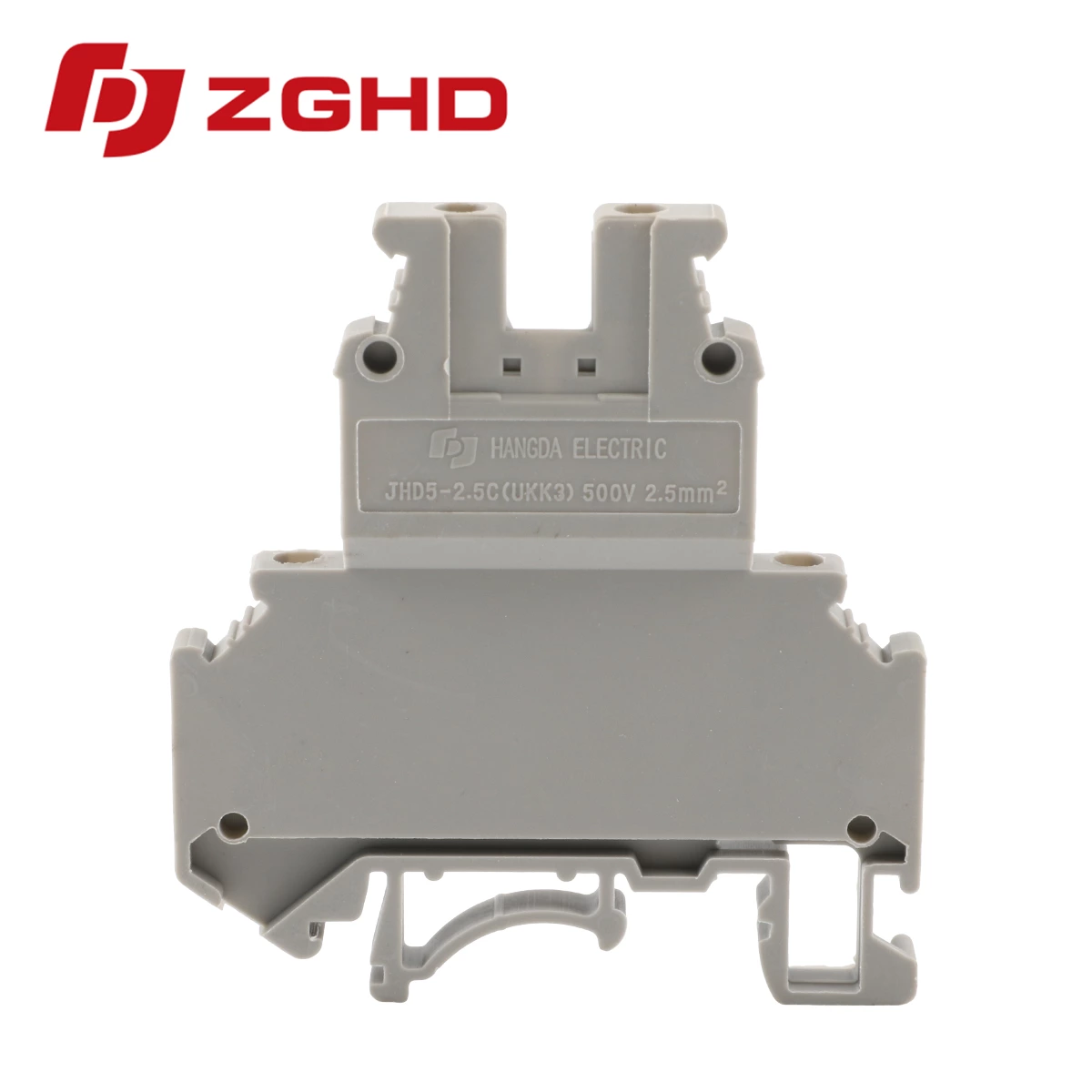

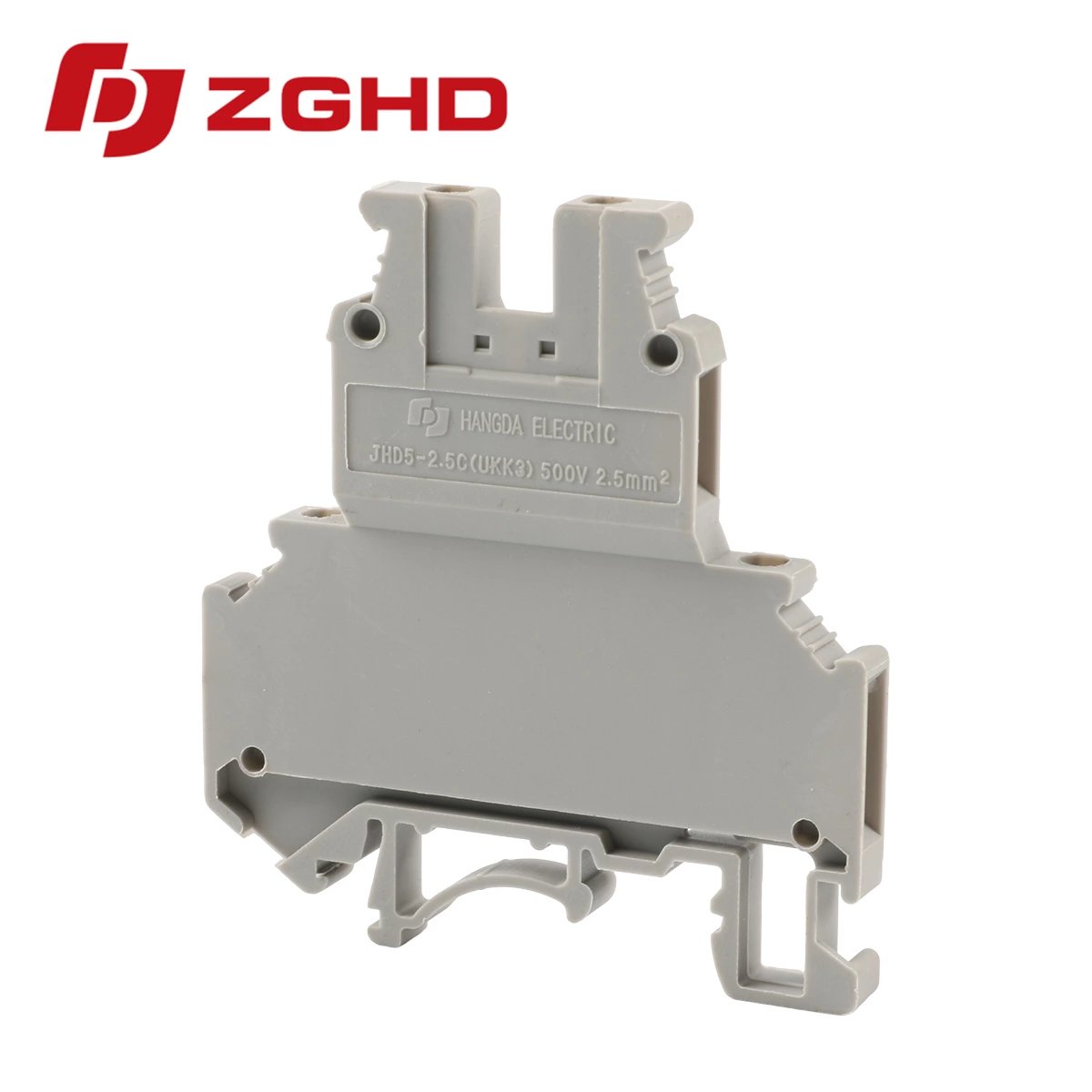

Cabinet real estate presents continuous challenges in industrial automation panels and power distribution enclosures. Implementing Multi-level Terminal Blocks allows control cabinets to double connection density on a standard DIN rail without expanding physical enclosure dimensions. Hangda Electric manufactures the JHD5-2.5C Double-Level Terminal Block, delivering compact, organized wire termination for modern control systems.
Space Optimization in High-Density Panels
Stacking feed-through levels vertically cuts required mounting width in half. Modern multi level terminal blocks isolate signal and power lines within stacked tiers, eliminating wire clutter inside switchgear.
-
Footprint reduction: Doubles wiring capacity across a single 5.2 mm width.
-
Vibration resistance: Clamping components maintain contact pressure to prevent conductor loosening.
-
Touch protection: Recessed terminals safeguard operators against accidental shock.
Technical Specifications
The JHD5-2.5C unit conforms to IEC 60947-7-1 standards and RoHS directives:
| Parameter | Specification |
|---|---|
| Model Series | Hangda JHD5-2.5C |
| Rated Voltage | 800 V |
| Rated Current | 24 A |
| Wire Cross Section | 0.2 - 2.5 mm² |
| Housing Material | Polyamide PA66 (UL94 V-0) |

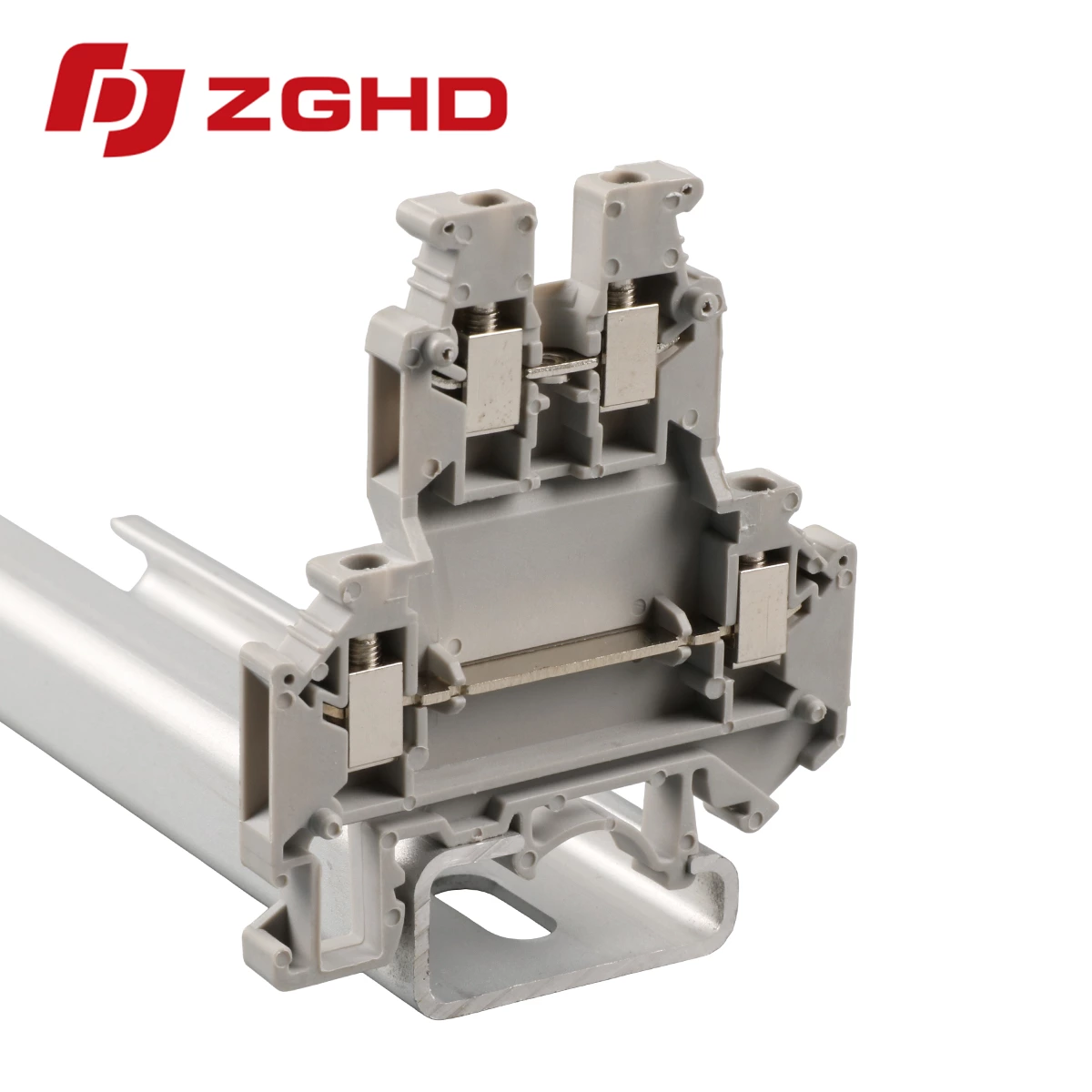

| Mounting Standard | DIN Rail NS 35 (EN 60715) |
Practical Application Advantages
Streamlined Circuit Segregation

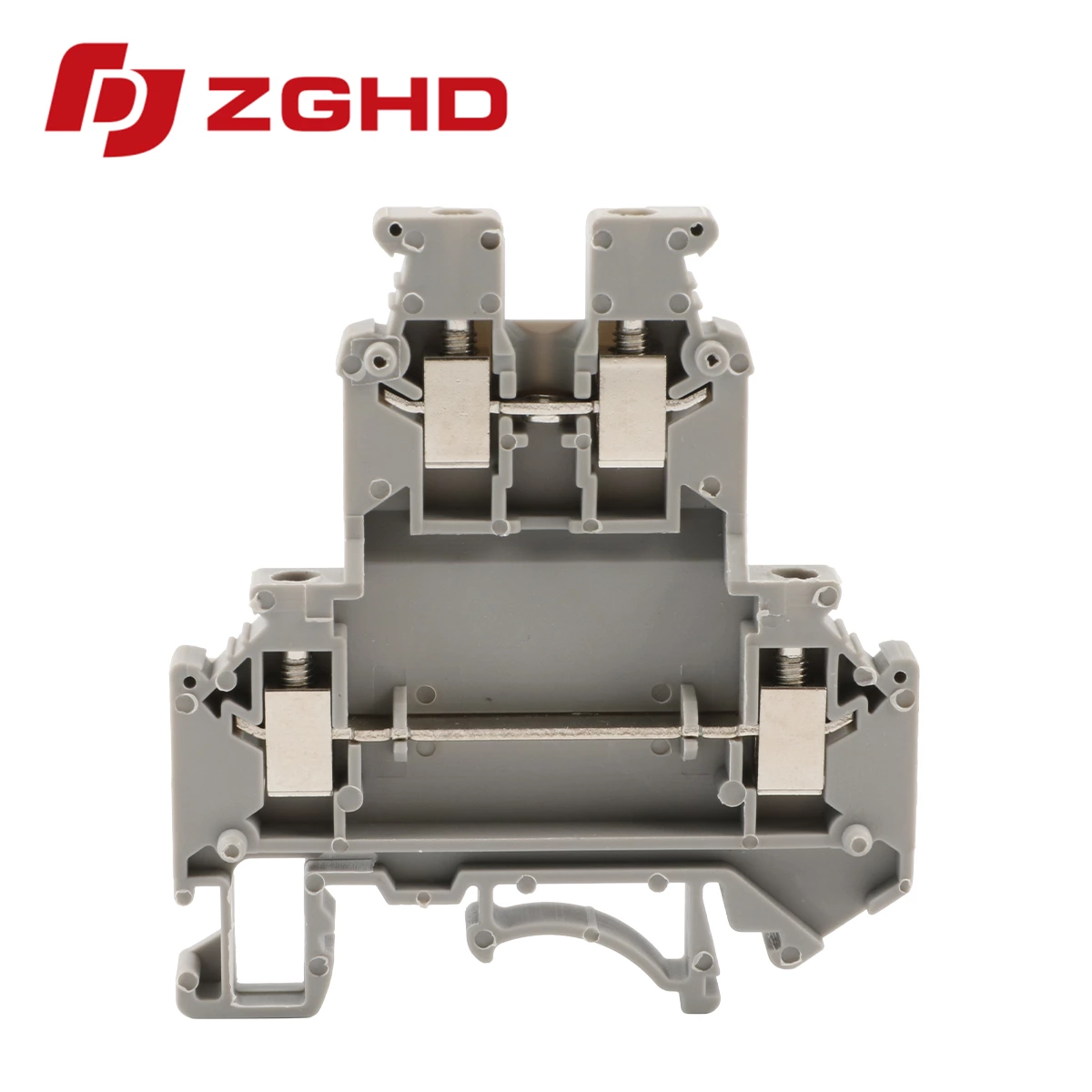

Each multi level terminal provides independent feed-through circuits across two tiers. Dedicated jumper slots permit flexible potential distribution across adjacent units, accelerating field wiring routines.
-
Rapid identification: Marking tags clarify circuit tracing during maintenance cycles.
-
Efficient bridging: Plug-in jumpers link identical potentials without auxiliary jumpers.
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-2.5C |  |
2.5 mm² 1.5 mm² 2.5 mm² |
14 AWG 16 AWG 14 AWG | 5.2 mm | 32 A | 100 | 5.2/62/56 | 500 V/32 A/2.5 mm² |
Specfication:
| End cover | D4C |
| Cross-connection 10-Polo,Separable | ZL2-2.5 ZL3-2.5 ZL10-2.5 |
| Insertion bridge 10-Polo,Separable | BLS2-2.5 BLS3-2.5 BLS10-2.5 |
| Small Partition | CPK3 |
| Marking tags | ZB5 |
| Screw/Tightening torque(Nm) | M3/0.6 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |
| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
