JHD5-2.5C/2 - Double-level terminal block
- Type:
- Double-level terminal block
- Voltage:
- 500 V
- Nominal Current:
- 24 A
- Connection Method:
- Screw connection, 1st and 2nd level
- Rated Cross Section:
- 2.5 mm²
- Cross Section:
- 0.2 mm² - 4 mm²
- Color:
- gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-2.5C/2 |  |
2.5 mm² 1.5 mm² 2.5 mm² |
14 AWG 16 AWG 14 AWG | 5.2 mm | 32 A | 100 | 5.2/62/67 | 500 V/32 A/2.5 mm² |
Specfication:
| End cover | D2.5C/2 |
| Cross-connection 10-Polo,Separable | ZL2-2.5C/2 ZL3-2.5C/2 ZL10-2.5C/2 |
| Insertion bridge 10-Polo,Separable | BLS2-2.5 BLS3-2.5 BLS10-2.5 |
| Small Partition | CPK3 |
| Marking tags | ZB5 |
| Screw/Tightening torque(Nm) | M3/0.6 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

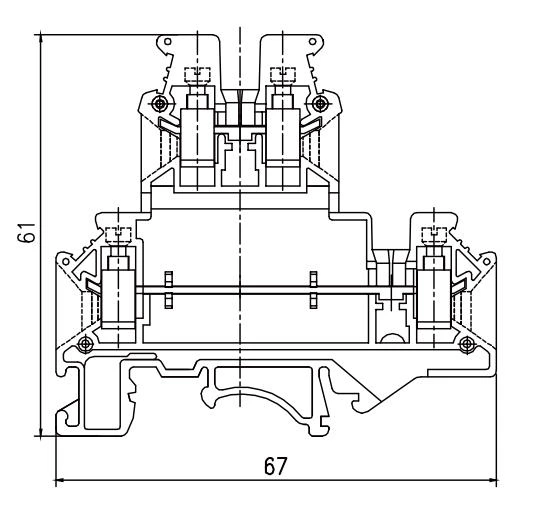

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
