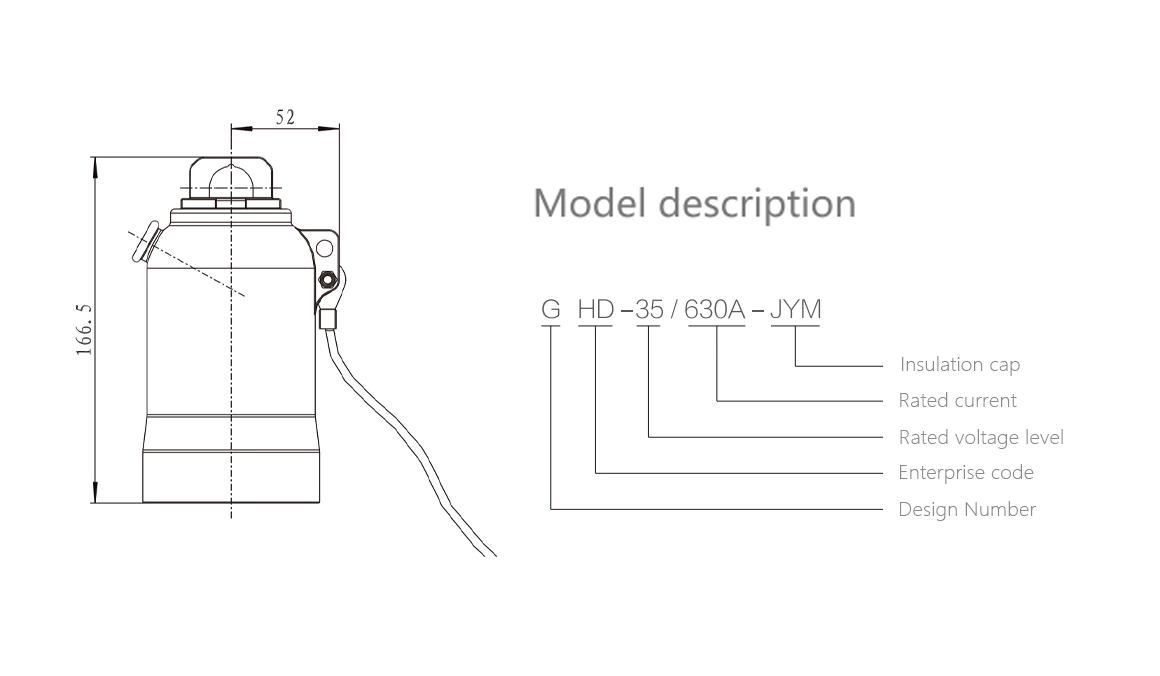

35 kV,630 A Insulating Cap
- Rated voltage:
- 35 kV
- Rated current:
- 630 A
- AC Withstand Voltage for 5min:
- 117 kV
- Partial Discharge:
- 45 kV,Q≤10 pC
- Impulse Withstand Voltage(10 times foreach polarity):
- 200 kV
- Screen Resistance:
- ≤5000 Ω
- Reference standards:
- GB/T 12706.4、IEC60502-4
Product features

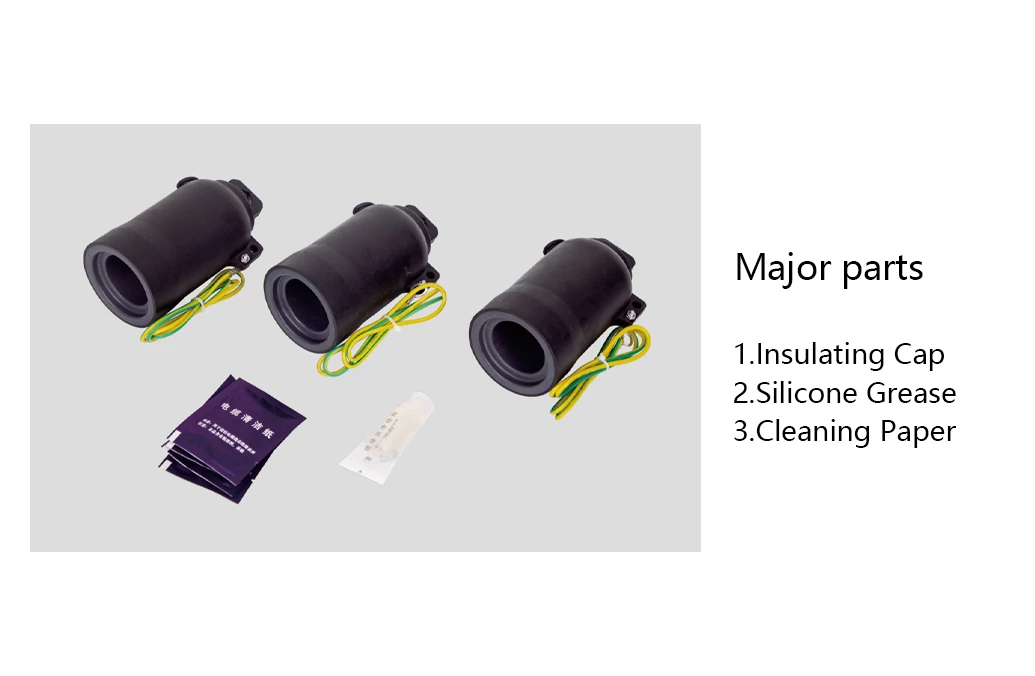

The 35 kV, 630 A insulating cap is an accessory for live bushings. It provides an insulating cover for energized bushings and offers dust- and moisture-proof protection for de-energized connectors.
The 630 A insulating cap can be installed on 630 A bushings, busbars, and wall-mounted equipment. When spare outlets are reserved on busbars or cable connectors, they must be sealed with 630 A insulating caps.
Technical Data
| Rated voltage | 35 kV |
| Rated current | 630 A |
| AC withstand voltage (5 min) | 117 kV |
| Partial Discharge | 45 kV,Q≤10 pC |
| Impulse Withstand Voltage(10 times for each polarity) | 200 kV |
| Screen Resistance | ≤5000 Ω |
| Reference standards:GB/T 12706.4、IEC60502-4 | |
