15/20 kV PT Connection Kit
- Rated voltage:
- 15 kV,20 kV
- Rated current:
- 200 A
- AC Withstand Voltage for 5min:
- 39 kV,54 kV
- Partial Discharge:
- 15 kV,Q≤10 pC 20 kV,Q≤10 pC
- Impulse Withstand Voltage(10 times foreach polarity):
- 95 kV,125 kV
- Screen Resistance:
- ≤5000 Ω
- Reference standards:
- IEE-386、GB/T12706.4、IEC 60502-4
- Conductor Cross-section:
- 25-120 mm²
Product features

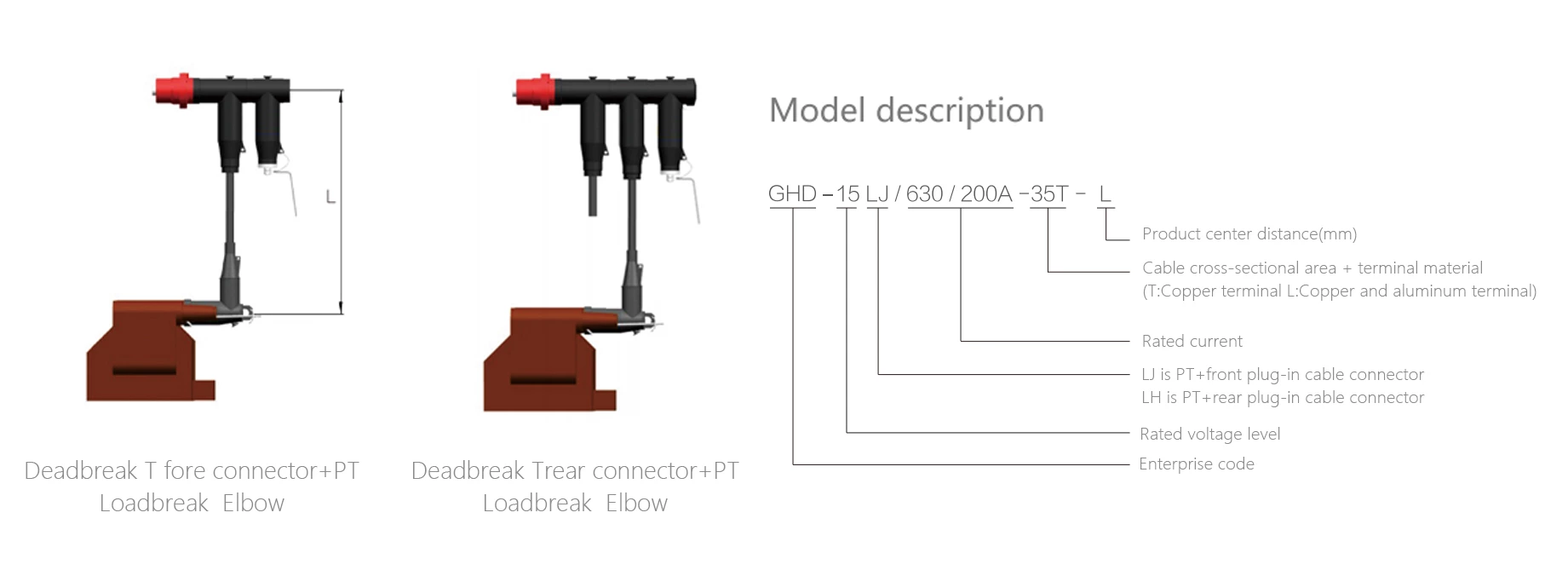

Shielded PT connection kits are constructed with a shielded front/rear plug-in cable connector on one end and a PT elbow-type cable connector on the other,connected by fully shielded flexible cables. Full shielding and sealing are achieved by installing a grounding wire after complete assembly. This product can be bent freely, and the cable length can be customized for optimal solutions.
Technical Data
| Rated voltage | 15 kV | 20 kV |
| Rated current | 200 A | 200 A |
| AC withstand voltage (5 min) | 39 kV | 54 kV |
| Partial Discharge | 15 kV,Q≤10 pC | 20 kV,Q≤10 pC |
| Impulse withstand voltage (± polarity, 10 impulses each)) | 95 kV | 125 kV |
| Screen Resistance | ≤5000 Ω | ≤5000 Ω |
| Conductor Cross-section | 25-120 mm² | 25-120 mm² |
| Reference standards:IEE-386、GB/T12706.4、IEC 60502-4 | ||
Major parts
| 1、PT connection kit (Main Body) | ||
| 2、Clamping plate | ||
| 3、Stress cone | ||
| 4、Insulating plug 5、Cover | Front plug-in cable connector accessory | |
| 6、Connecting Lug | Rear plug-in cable connector accessory | |
| 7、Double-ended Stud | ||
| 9、Cleaning paper | ||
