JHD5-B -Terminal Strip Marker Carrier
- Material:
- PA
- Flammability rating (UL 94):
- V0
- Mounting:
- Compatible with standard 32 mm or 35 mm DIN rails (EN 60715)
- General:
- for marking groups of terminals
- Marking field size:
- 40 mm × 17 mm
- Color:
- gray
| Model | JHD5-B(UBE/D) |
| Number of packages | 30 |
Thickness/Height( )/Width mm |
19.5/48/44.5 |

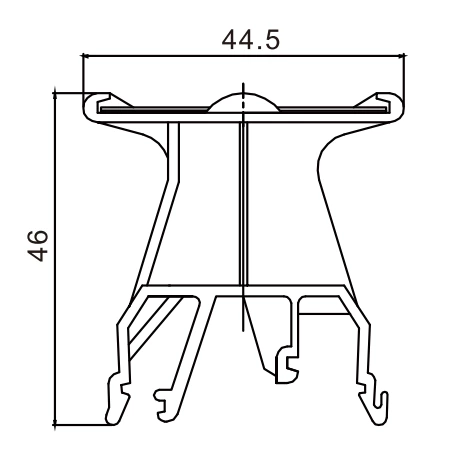

| Dimensions |  |
