JHD5-6S - Test disconnect terminal block
- Type:
- Test disconnect terminal block, with two test sockets for 4 mm test plugs, or for receiving bridge bars or screw bridges
- Voltage:
- 400 V
- Nominal Current:
- 41 A
- Connection Method:
- Screw connection
- Rated Cross Section:
- 6 mm²
- Cross Section:
- 0.5 mm² - 10 mm²
- Color:
- gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness |
| JHD5-6S |  |
4 mm² 6 mm² 4 mm² |
10 AWG 12 AWG 10 AWG |
8.2 mm |
| Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| 57A | 45 | 8.2/51.5/72 | 400 V/57 A/6 mm² |
Specfication:
| End cover | D6S |
| Cross-connection 10-Polo,Separable | ZL2-6S ZL3-6S ZL10-6S |
| Small Partition | CP6S |
| Marking tags | ZB8 |
| Screw/Tightening torque(Nm) | M4/1.2 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

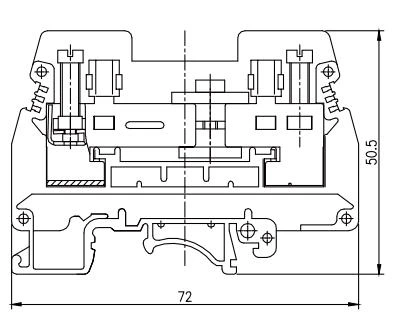

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
