Feed Through Terminal Blocks Modular Multi Conductor Levels
- Type:
- Feed-through terminal block
- Nominal Voltage:
- 800 V
- Nominal Current:
- 24 A
- Number Of Connections:
- 2
- Connection Method:
- Screw connection
- Rated Cross Section:
- 2.5 mm²
- Cross Section:
- 0.2 mm² - 4 mm²
- Color:
- gray
Reliable Rail Solutions for Industrial Control Panels

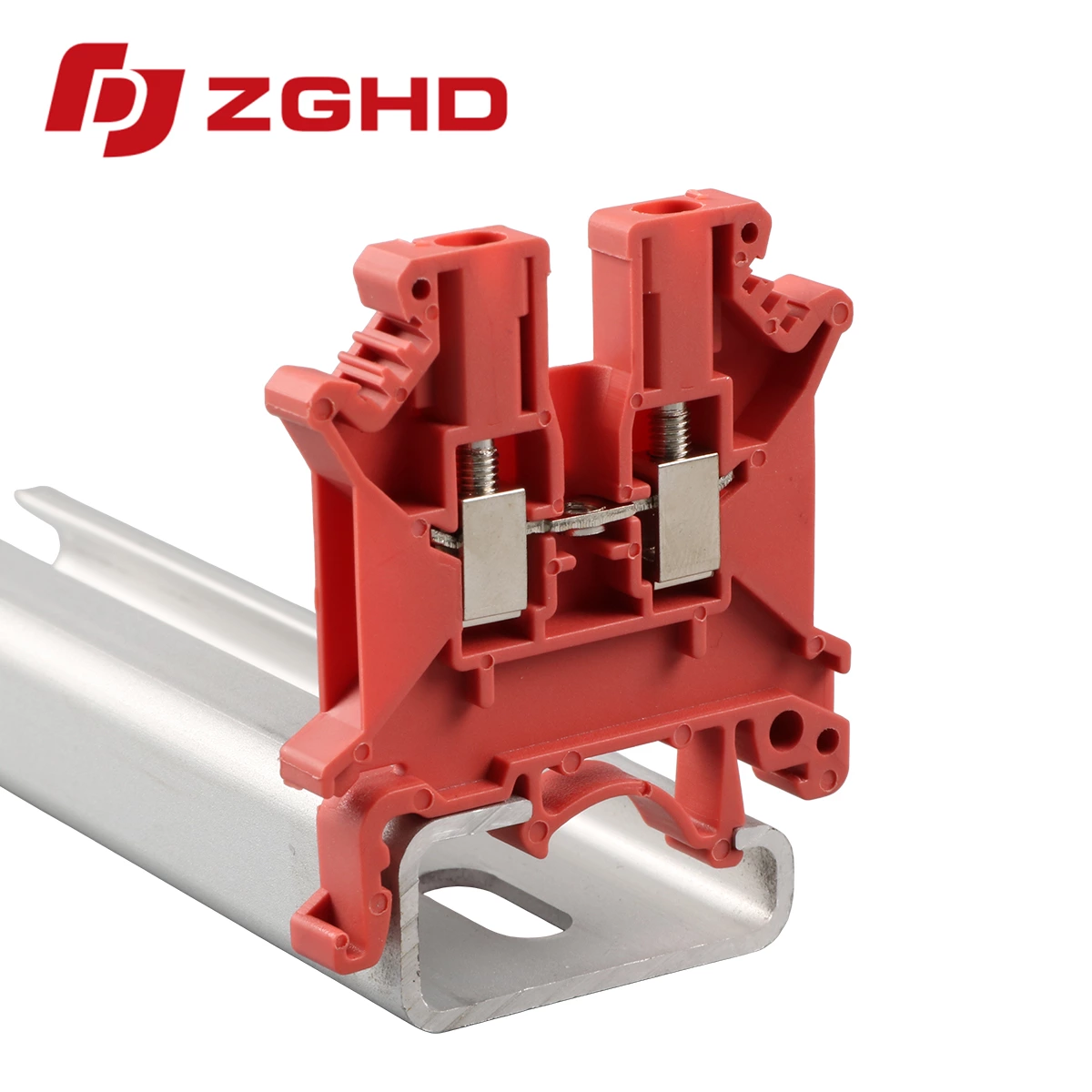

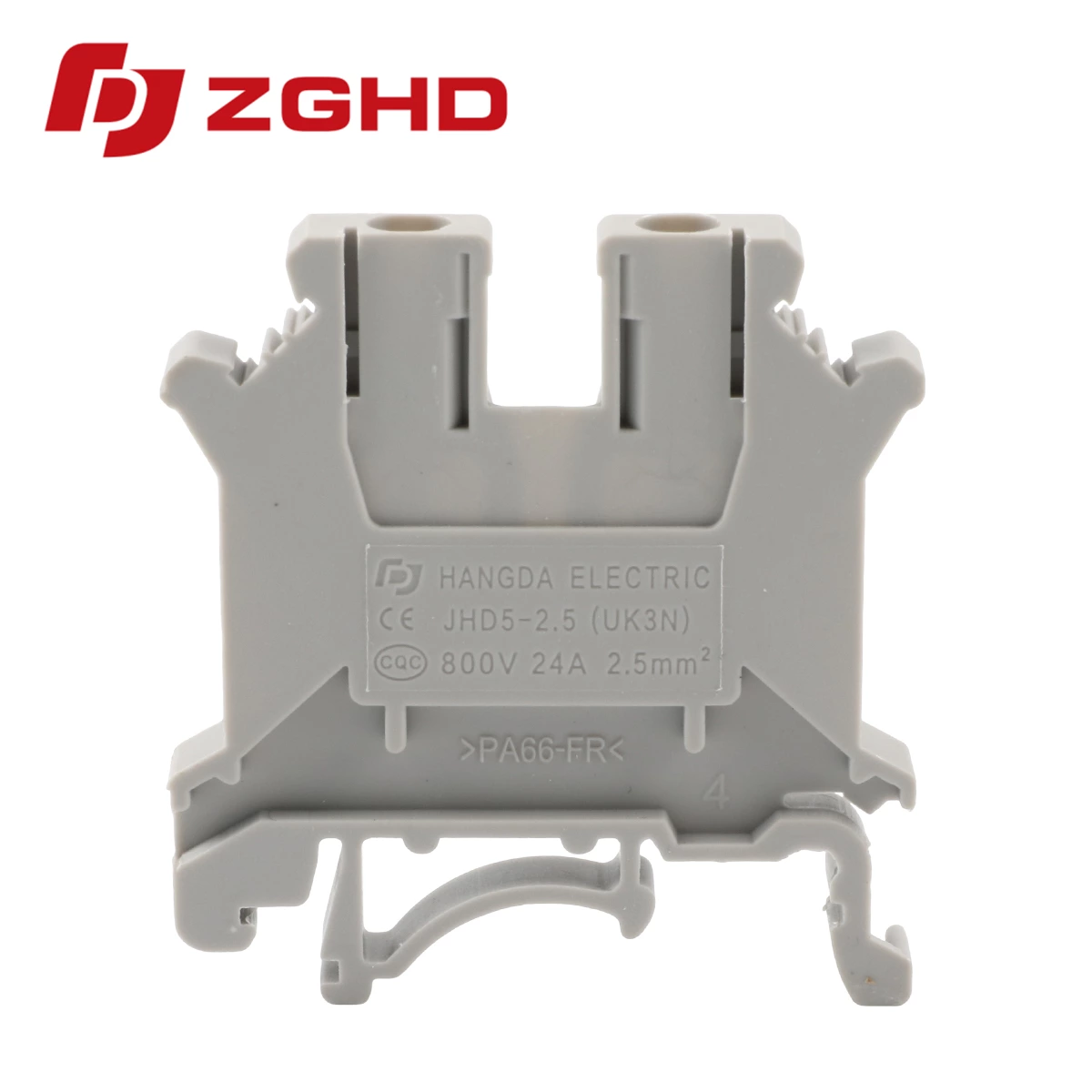

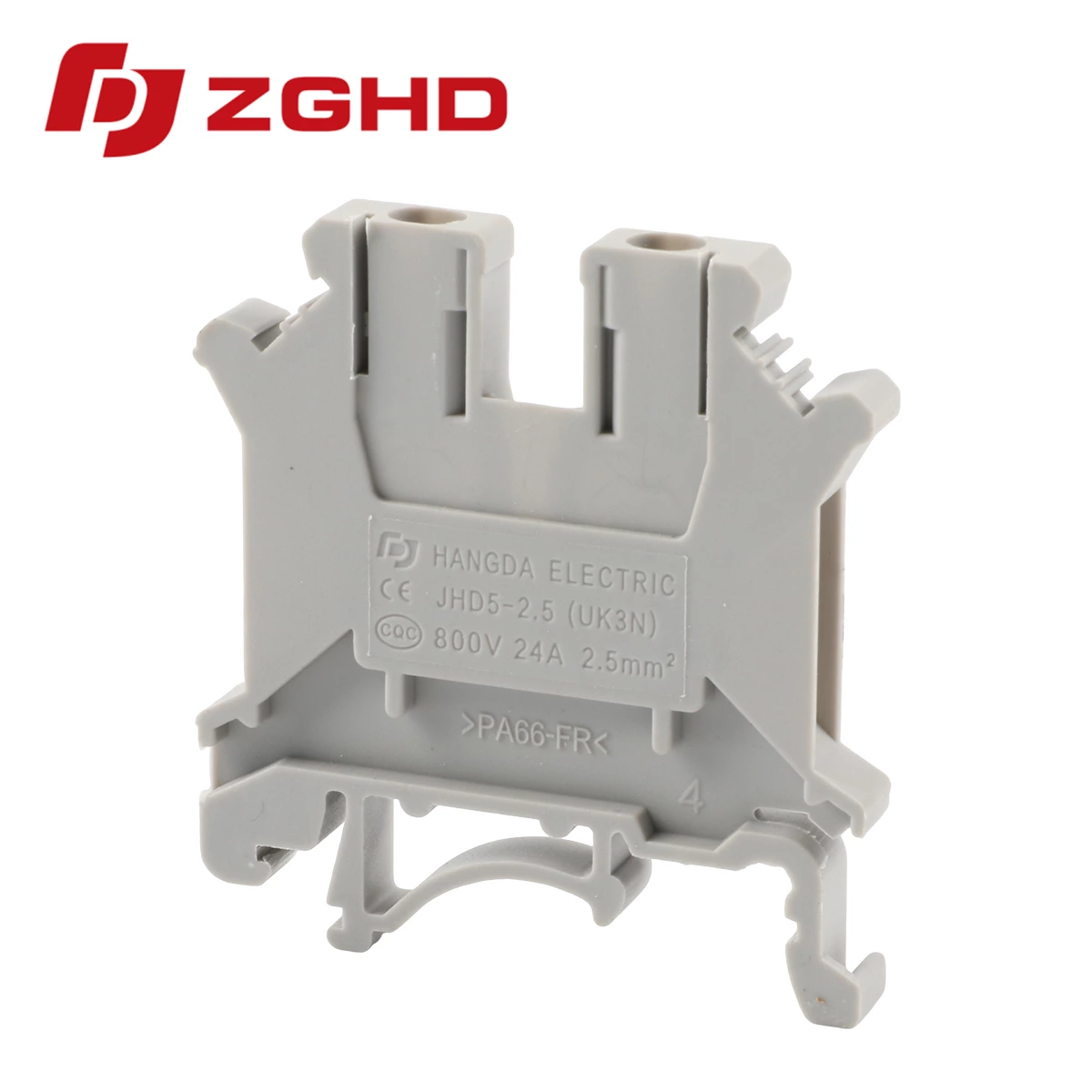

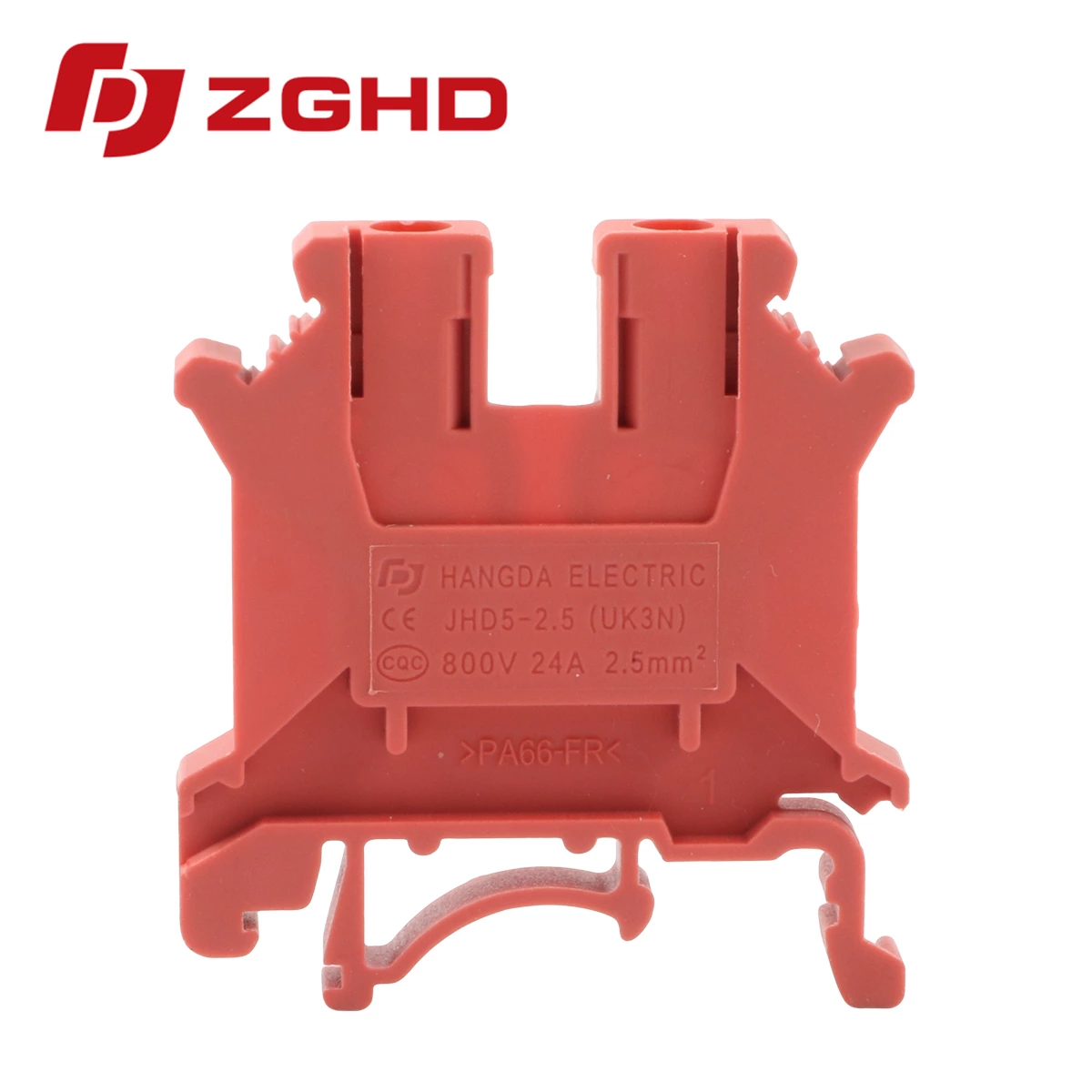

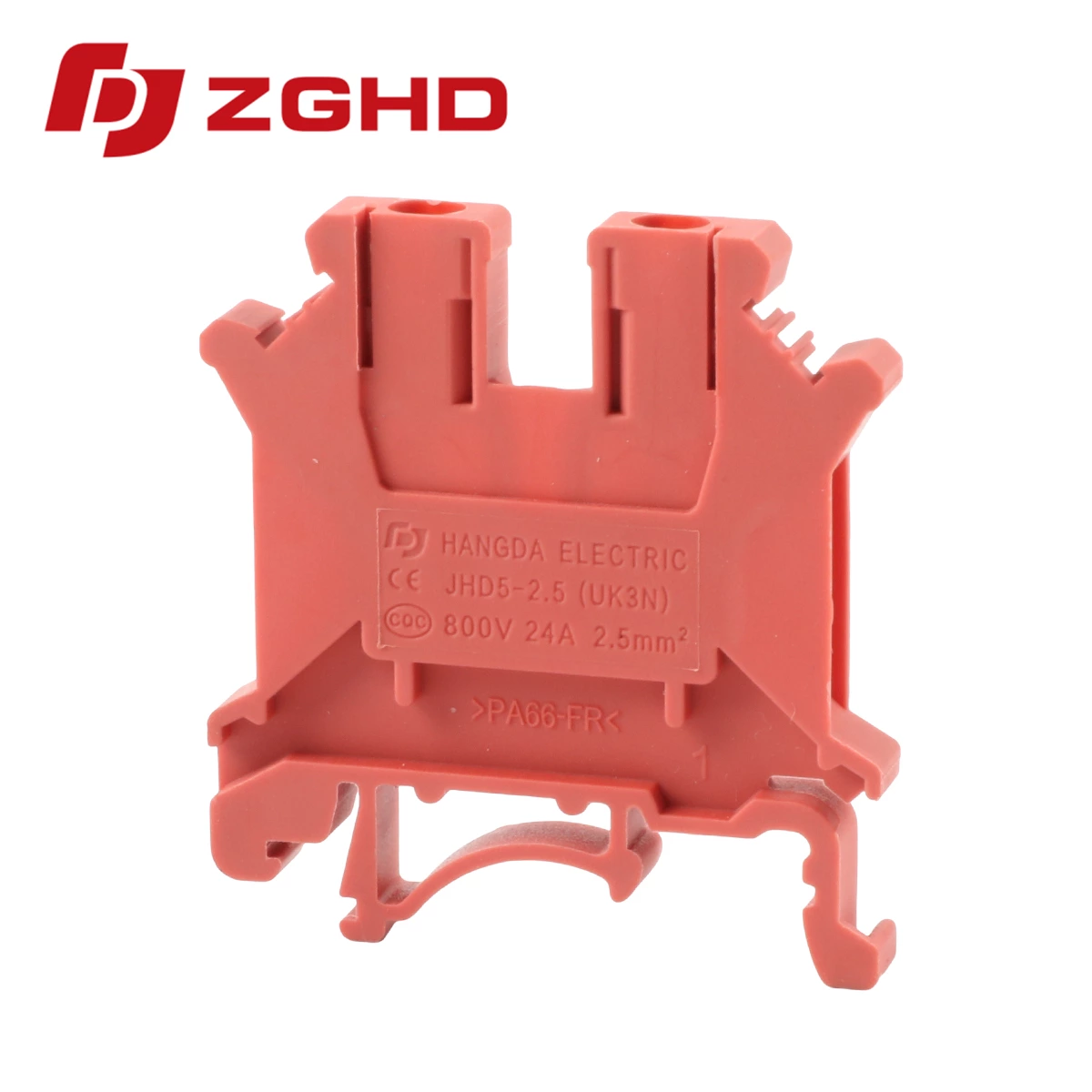

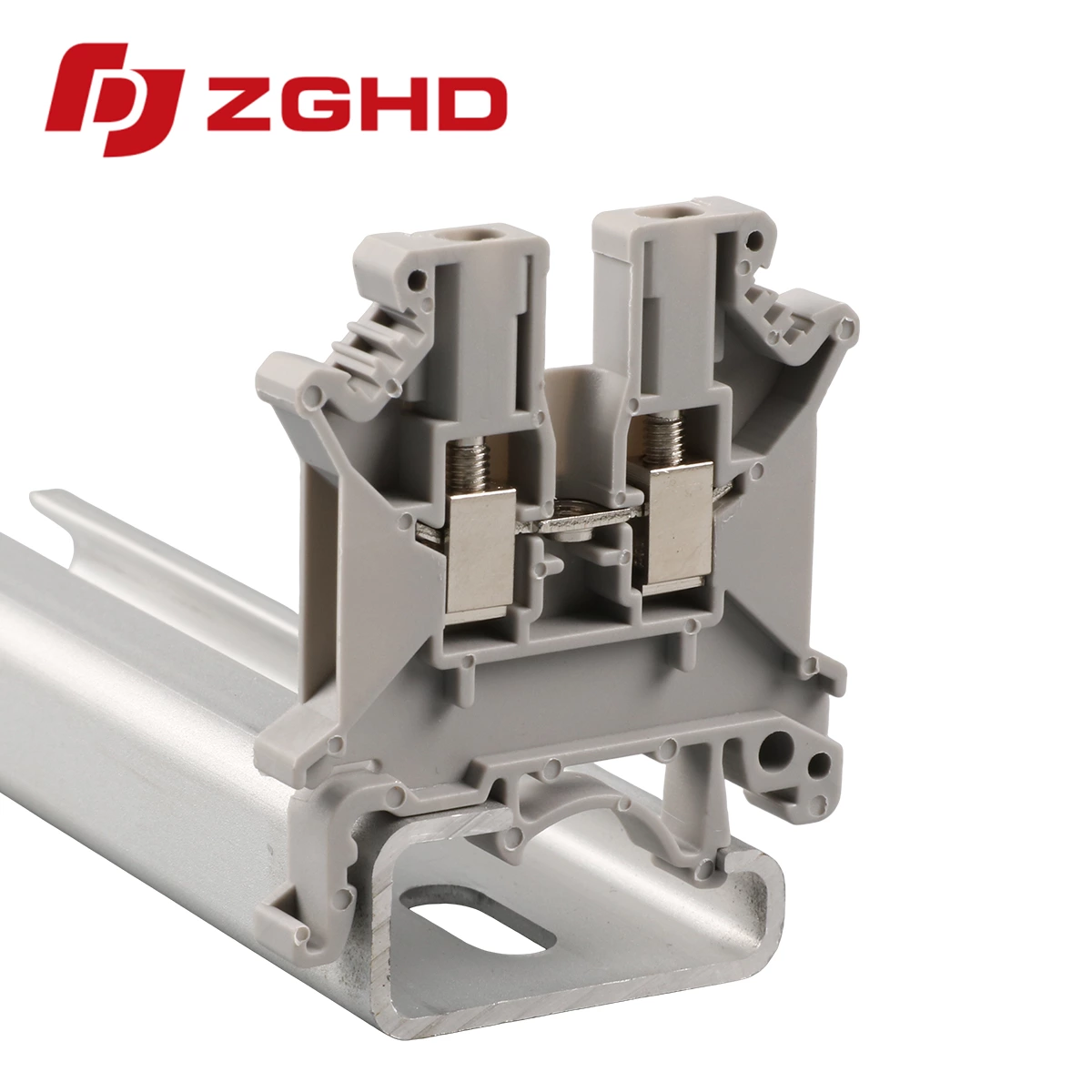

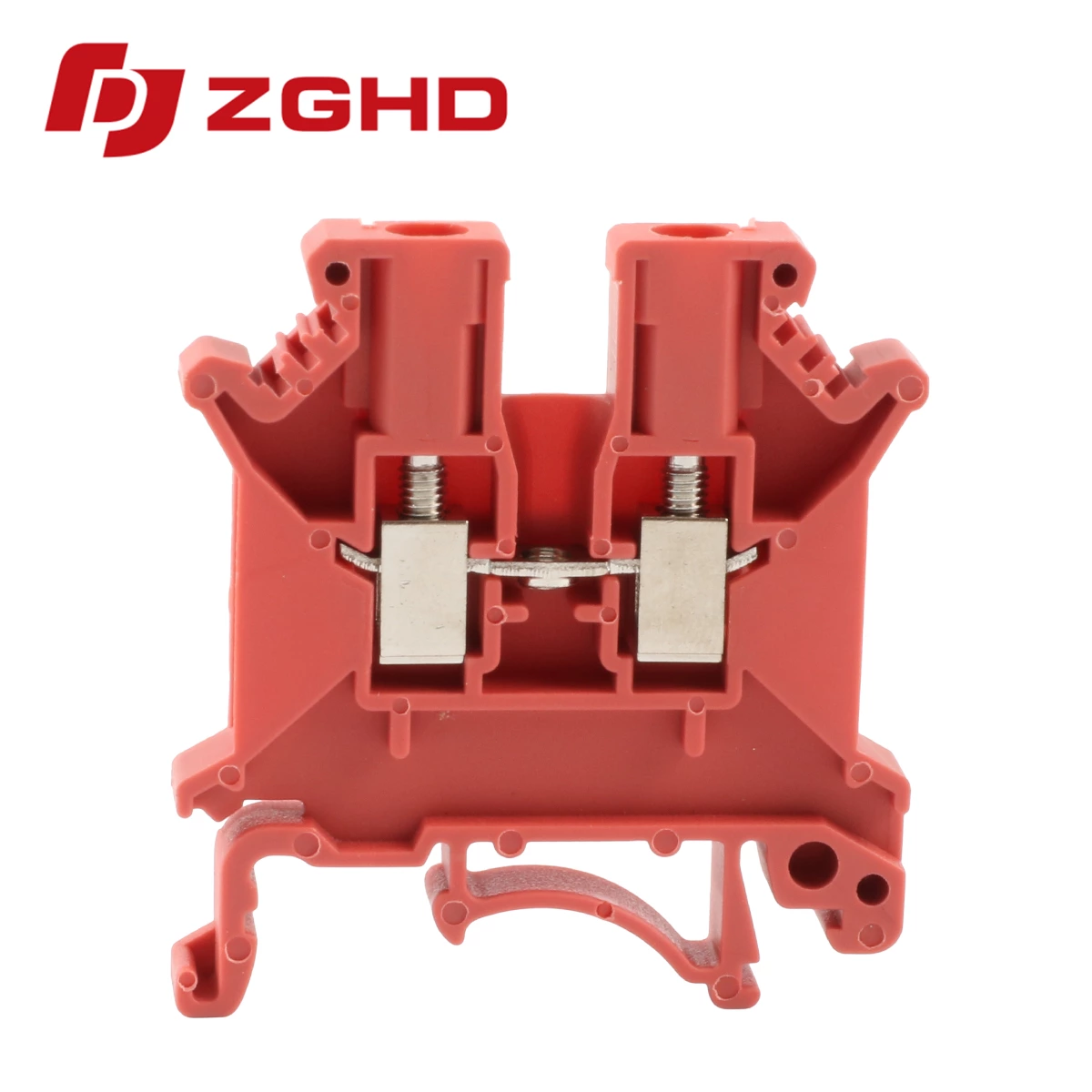

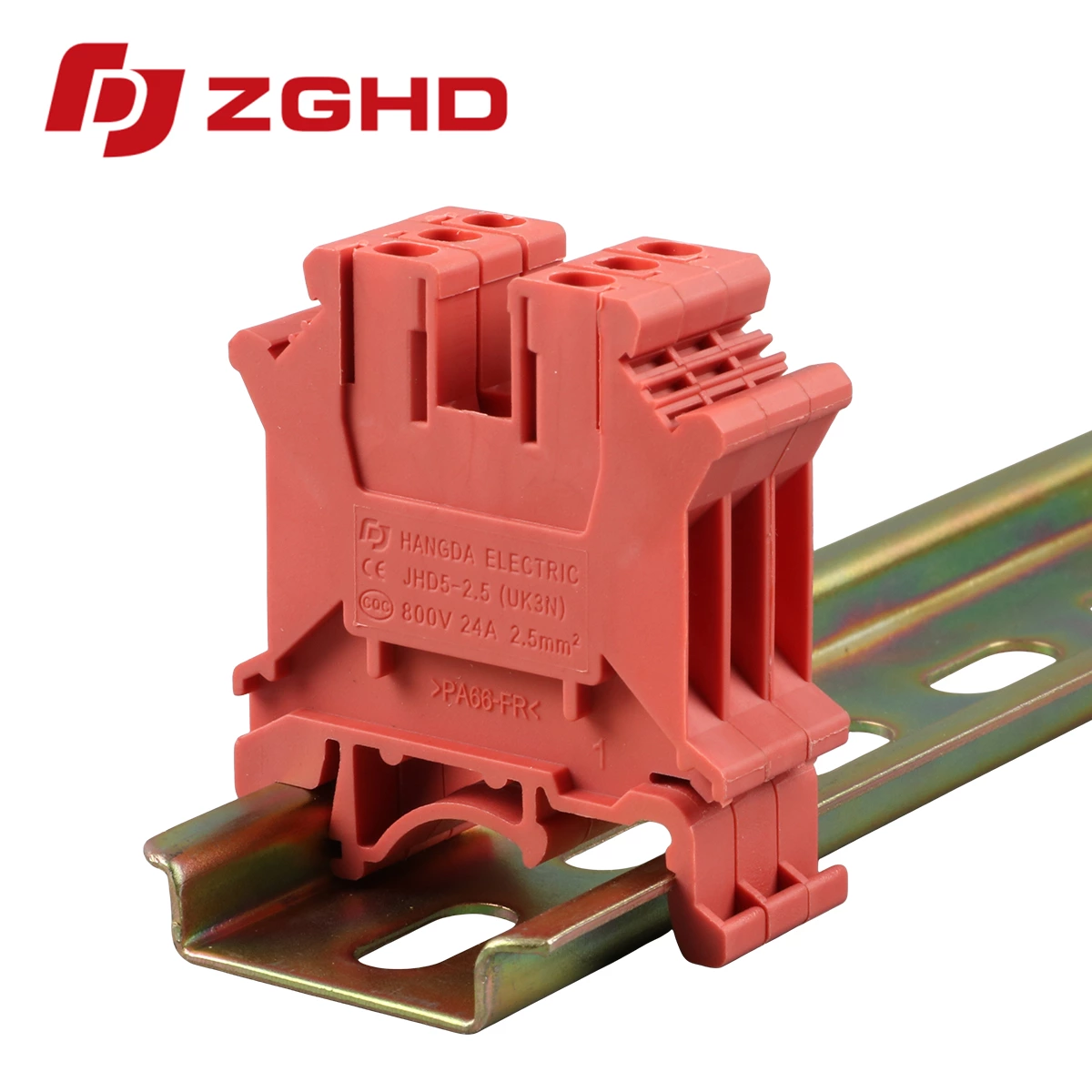

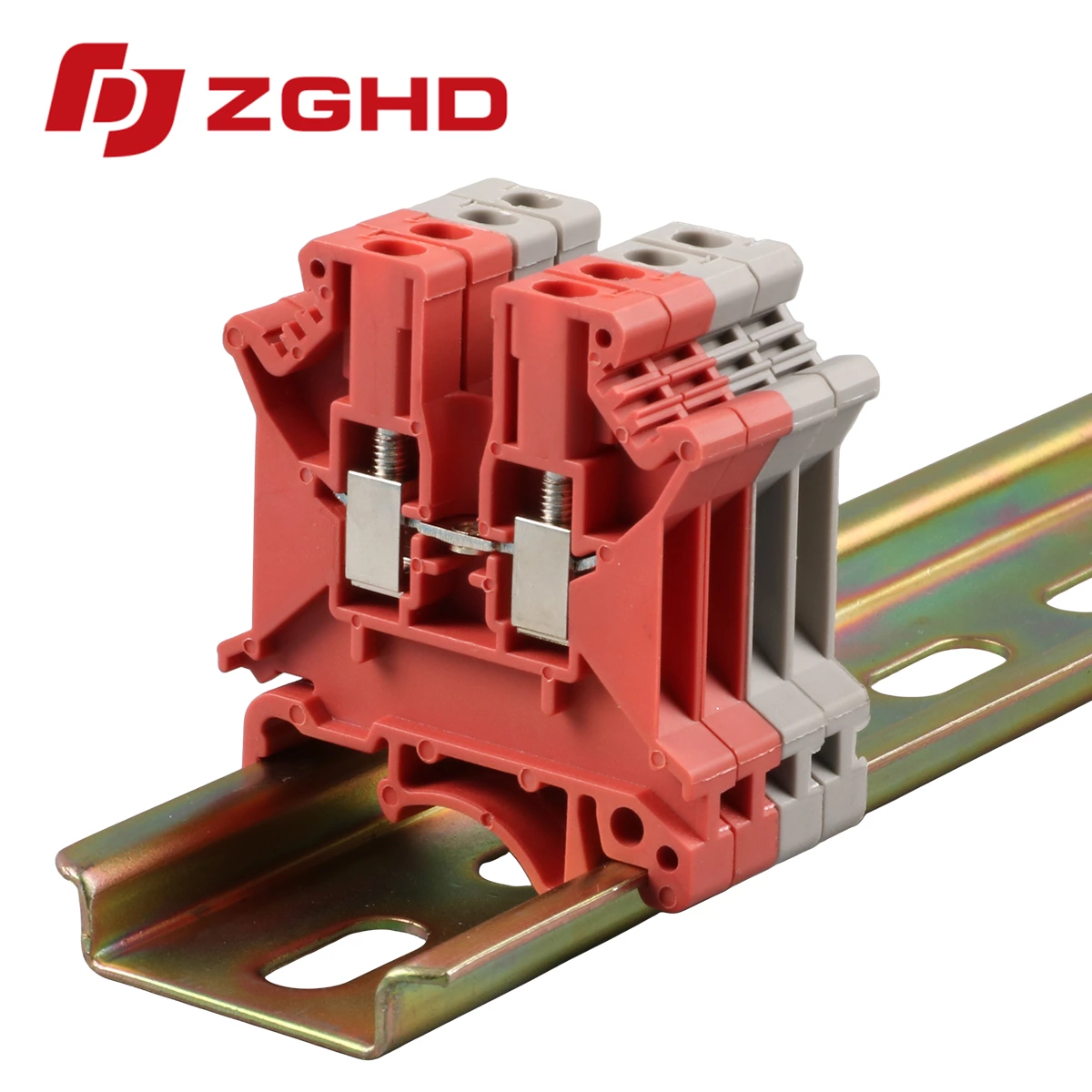

High-density control cabinets demand organized wire distribution and stable electrical connections. Hangda Electric manufactures the JHD5-2.5 feed through modular terminal block to deliver secure wire routing on standard TS 35 DIN rail assemblies. Built with flame-retardant PA66 insulating material, Feed-through Terminal Blocks ensure reliable circuit isolation while resisting extreme operating temperatures.
Space-Saving Multi-Wire Cabinet Distribution
Complex automation enclosures face severe panel-space constraints. Switching from traditional single-point connectors to multi conductor terminal blocks and multi level terminal blocks allows higher wire density across compact enclosures:
-

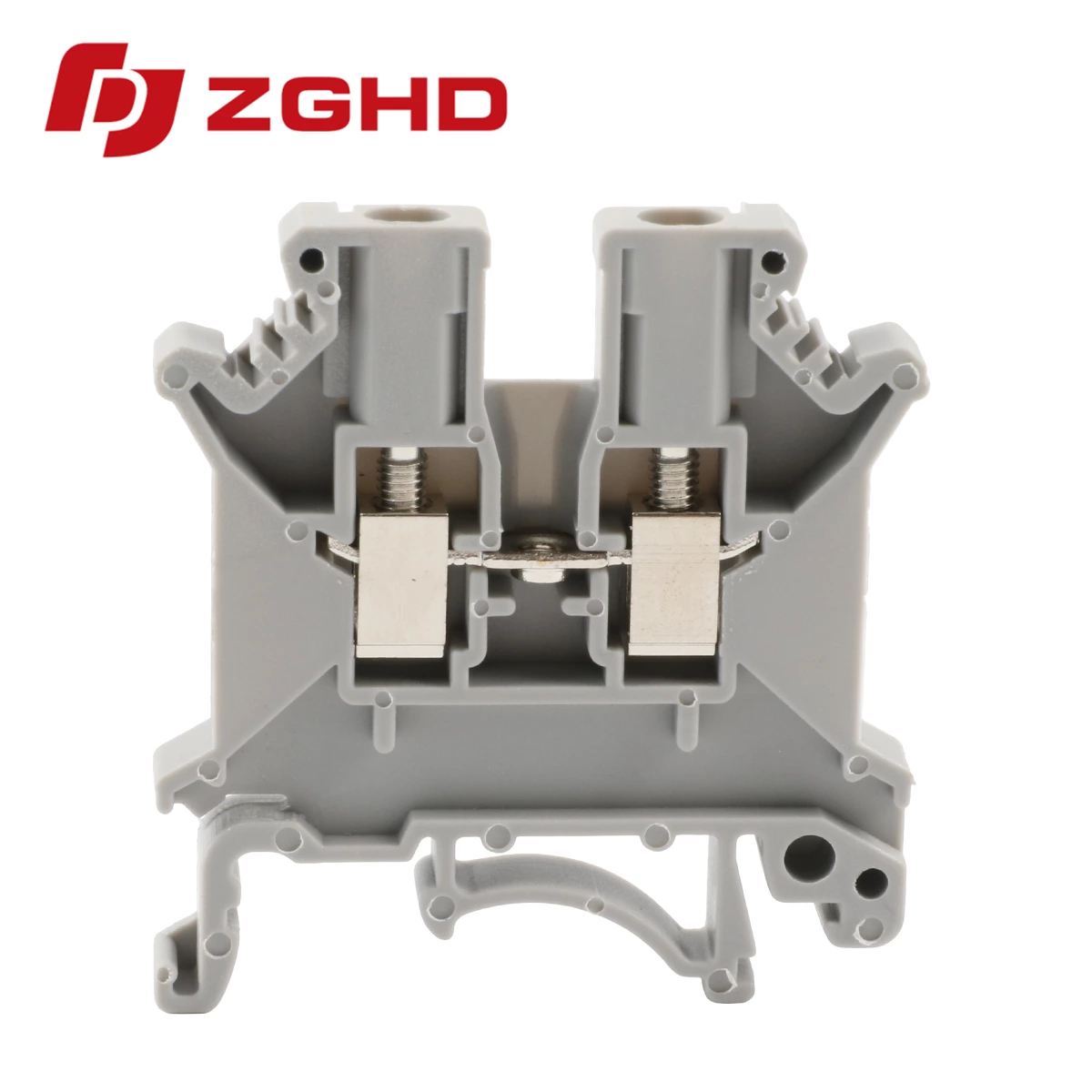

Direct screw clamp design speeds panel assembly.
-
Integrated test points streamline maintenance routines.
-
Dual jumper channels simplify potential distribution across feed through terminals.
Technical Specifications of Hangda JHD5-2.5
| Parameter | Specification |
|---|---|
| Rated Voltage | 800 V |
| Rated Current | 24 A |
| Wire Range | 0.2 - 2.5 mm² |
| Housing Material | PA66 (UL 94 V-0) |
| Mounting Type | DIN Rail TS 35 |
Manufacturing Excellence from Hangda Electric
Hangda Electric enforces strict quality controls across every production batch, ensuring low contact resistance and continuous vibration protection in harsh operating environments. Implementing these feed through terminal blocks guarantees reliable mechanical integrity:
-
Automated stamping creates durable copper alloy conductivity paths.
-
Precision molds prevent rail slippage during transit and operation.
| Model | Function | Wire IEC cross-section | Wire UL | Thickness |
| JHD5-2.5 |  |
2.5 mm² 1.5 mm² 2.5 mm² |
14 AWG 16 AWG 14 AWG |
5.2 mm |
| Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| 24 A | 120 | 5.2/47/42.5 | 800 V/24 A/2.5 mm² |
Specfication:
| End cover | D2.5-10 |
| Cross-connection 10-Polo,Separable | ZL2-2.5 ZL3-2.5 ZL10-2.5 |
| Insertion bridge 10-Polo,Separable | BLS2-2.5 BLS3-2.5 BLS10-2.5 |
| Partition plate | FP |
| Small Partition | CP |
| Marking tags | ZB5 |
| Screw/Tightening torque(Nm) | M3/0.6 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |
| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
