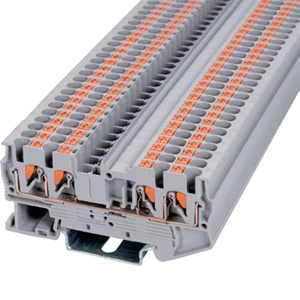

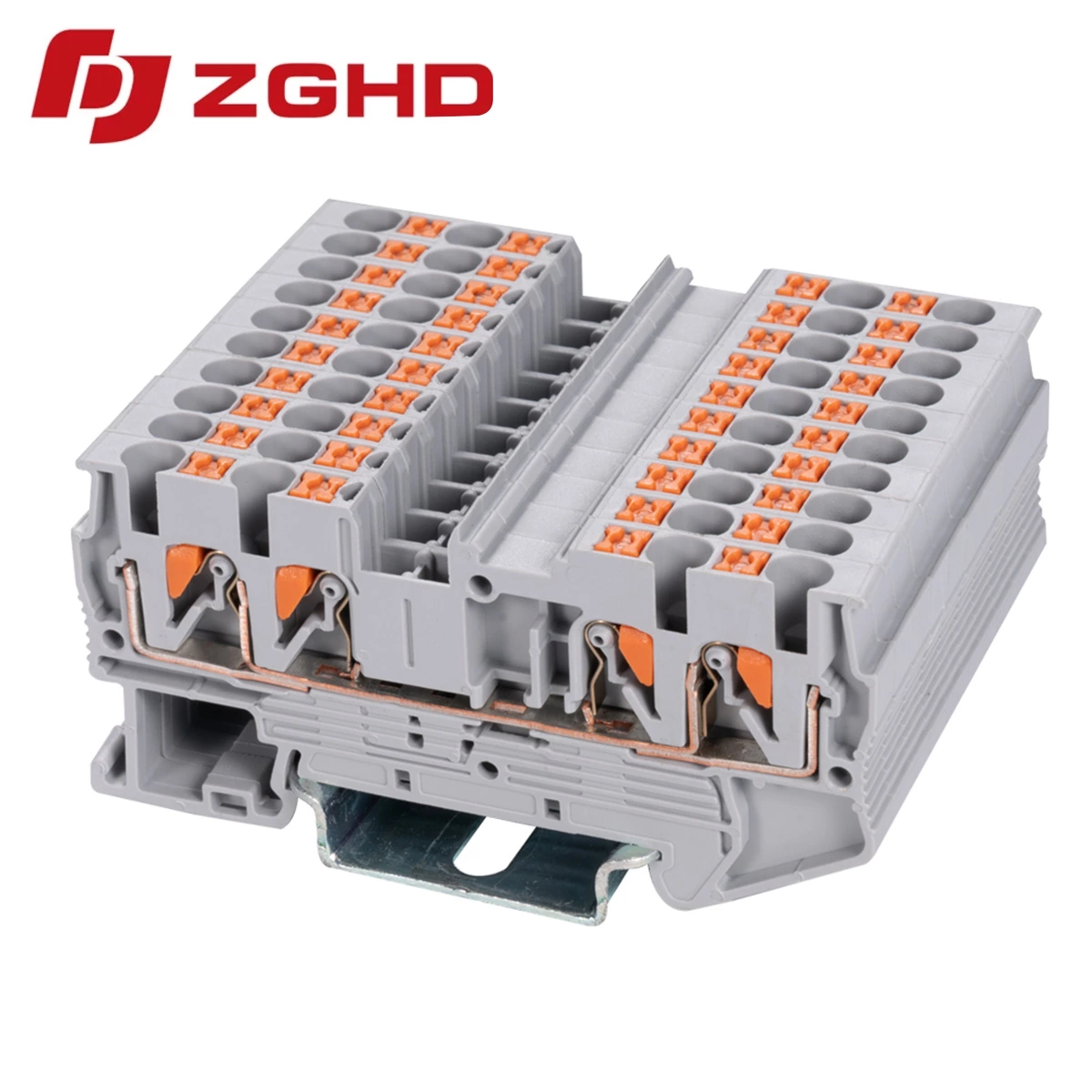

JHD1-2.5/2-2 - Feed-through terminal block
- Type:
- Multi-conductor terminal block
- Nominal Voltage:
- 800 V
- Nominal Current:
- 24 A
- Number Of Connections:
- 4
- Connection Method:
- Push-in connection
- Rated Cross Section:
- 2.5 mm²
- Mounting type:
- DIN Rail (EN 60715)
- Compatible Rail:
- NS 35/7,5, NS 35/15
- Cross Section:
- 0.14 mm² - 4 mm²
- Color:
- gray

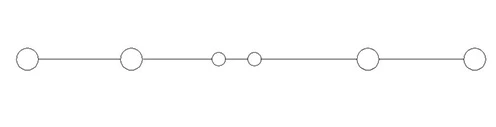

| Wiring Diagram |  |
| Thickness/Witdh/Height | 5.2*72.4*35.5 mm |
| Nominal cross section | 2.5 mm² |
| Rated current | 24 A |
| Rated voltage | 500 V |
| Color | Gray |
| Insulating material | PA66 |
| Flame retardant rating UL-94 | V0 |
| Connection type | Push-in connection |
| The minimum cross section(Rigid wire) | 0.2 mm² |
| The maximum cross section(Rigid wire) | 4 mm² |
| The minimum cross section(Soft wire) | 0.2 mm² |
| The maximum cross section(Soft wire) | 2.5 mm² |
| Cover | JHD1-2.5/2-2G |
| Jumper | FSB 10-5 |
| Marker | ZB5M |

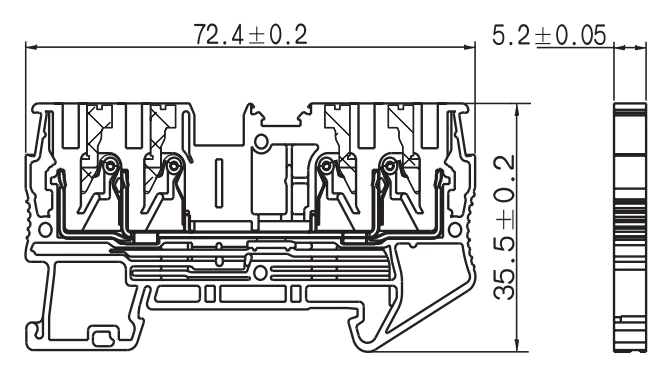

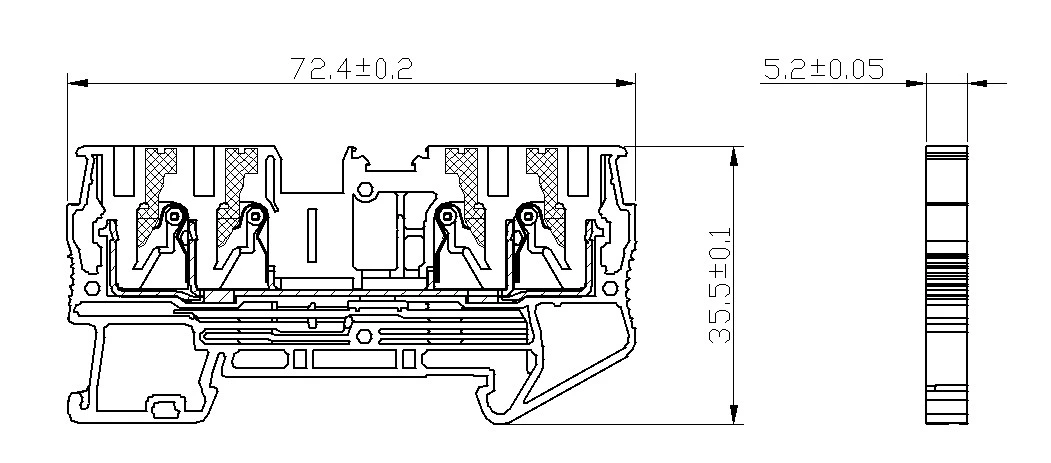

| Dimensions |  |
