LED Fuse Terminal Block Price and Glass Screw Types

Modern control cabinets rely on Fuse Terminal Blocks to deliver compact circuit isolation and overcurrent protection on standard DIN rails.

Industrial Pricing Dynamics

Industrial procurement costs typically fluctuate between $0.45 and $1.50 per unit based on component configurations. When evaluating a fuse terminal block with led indicator price, system builders factor in several commercial aspects:

1. Operating Voltage: Integrated LED circuits for 24V DC, 110V AC, or 230V AC service.

2. Volume Tiers: Direct factory packaging discounts for large-scale control panel manufacturing.

3. Housing Certification: Flame-retardant polyamide PA66 housings meeting UL 94 V-0 standards.

Mechanical Features of Screw and Glass Cartridge Designs

Standard control assemblies favor the screw terminal fuse block because threaded clamps resist mechanical vibration while maintaining gas-tight electrical contact.

Cartridge Flexibility

Selecting a glass fuse terminal block enables instant visual inspection of 5x20 mm or 5x25 mm miniature fuses before line testing. The hinged disconnect lever isolates downstream loads without disconnecting field wiring.

Factory Solution from ZGHD Electric

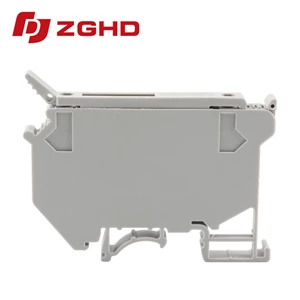

ZGHD Electric manufactures the JHD5-4RD series to address demanding switchgear environments. This fuse type terminal block combines rapid fault location with dependable screw clamp connection technology.

Technical Specifications of JHD5-4RD

Maintenance Steps with JHD5-4RD

1. Identify the illuminated LED indicator across an open-circuit fault.

2. Flip the hinged disconnect carrier to de-energize the fuse socket.

3. Replace the cartridge and snap the lever back into operational position.

Model	Function	Wire IEC cross-section	Wire UL	Thickness
JHD5-4RD		4 mm² 2.5 mm² 4 mm²	12 AWG 14 AWG 12 AWG	8.2 mm

Maximum current	Number of packages	Thickness/Height()/Width mm	Rated voltage/rated current/rated cross-sectior
6.3 A	45	8.2/56.5/72.5	800 V/6.3 A/4 mm²

Specfication:

With Light	With Light  Model Voltage (VAC/DC) Current (mA) JHD5-4RDLED24 15-30 3.5-8.1 JHD5-4RDLA250 110-250 0.5-1.0
	Fuse Model Dimensions Rated voltage Rated current R054 Ф5×20 250/500 0.5-16 R055 Ф5×25 250/500 0.5-20 With Fuse: The current is determined by the fuse,and the voltage is determined by the light.
Marking tags	ZB8
Screw/Tightening torque(Nm)	M3/0.6
Material	PA
Flame retardant rating UL-94	V0
Dimensions

With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
