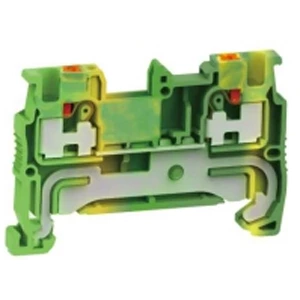

JHD1-1.5JD - Protective conductor terminal
- Type:
- Protective conductor terminal block
- Number Of Connections:
- 2
- Connection Method:
- Push-in connection, 1 level
- Mounting type:
- DIN Rail (EN 60715)
- Compatible Rail:
- NS 35/7,5, NS 35/15
- Cross Section:
- 0.14 mm² - 1.5 mm²
- Color:
- green-yellow
| Overall Dimensions | ||||
| Width / Thickness / Height (mm) | 46.2/3.5/30.5 | |||
| Stripping Length | ||||
| Technical Parameters | ||||
| Voltage (V) | ||||
| Electric current (A) | ||||
| Section (mm²) | 1.5 | |||
| Crimping Range | ||||
| Rigid Wire (mm²) | ||||
| Flexible Wire (mm²) | 0 2-1 5 | |||
| Install the Track | ||||
Can be mounted on  shaped rails. |
 |
TH35-7.5 | ||
| TH35-15 | ||||
| Partition | ||||
| Used for terminating terminal blocks to achieve electrical isolation. |  |
1.5G | ||
| Test Attachment | ||||
| Test Plug: Used in conjunction with the corresponding component for circuit testing. | PS-2 | |||
| Quick-Connect Coupler | ||||
| It can be inserted directly into the center of the terminal to establish a connection between terminals. |  |
2 Bit | FBS 2-3.5 | |
| 3 Bit | FBS 3-3.5 | |||
| 4 Bit | FBS 4-3.5 | |||
| 5 Bit | FBS 5-3.5 | |||
| 10 Bit | FBS 10-3.5 | |||
| 20 Bit | ||||
| 30 Bit | ||||
| Marker Strip | ||||
| The marking strips feature standard horizontal and vertical numbering from 1 to 600; alternatively, numbering can be applied based on technical specifications provided by the customer. | blank |  |
middle | ZB3.5T (blank) |
| Horizontal Typing |  |
ZB3.5T (horizontal) | ||
| Vertical Typing |  |
ZB3.5T (vertical) | ||
 |
Both sides | BFM 3.5T (blank) | ||
| BFM 3.5T (horizontal) | ||||
| BFM 3.5T (vertical) | ||||
| End | ||||
| Tubular Pre-insulated Terminal |  |
E1008 | ||
| Tubular Non-Insulated Terminal |  |
EN1508 | ||
