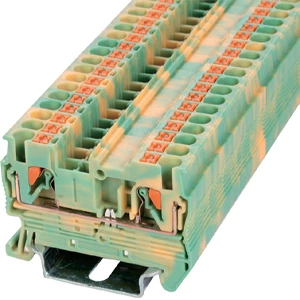

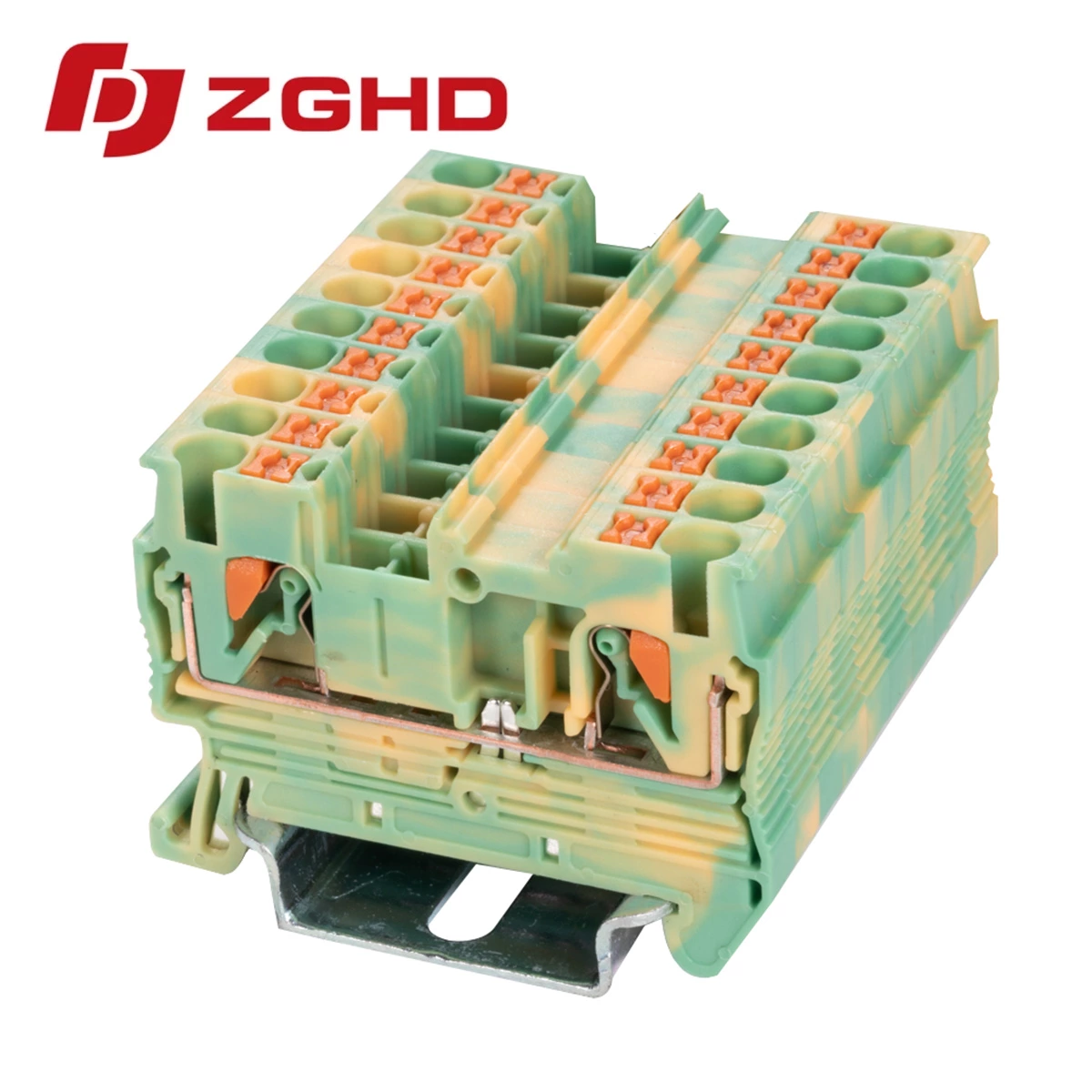

JHD1-2.5JD - Protective conductor terminal
- Type:
- Protective conductor terminal block
- Number Of Connections:
- 2
- Connection Method:
- Push-in connection
- Mounting type:
- DIN Rail (EN 60715)
- Compatible Rail:
- NS 35/7,5, NS 35/15
- Cross Section:
- 0.14 mm² - 4 mm²
- Color:
- green-yellow

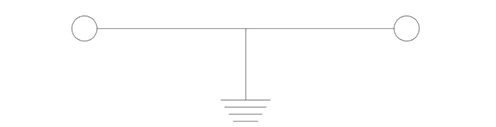

| Wiring Diagram |  |
||
| Thickness / Width / Height (mm) | 5.2×48.8×35.5 | ||
| Technical Parameters | |||
| Rated Data | Voltage (V) | ||
| Current (A) | |||
| Cross-section (mm²) | 2.5 | ||
| Crimping Range | Rigid Wire (mm²) | 0.2-4 | |
| Flexible Wire (mm²) | 0.2-2.5 | ||
| Insulating Material | PA | ||
| Flame retardant rating UL-94 | V0 | ||
| Stripping Length (mm) | 10 | ||
| Install the Guide Rails | TH35-7.5/TH35-15 | ||
| model | |||
| Partition plate | G |  |
|
| Pluggable Connector | |||
| Marker Strip | blank | ZB5(M) |  |
| Horizontal Printing | ZB5(M) |  |
|
| Vertical Printing | ZB5(M) |  |
|

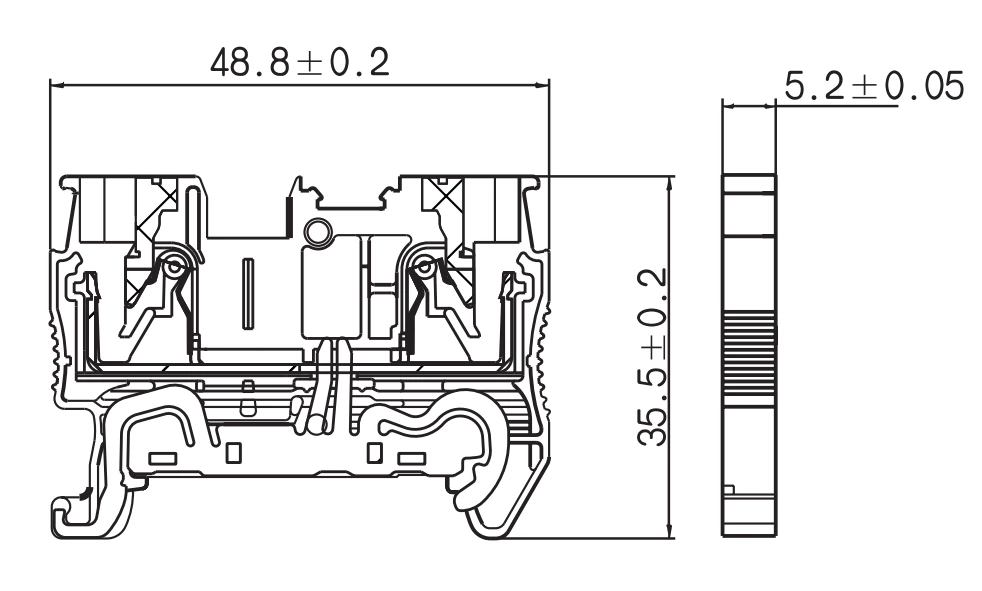

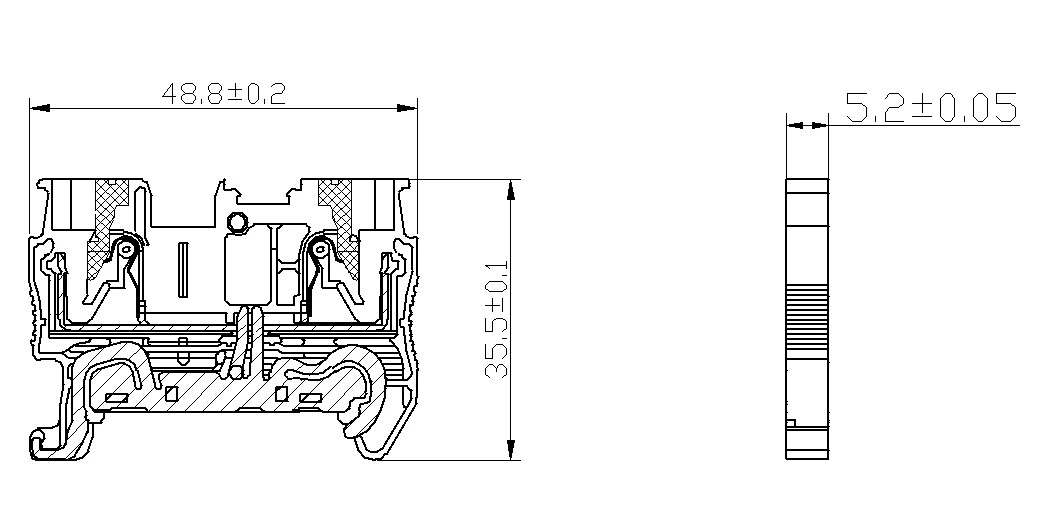

| Dimensions |  |
||
