Cold Shrink Cable Accessories: Lower 20-year Maintenance Cost
Cold shrink cable accessories cost 30–40% more upfront but reduce 20-year ownership cost by 25–40%. They remove heat sources, cut splice failure rates below 0.07%, and extend maintenance intervals beyond 20 years. For 10–35 kV MV terminations and joints, the material premium replaces labor, outages, and rework.
Why Maintenance Demand Stays Low
Material and Sealing
-
A silicone cold shrink tube recovers by elastic memory, holding 0.3–0.8 MPa radial pressure.
-
It resists UV, ozone, and hydrolysis; the surface stays hydrophobic.
-
Silicone grades operate from −55°C to +200°C.
Fewer Installation Variables
-
No flame, heat gun, or hot-work permit.
-
Install time is about one-third of heat shrink.
-
Operator technique matters less.
-
Fire risk is eliminated.
20-Year Cost Breakdown
| Factor | Heat Shrink | Cold Shrink |
|---|---|---|
| Material unit cost | Lower | 30–40% higher |
| Installation labor | Higher | 30–40% lower |
| Preventive maintenance | Higher | 25–40% lower |
| Downtime cost | Moderate–High | Low |
Four savings sources:
-
Labor drops by 30–40%.
-
One emergency repair can exceed $20,000.
-
Preventive maintenance runs 20–40 years.
-
One size often covers multiple cable diameters.
Cold shrink accessories lower total cost of ownership by 25–40% over 20 years.
10–35 kV Kit Specs and Installation

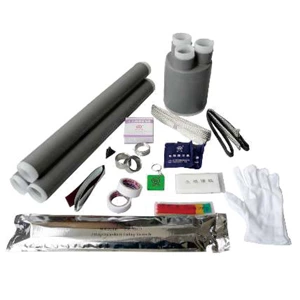

A 10–35 kV cold shrink preparation kit includes sleeves, cores, sealing mastic, and cable preparation tools. It covers conductor sizes from 25 to 630 mm² and meets IEC 60502-4.
Installation steps:
-
Prepare cable and confirm dimensions.
-
Position the silicone shrink tubing and pull the core.
-
Check the seal and interface pressure.
-
Record installation parameters.
A cold shrink grip needs no special tools and installs in one-third the time of heat-shrink equivalents.
Failure Modes and Field Evidence
Over 70% of distribution failures occur at junctions and terminations. Three mechanisms drive most faults:
-
Moisture ingress
-
Thermal cycling
-
Mechanical stress
A cold shrink wrap sleeve expands and contracts with load cycling. Mastic-based seals crack under the same movement. In one underground vault case, a cold shrink termination operated for 15 years without rework. Third-party tests confirm leakage current stays low in wet conditions.
Where It Fits and Where It Does Not
Fit:
-
Confined or hazardous areas
-
Poor maintenance access
-
High-reliability circuits
-
Tight commissioning schedules
Does not fit:
-
Dry indoor, accessible terminations
-
Budget-first projects with planned outages
FAQ
Q: Are cold shrink cable accessories maintenance-free?
A: They are rated maintenance-free for 20+ years in utility service. No re-torquing or mastic re-application is needed.
Q: How long do cold shrink terminations last?
A: Silicone grades operate from −55°C to +200°C with minimal intervention for 20–40 years.
Q: Cold shrink vs heat shrink lifecycle cost?
A: Cold shrink costs 30–40% more upfront but saves 25–40% over 20 years.
Q: What does a 10–35 kV preparation kit include?
A: Sleeves, cores, sealing mastic, instructions, and cable preparation tools for 10–35 kV.
 |
 |
| Cold Shrink Three-Core Sealing Assembly | Cold Shrink Single-Core Sealing Assembly |
Technical Data - Model Selection
| Product Type | Model | Conductor Cross-section(mm²) | Product Type | Model | Conductor Cross-section(mm²) |
| 8.7/15 kV Single-Core Cold Shrink Preparation Parts | GHD-15ZBLS-1*25-50 | 25-50 | 12/20 kV Sing-Core Cold Shrink Preparation Parts | GHD-20ZBLS-1*35-70 | 35-70 |
| GHD-15ZBLS-1*70-120 | 70-120 | GHD-20ZBLS-1*95-150 | 95-150 | ||
| GHD-15ZBLS-1*150-240 | 150-240 | GHD-20ZBLS-1*185-300 | 185-300 | ||
| GHD-15ZBLS-1*300-400 | 300-400 | GHD-20ZBLS-1*400-500 | 400-500 | ||
| 8.7/15 kV Three-Core Cold Shrink Preparation Parts | GHD-15ZBLS-3*10-16 | 25-50 | 12/20 kV Three-Core Cold Shrink Preparation Parts | GHD-20ZBLS-3*35-70 | 35-70 |
| GHD-15ZBLS-3*25-50 | 70-120 | GHD-20ZBLS-3*95-150 | 95-150 | ||
| GHD-15ZBLS-3*70-120 | 150-240 | GHD-20ZBLS-3*185-300 | 185-300 | ||
| GHD-15ZBLS-3*150-240 | 300-400 | GHD-20ZBLS-3*400-500 | 400-500 | ||
| 18/20 kV Single-Core Cold Shrink Preparation Parts | GHD-24ZBLS-1*35-95 | 35-95 | 26/35 kV Single-Core Cold Shrink Preparation Parts | GHD-35ZBLS-1*50-120 | 50-120 |
| GHD-24ZBLS-1*120-185 | 120-185 | GHD-35ZBLS-1*150-240 | 150-240 | ||
| GHD-24ZBLS-1*240-400 | 240-400 | GHD-35ZBLS-1*300-400 | 300-400 | ||
| GHD-24ZBLS-1*500-630 | 500-630 | GHD-35ZBLS-1*500-630 | 500-630 | ||
| 18/20 kV Three-Core Cold Shrink Preparation Parts | GHD-24ZBLS-3*35-95 | 35-95 | 26/35 kV Three -Core Cold Shrink Preparation Parts | GHD-35ZBLS-3*50-120 | 50-120 |
| GHD-24ZBLS-3*120-185 | 120-185 | GHD-35ZBLS-3*150-240 | 150-240 | ||
| GHD-24ZBLS-3*240-400 | 240-400 | GHD-35ZBLS-3*300-400 | 300-400 | ||
| GHD-24ZBLS-3*500-630 | 500-630 | GHD-35ZBLS-3*500-630 | 500-630 |
