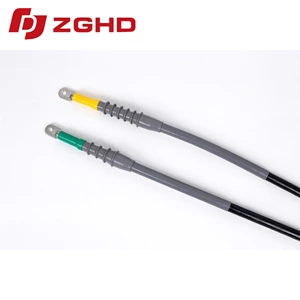

Cold Shrink Cable Accessories Joint Abandonment Kits
- Power Frequency Withstand Voltage:
- 54 kV, 5 min, No Breakdown
- Partial Discharge Test:
- Partial Discharge Magnitude≤ 10 pC at 20 kV
- Impulse Voltage Test:
- 125 kV, 10 positive and 10 negative impulses, no breakdown
- Constant Voltage Load Cycling Test (in Air):
- 35 kV, conductor temperature 95–100 ℃, total 60 cycles, no breakdown, no flashover
- Thermal Stability Test (185 mm² Conductor):
- 23.4 kA, 2 s, twice, no visible damage
- Dynamic Stability Test:
- 82.6 kA, ≥ 10 ms, no visible damage
- Moisture Test (Indoor):
- 15 kV, 300 h, no breakdown, no flashover
- Salt Spray Test (Outdoor):
- 15 kV, 1000 h, no breakdown, no flashover
Reliable Environmental Sealing for Decommissioned Cables
Decommissioning medium-voltage power lines requires complete moisture sealing and electrical insulation. Hangda Electric manufactures specialized cold shrink cable accessories designed for rapid cable isolation in 12/20kV and 18/20kV power distribution networks. Formulated from high-elasticity liquid silicone rubber, these pre-expanded elastomeric sleeves maintain continuous active radial force around severed ends, preventing partial discharge and moisture ingress.
Streamlined Termination Procedures
When field crews temporarily isolate or permanently seal redundant circuits, using a reliable cable abandonment kit eliminates torch open flames in hazardous underground vaults.
-
Pull the internal supporting spiral core to shrink the elastomeric tube over the cable end.
-
Achieve immediate IP68 submersible sealing without heating tools or specialist adhesives.
-
Maintain stable electrical performance across wide thermal variations.
Technical Superiority in Medium-Voltage Applications
Integrating stress control elements into each cold shrink cable joint protects medium-voltage XLPE cables against localized voltage gradients.
Performance Specifications
| Parameter | Value |
|---|---|
| Voltage Class | 12/20 kV, 18/20 kV |
| Material | High-grade Silicone Rubber |
| Standard Compliance | IEC 60502-4 / IEEE 404 |
| Power Frequency Withstand | 54 kV for 5 minutes |
| Partial Discharge Level | ≤ 10 pC at 20 kV |
Selecting a factory-tested cold shrink joint ensures breakdown voltage resistance during grid reconfiguration. Hangda Electric products deliver proven reliability under harsh environmental exposure.
12/20, 18/20 kV Fully Cold Shrink Three-Core Terminal – Installation Outline Drawing
Electrical Performance Tests
| No. | Test Item | Standard Requirements |
| 1 | Power Frequency Withstand Voltage | 54 kV, 5 min, No Breakdown |
| 2 | Partial Discharge Test | Partial Discharge Magnitude≤ 10 pC at 20 kV |
| 3 | Impulse Voltage Test | 125 kV, 10 positive and 10 negative impulses, no breakdown |
| 4 | Constant Voltage Load Cycling Test (in Air) | 35 kV, conductor temperature 95–100 ℃, total 60 cycles, no breakdown, no flashover |
| 5 | Thermal Stability Test (185 mm² Conductor) | 23.4 kA, 2 s, twice, no visible damage |
| 6 | Dynamic Stability Test | 82.6 kA, ≥ 10 ms, no visible damage |
| 7 | Moisture Test (Indoor) | 15 kV, 300 h, no breakdown, no flashover |
| 8 | Salt Spray Test (Outdoor) | 15 kV, 1000 h, no breakdown, no flashover |
Product overview
◆The product is available in single-core, two-core, three-core, four-core, and five-core versions, and has been widely used for low-voltage cable terminations and intermediate connections.
◆Excellent surface hydrophobicity, ensuring the product maintains strong resistance to contamination.
◆Compact size, lightweight, and reliable performance.
◆Application Scope: The product demonstrates excellent cold and heat resistance, making it particularly suitable for high-altitude, cold, humid, salt-spray, and heavily polluted environments.
Installation requires no open flame, making it ideal for flammable and explosive areas such as petroleum, chemical, mining, and tunneling sites.
 |
 |
 |
 |
| 12/20 kV Single-Core Cold Shrink Indoor Termination – Installation Drawing | 12/20 kV Three-Core Cold Shrink Outdoor Termination – Installation Drawing | 12/20 kV Three-Core Cold Shrink Outdoor Termination – Supporting Drawing | 12/20 kV Three-Core Cold Shrink Intermediate Connection – Supporting Drawing |
Technical Data - Model Selection
| Product Type | Model | Conductor Cross-section(mm²) |
| 12/20 kV Cold Shrink Indoor Termination | GHD-20HNLS-3(1)*35-500 | 35-500 |
| 12/20 kV Cold Shrink Outdoor Termination | GHD-20HWLS-3(1)*35-500 | 35-500 |
| 12/20 kV Cold Shrink Joint | GHD-20JTLS-3(1)*35-500 | 35-500 |
| 18/20 kV Cold Shrink Indoor Terminationl | GHD-24HNLS-3(1)*35-630 | 35-630 |
| 18/20 kV Cold Shrink Outdoor Termination | GHD-24HWLS-3(1)*35-630 | 35-630 |
| 18/20 kV Cold Shrink Joint | GHD-24JTLS-3(1)*35-630 | 35-630 |
