Cold Shrink Cable End Caps Jointing Kit Tube Price
- Power Frequency Withstand Voltage:
- 117 kV, 5 min, No Breakdown
- Partial Discharge Test:
- Partial Discharge Magnitude≤ 10 pC at 45 kV
- Impulse Voltage Test:
- 200 kV, 10 positive and 10 negative impulses, no breakdown
- Constant Voltage Load Cycling Test (in Air):
- 65 kV, conductor temperature 95–100 ℃, total 60 cycles, no breakdown, no flashover
- Moisture Test (Indoor):
- 32.5 kV, 300 h, no breakdown, no flashover
- Salt Spray Test (Outdoor):
- 32.5 kV, 1000 h, no breakdown, no flashover
- DC Withstand Voltage:
- 104 kV, 15 min, No Breakdown
High-Voltage Electrical Insulation Solutions
High-voltage electrical networks demand resilient sealing components to prevent moisture ingress and flashovers. Hangda Electric manufactures Cold Shrink Cable Accessories engineered for 26-35kV distribution networks. Installing a modern cold shrink cable system eliminates heat torches, reducing fire hazards and installation errors in challenging field environments.
Product Performance and Technical Specifications
Mechanical and Environmental Sealing
Hangda silicone rubber formulations maintain constant radial compression across fluctuating conductor temperatures. The active elasticity provides continuous weatherproofing for exposed terminals.
-
High Dielectric Strength: Withstands electrical stress exceeding 25 kV/mm without breakdown.
-
Hydrophobic Surface: Prevents conductive leakage paths forming in damp underground vaults.
-
Durable Protection: Heavy-duty cold shrink cable end caps seal abandoned wire ends against grit and water infiltration.
Technical Parameters
| Parameter | Specification |
|---|---|
| Operating Voltage | 26/35 kV |
| Insulation Material | Liquid Silicone Rubber |
| Dielectric Strength | ≥ 25 kV/mm |
| Tensile Strength | ≥ 10.5 MPa |
| Protection Rating | IP68 |
Sourcing and Cost Considerations
Installation Versatility

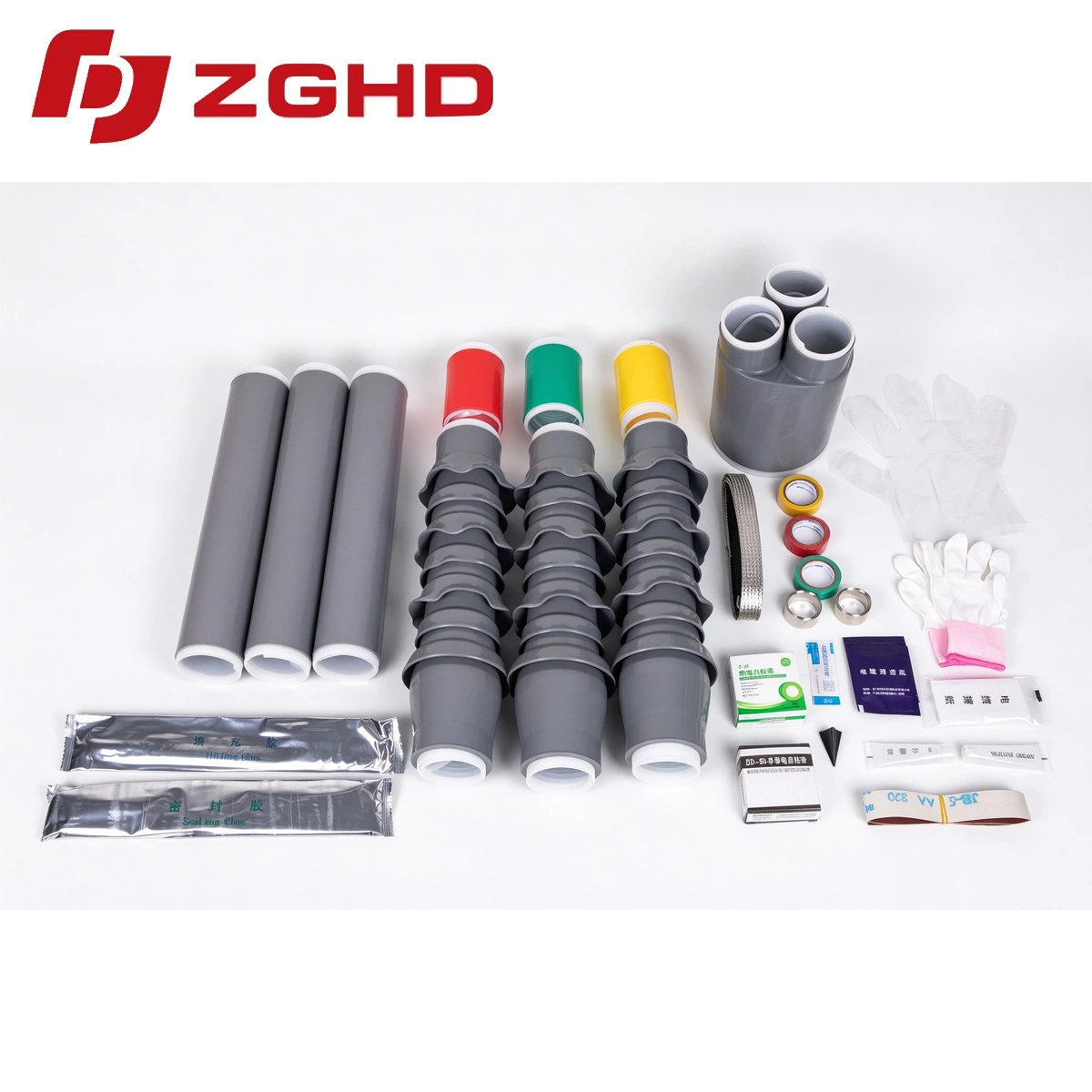

Each full-set cold shrink cable jointing kit contains pre-stretched elastomeric sleeves mounted on removable plastic cores. Pulling the internal core allows instant radial shrinkage without specialized thermal tools.
-
Fast Deployment: Slashes field labor time per junction.
-
Consistent Quality: Uniform wall thickness guarantees reliable electric field distribution.
Commercial Value
Evaluating the cold shrink tube price involves assessing material longevity, reduced maintenance downtime, and direct factory pricing from Hangda Electric.
26/35 kV Fully Cold Shrink Three-Core Terminal – Installation Outline Drawing
Electrical Performance Tests
| No. | Test Item | Standard Requirements |
| 1 | Power Frequency Withstand Voltage | 117 kV, 5 min, No Breakdown |
| 2 | DC Withstand Voltage | 104 kV, 15 min, No Breakdown |
| 3 | Partial Discharge Test | Partial Discharge Magnitude≤ 10 pC at 45 kV |
| 4 | Impulse Voltage Test | 200 kV, 10 positive and 10 negative impulses, no breakdown |
| 5 | Constant Voltage Load Cycling Test (in Air) | 65 kV, conductor temperature 95–100 ℃, total 60 cycles, no breakdown, no flashover |
| 6 | Moisture Test (Indoor) | 32.5 kV, 300 h, no breakdown, no flashover |
| 7 | Salt Spray Test (Outdoor) | 32.5 kV, 1000 h, no breakdown, no flashover |
Product overview
◆The product is available in single-core, two-core, three-core, four-core, and five-core versions, and has been widely used for low-voltage cable terminations and intermediate connections.
◆Excellent surface hydrophobicity, ensuring the product maintains strong resistance to contamination.
◆Compact size, lightweight, and reliable performance.
◆Application Scope: The product demonstrates excellent cold and heat resistance, making it particularly suitable for high-altitude, cold, humid, salt-spray, and heavily polluted environments.
Installation requires no open flame, making it ideal for flammable and explosive areas such as petroleum, chemical, mining, and tunneling sites.
 |
 |
 |
 |
| 26/35 kV Single-Core Cold Shrink Outdoor Termination – Installation Drawing | 26/35 kV Three-Core Cold Shrink Outdoor Termination – Installation Drawing | 26/35 kV Three-Core Cold Shrink Outdoor Termination – Supporting Drawing | 26/35 kV Three-Core Cold Shrink Intermediate Connection – Supporting Drawing |
Technical Data - Model Selection
| Product Type | Model | Conductor Cross-section(mm²) |
| 26/35 kV Cold Shrink Indoor Termination | GHD-35HNLS-3(1)*50-630 | 50-630 |

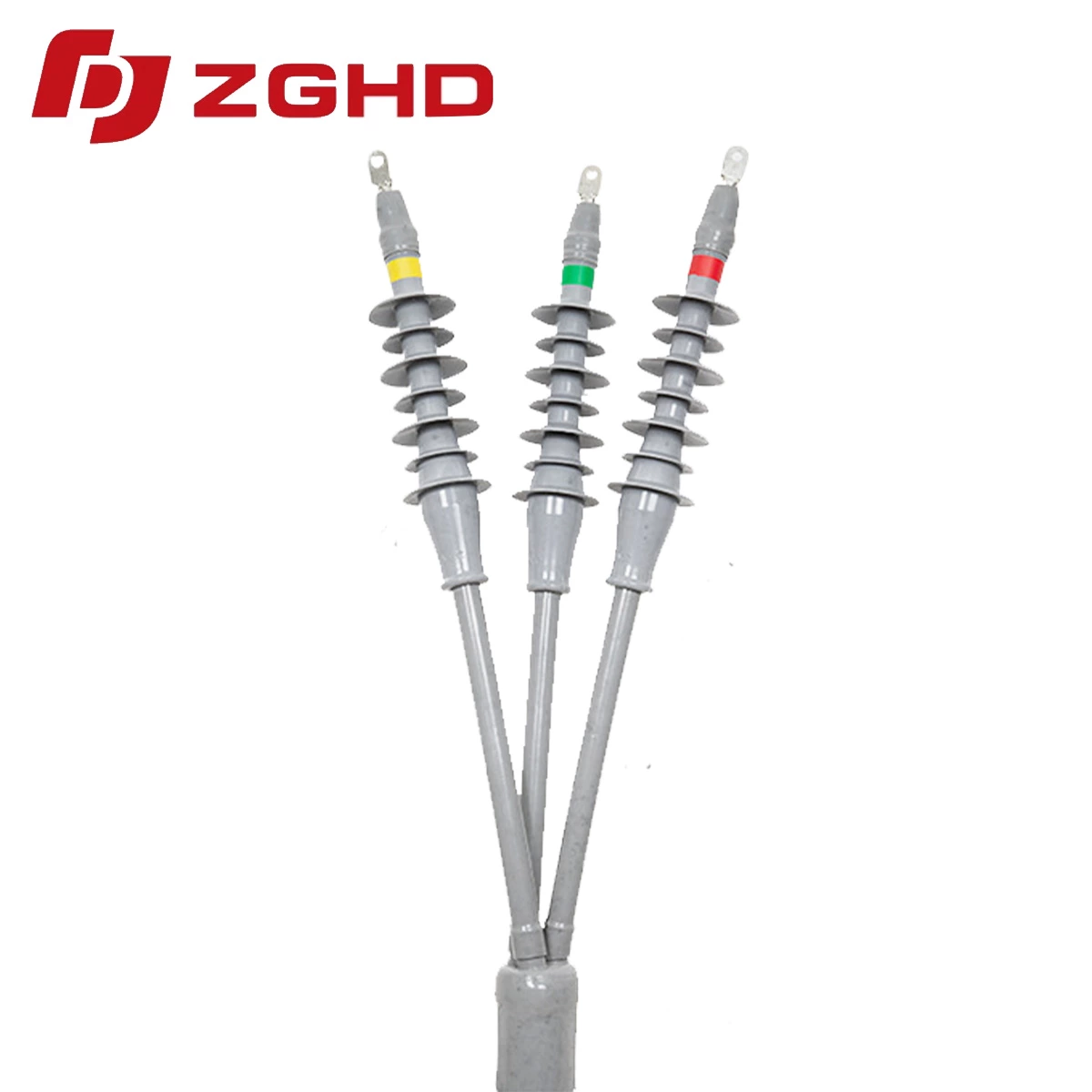

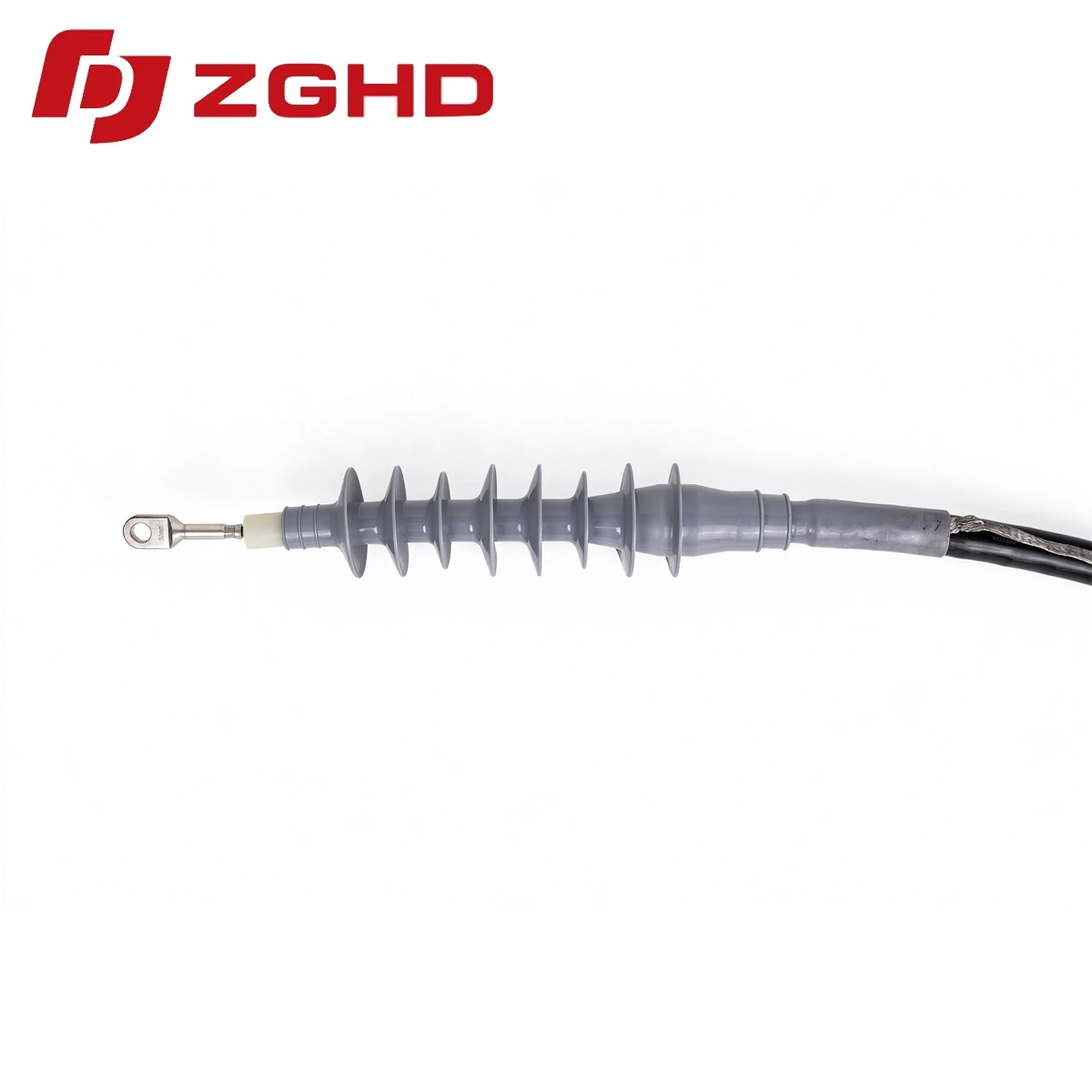

| 26/35 kV Cold Shrink Outdoor Termination | GHD-35HWLS-3(1)*50-630 | 50-630 |

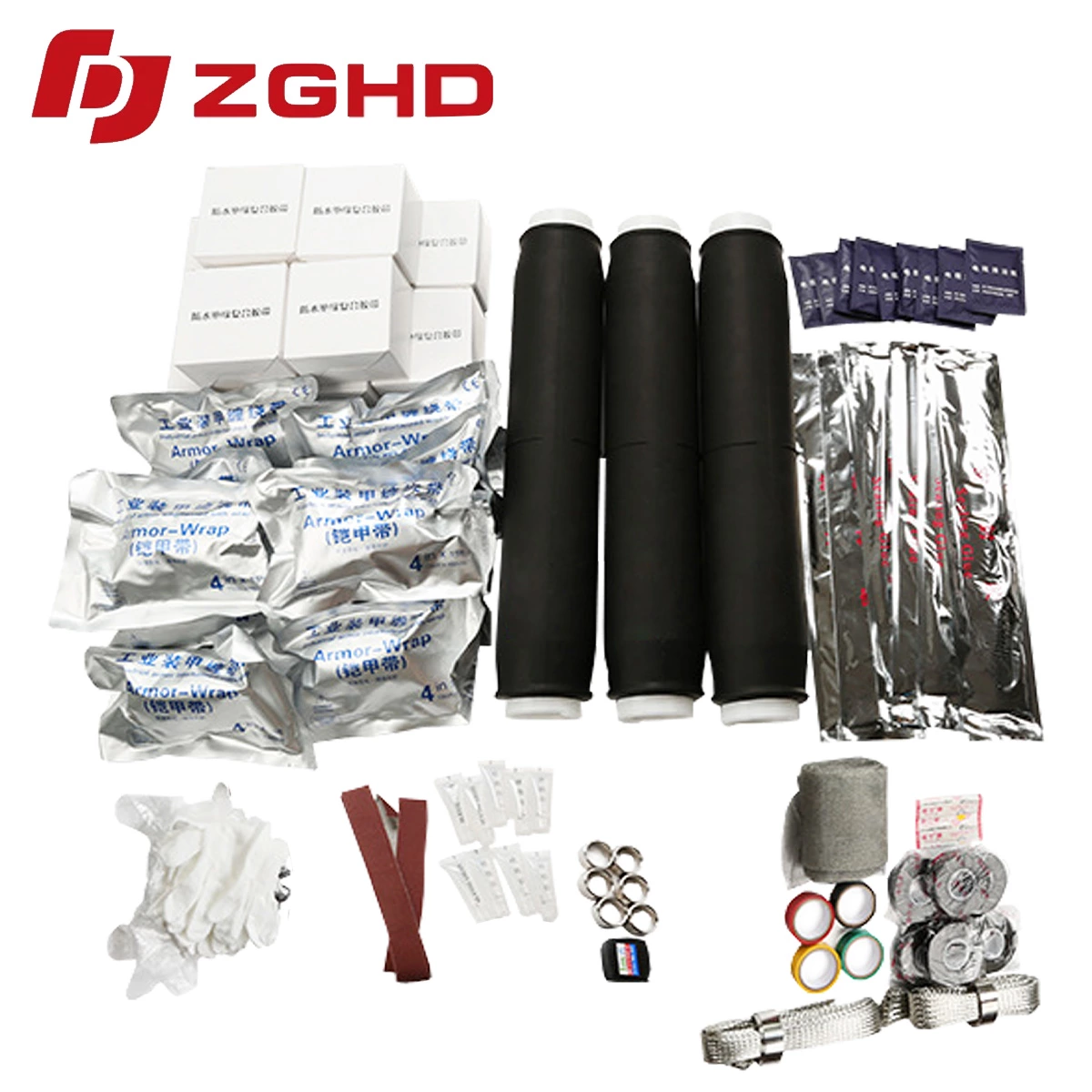

| 26/35 kV Cold shrink Joint | GHD-35JTLS-3(1)*50-630 | 50-630 |
