Push In Type Terminal Blocks for DIN Rail Push Fit Wiring

Traditional control cabinet wiring requires time-consuming screw tightening and frequent torque verification. Push-In Type Terminal Blocks streamline electrical installations through direct wire insertion. Designed for standard TS 35 mounting rails, these components feature stainless steel leg springs that secure solid conductors or ferruled stranded wires without tools. Hangda manufactures high-density feed-through connection systems that lower labor overhead and eliminate connection loosening under industrial vibration.

Technical Features of Push Fit Terminal Systems

Modern automated switchgear demands compact connection footprints and fast maintenance turnarounds. Integrating a push fit terminal into modular distribution panels accelerates field wiring while providing high contact force.

1. Direct Tool-Free Wiring: Solid conductors slide straight into the clamping cavity, locking immediately with low insertion force.

2. Vibration-Proof Contact: Stainless spring steel maintains continuous clamping pressure, preventing thermal expansion looseness.

3. High Wiring Density: Double-level configurations double connection capacity within standard cabinet widths.

Industry Specifications

Application Advantages in Industrial Cabinets

Deploying push in din rail terminal blocks in power distribution units ensures reliable current routing across harsh factory environments. Each push fit connector block features integrated testing points for multi-meter probes, simplifying diagnostic troubleshooting during commissioning.

1. Enhanced Electrical Safety: Touch-proof PA66 housing shields operators from live conductors.

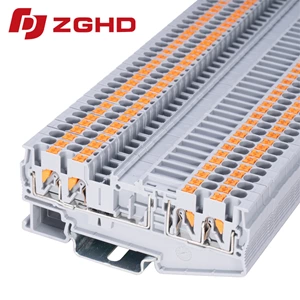

2. Integrated Circuit Protection: Selected models, such as the Hangda ST2-2.5-2X2RD Fuse Modular Terminal Block, incorporate fuse carriers to isolate overcurrent faults instantly.

For complex control circuits requiring dual-channel branching, utilizing a push in wire terminal block reduces cabinet assembly time 50 percent versus screw designs. Hangda delivers certified push in type terminal blocks tested under rigorous shock protocols to ensure uninterrupted operational safety.

Overall Dimensions
Width / Thickness / Height (mm)			59/6.2/63.5
Stripping Length			13
Technical Parameters
Voltage (V)			500
Electric current (A)			6.3
Section (mm²)			4
Crimping Range
Rigid Wire (mm²)			0.2-6
Flexible Wire (mm²)			0.2-4
Fusible Core			R054 Ф 5*20
Install the Track
Can be mounted on shaped rails.			TH35-7.5
			TH35-15
Partition
Used for terminating terminal blocks to achieve electrical isolation.			4RDG
Test Attachment
Test Plug: Used in conjunction with the corresponding component for circuit testing.			PS-2
Quick-Connect Coupler
It can be inserted directly into the center of the terminal to establish a connection between terminals.		2 Bit	FBS 2-6
		3 Bit	FBS 3-6
		4 Bit	FBS 4-6
		5 Bit	FBS 5-6
		10 Bit	FBS 10-6
		20 Bit
		30 Bit
Marker Strip
The marking strips feature standard horizontal and vertical numbering from 1 to 600; alternatively, numbering can be applied based on technical specifications provided by the customer.	blank		middle	ZB 6 (blank)
	Horizontal Typing			ZB 6 (horizontal)
	Vertical Typing			ZB 6 (vertical)
			Both sides	BFM 6 (blank)
				BFM 6 (horizontal)
				BFM 6 (vertical)
Marking Bracket
For detailed instructions on usage, please refer to the attached section.
End
Tubular Pre-insulated Terminal			E4010
Tubular Non-Insulated Terminal
